1010..44 VIPVIP
VIP (Video Inspection Probe) application allows you to view the edge surface of an
optical fiber by using the optional accessory Video Inspection Probe. The captured
image and analysis results can be saved to files.
1010..44..11 Application ToolbarApplication Toolbar

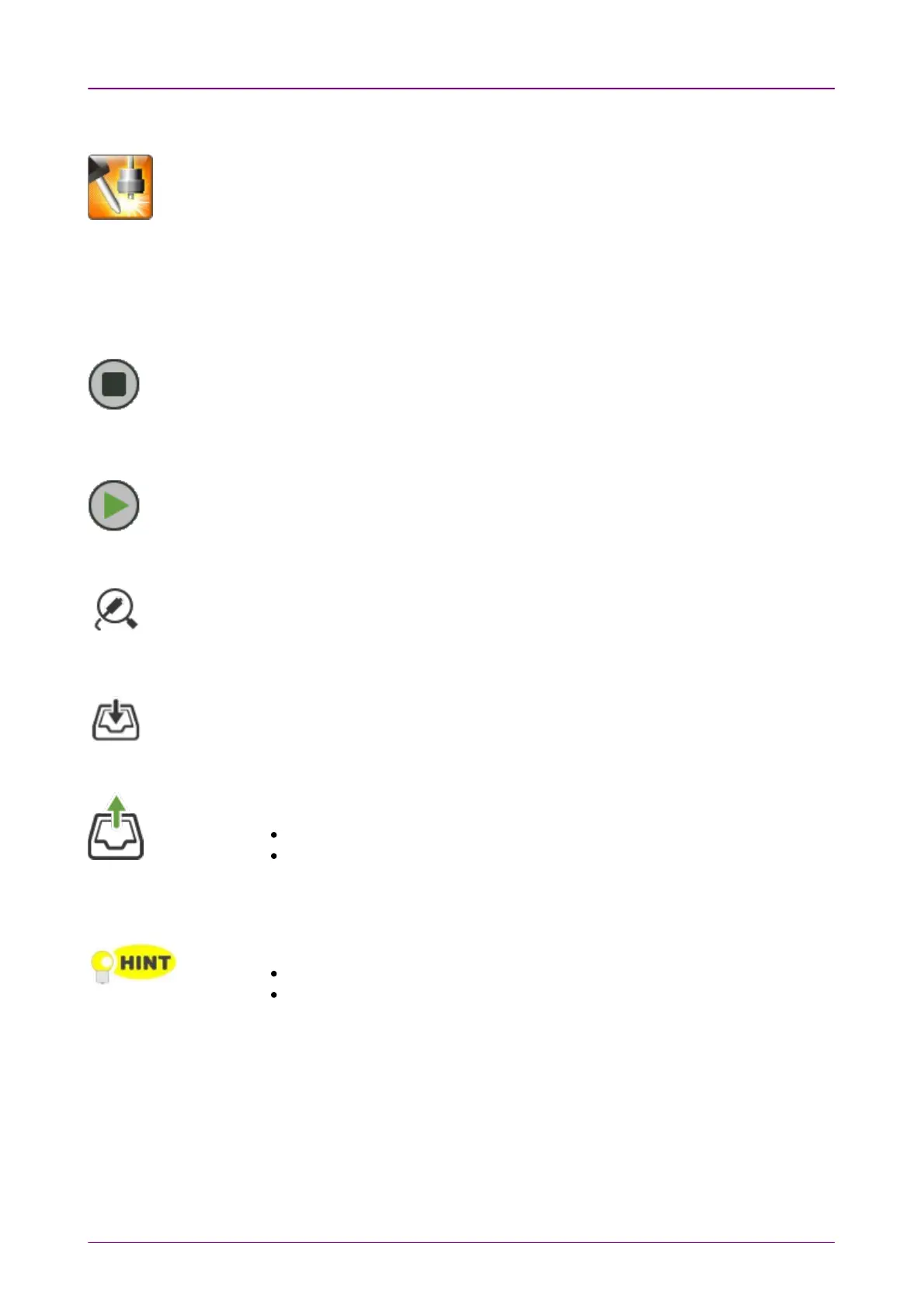

Icons for VIP use appear on Application Toolbar.
CaptureCapture
Touch the CaptureCapture icon to capture the current displaying image. When Auto FocusAuto Focus is
selected in Setup screen, touching this icon performs autofocus and capturing the
image.
Press for Live imagePress for Live image
Touch the Press for Live imagePress for Live image icon to display the live image on the screen.
Analyze ImageAnalyze Image
Touch the Analyze ImageAnalyze Image icon to start analyzing the captured image.
SaveSave
Touch the SaveSave icon to save the image and analysis results to files.
LoadLoad
Touch the LoadLoad icon to load a following file.
Image file (*.png)
Analysis result file (*.vipi)
Only Load SaveLoad Save icon appears on the Expanded Application toolbar.
The VIP images and analysis results can be loaded by touching the icon.
The analysis result file (extension vipi) is compatible with following models.
MT9083 Series Access Master
MU909014x, MU909015x μOTDR Module
1010..44..22 Connecting the Video Inspection ProbeConnecting the Video Inspection Probe
Connect the USB connector of the Video Inspection Probe to Network Master.
