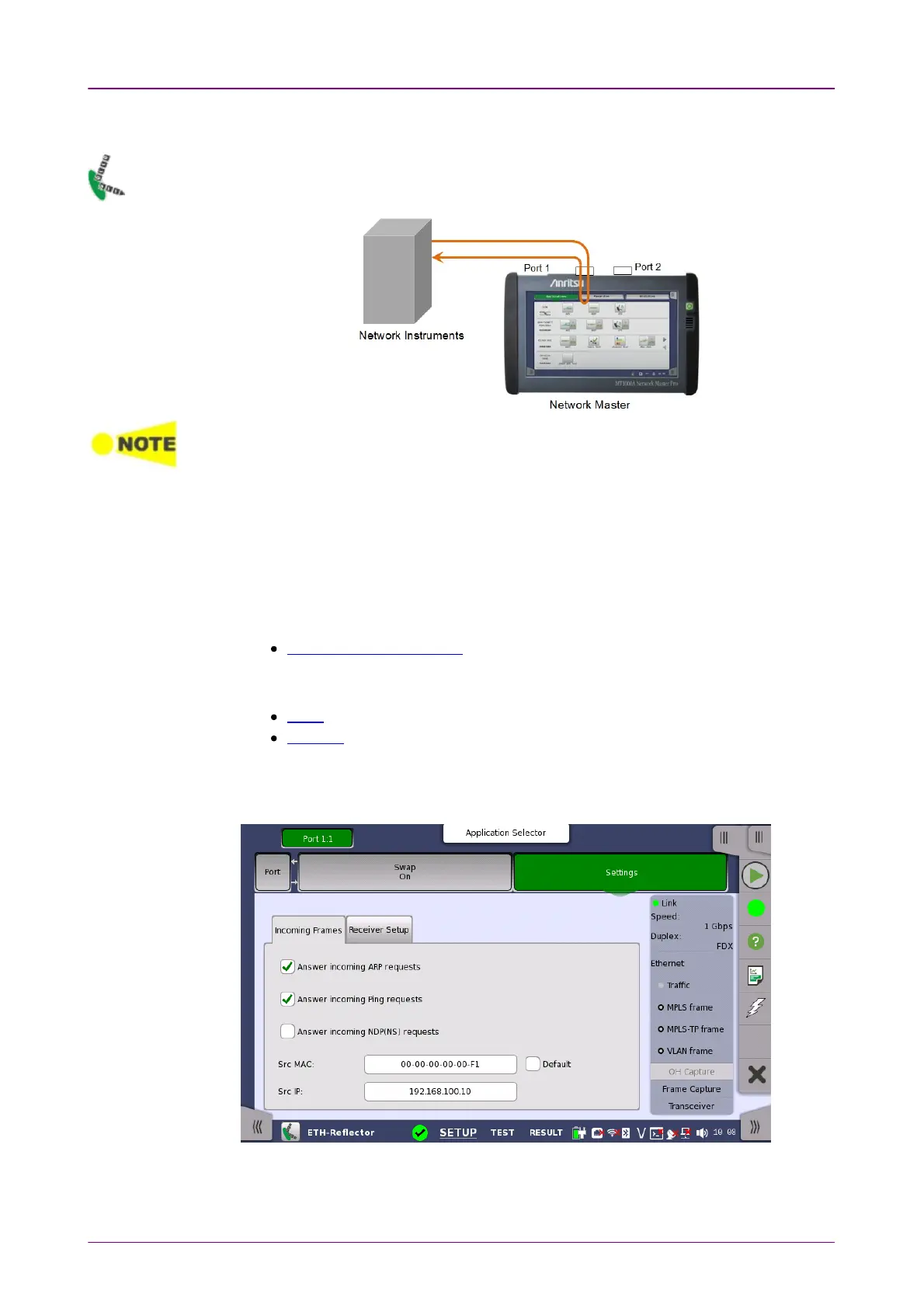

66..88 ReflectorReflector
In
Ethernet Reflector
mode the Network Master loops incoming traffic on a port
swapping MAC and/or IP addresses.
HDX (Half Duplex) is not possible in 'Reflector' mode.
Multicast or Broadcast frame are not reflected in 'Reflector' mode.
66..88..11 Ports Setup and StatusPorts Setup and Status
The first step in running an application is to set up the port interfaces. This is
done on the Ports SetupPorts Setup screen, which also provides port status information.
The setup options and status information related to the Ethernet interface are
described in a separate section:
Ethernet Setup and Status
In Ethernet Setup for Reflector mode, two buttons appear in Navigation area.
Swap
Settings
Only "Incoming Frames" tab and "Receiver Setup" tab appear.
Incoming Frames tab is different from that in other applications.
In Src MACSrc MAC and Src IPSrc IP, set the source MAC address and the source IP address
of ARP request and Ping request.
