Statistics CategoryStatistics Category
TransportTransport
PatternPattern
Pattern Error InsertionPattern Error Insertion
Refer to Thresholds of BERT section in "SDH/SONET/PDH/DSn Applications".
88..22..33 Test ResultsTest Results
88..22..33..11 SummarySummary

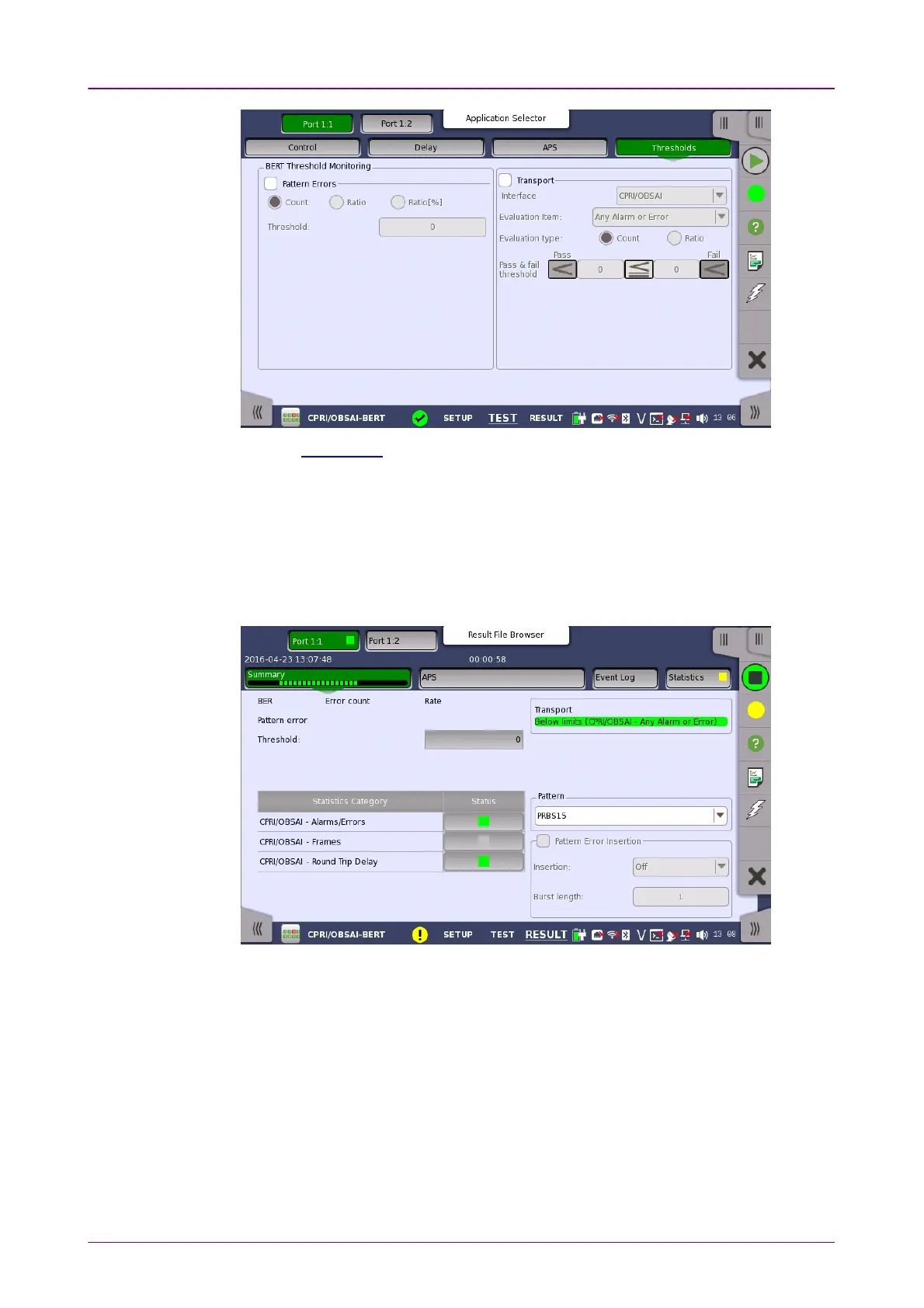

When you go to the test results of the CPRI/OBSAI BERT application, the
following screen is displayed.
This screen contains a summary of OTN/CPRI/OBSAI BERT results.
The lamp icon in Status column shows the Pass or Fail results for each
category. Touching the Status column displays the statistics results.
Displays the results of Transport test. This result appears if 'Transport' check
box is selected in the Test Setup screen.
Select the pattern.
Select the check box to enable the pattern error insertion.
InsertionInsertion
Select the timing of the error insertion from the drop-down menu.
