Statistics CategoryStatistics Category
TransportTransport
PatternPattern
Pattern Error InsertionPattern Error Insertion
InterfaceInterface
Select the item to evaluate from OTNOTN, SDHSDH, SONETSONET, E4E4, E3E3, E1E1, DS3DS3 or
DS1/J1DS1/J1.
Evaluation itemEvaluation item
Select the item to evaluate. If selecting other than Any Alarm or ErrorAny Alarm or Error, another
menu appears.
Evaluation typeEvaluation type
Select the relevant type.
Pass & fail thresholdPass & fail threshold
Touch the left-hand number to set the lower limit for "Warning". Touch the
right-hand number to set the lower limit for "Fail". The lower limit of "Fail"
must be equal to or greater than the lower limit of "Warning" (defining a
"Within limits" range in between them).
55..99..33 Test ResultsTest Results
55..99..33..11 SummarySummary

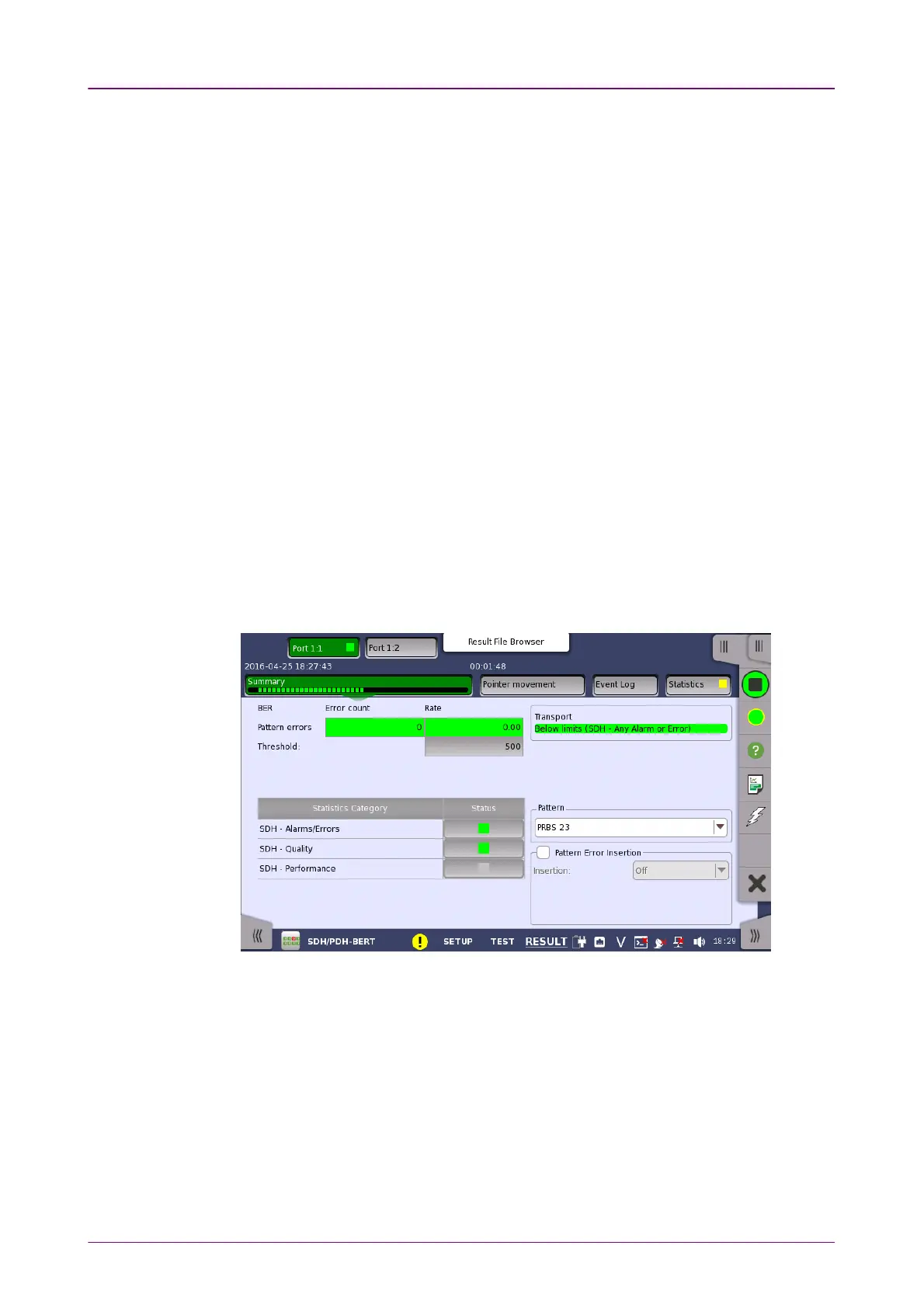

When you go to the test results of the SDH/SONET/PDH/DSn BERT
application, the following screen is displayed.
This screen contains a summary of OTN/SDH/SONET/PDH/DSn BERT
results.
The lamp icon in Status column shows the Pass or Fail results for each
category. Touching the Status column displays the statistics results.
Displays the results of Transport test. This result appears if 'Transport' check
box is selected in the Test Setup screen.
Select the pattern.
Select the check box to enable the pattern error insertion.
To Next Page
