Physical StatusPhysical Status
Alarm/Error StatusAlarm/Error Status
55..55..33 Status InformationStatus Information
This section describes the status information available for the E3 layer in the
status area of the Ports SetupPorts Setup screen.
55..55..33..11 Status SummaryStatus Summary
The status summary displayed for the E3 layer consists of the following
information:
The topmost part of the status area gives you access to information about the
current physical status of the selected interface. A summary consisting of the
most relevant status indicators is displayed constantly. By touching the
summary, you can launch a display that contains the detailed status
information.
The middle part of the status area gives you access to alarm and error
information for the selected interface. The current status is indicated by the
lamp color.
A summary consisting of the most relevant alarm/error indications is displayed
constantly. By touching the summary, you can launch a display that contains
all alarms/errors.
55..55..33..22 Physical DetailsPhysical Details
Refer to Physical Details in "E1 Setup and Status". The nominal bit rate of E3 is
34 368 000 bps.
55..55..33..33 Alarms and ErrorsAlarms and Errors

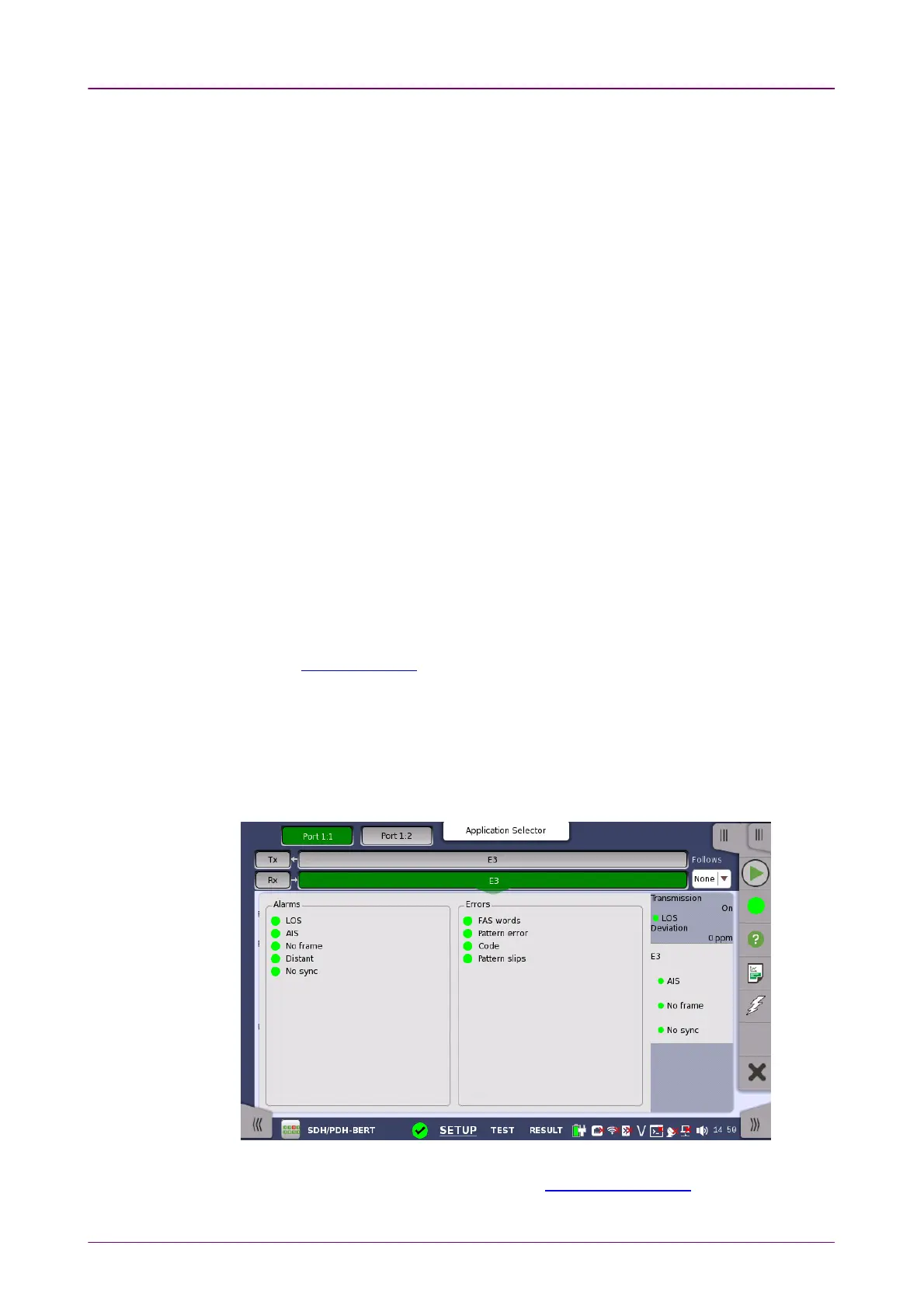

Touching the middle summary box in the status area of the Ports SetupPorts Setup screen
displays the status shown below.
This screen contains detailed alarm and error information related to the E3
interface. Status is indicated by the use of colored Lamp icons.
