66..66..33 Test ResultsTest Results
66..66..33..11 SummarySummary

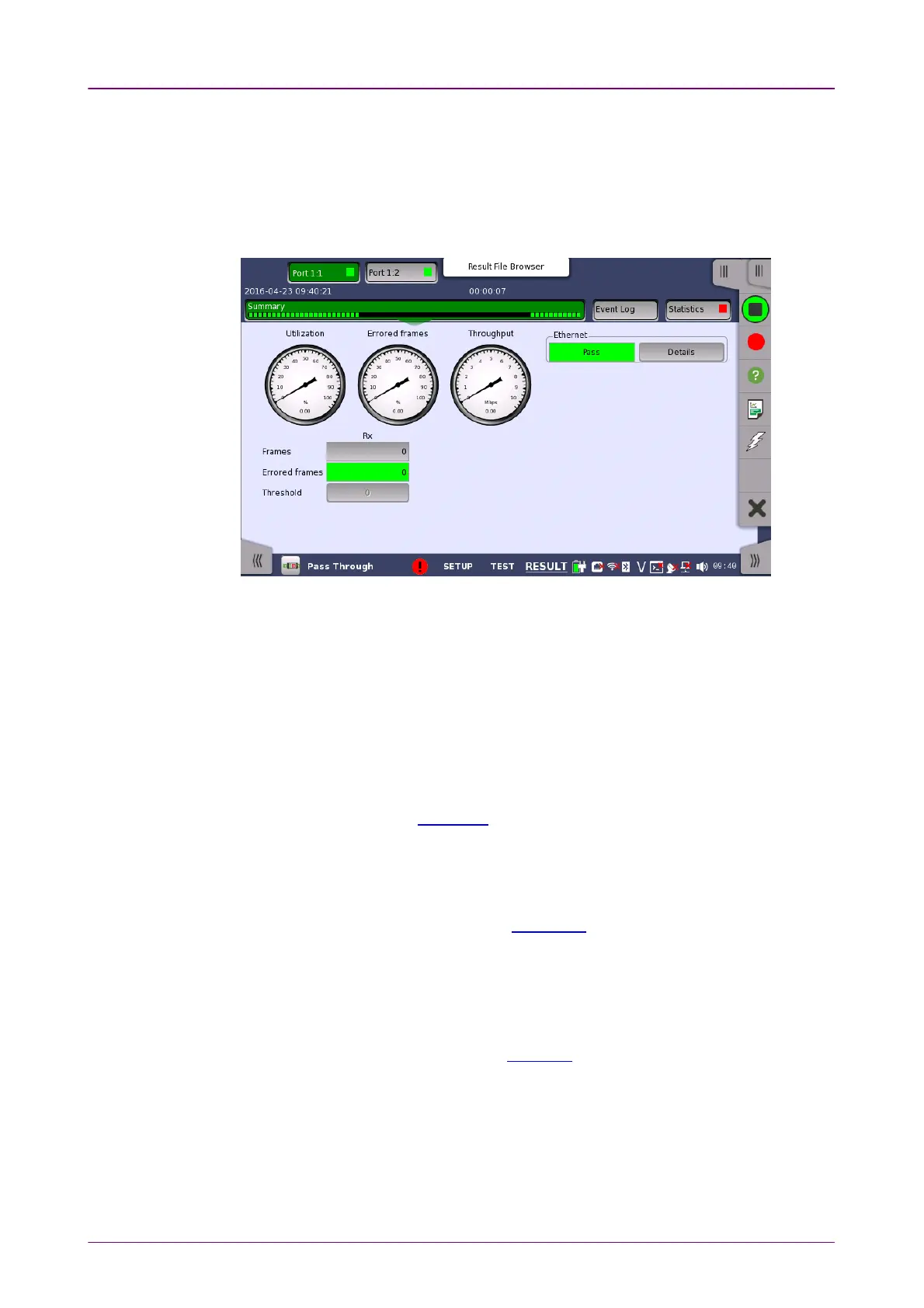

When you go to the test results of the Ethernet Pass Through application, the
following screen is displayed.
This screen contains a summary of the results of the Ethernet Pass Through
test. The information includes such things as number of errored frames and
number of exceeded thresholds.
The three dials showing utilization/throughput results, pattern errors and
errored frames can be enlarged by touching on them. The black needle points
the measured value in the latest period.
When EthernetEthernet is selected on 'Threshold' of Test Setup screen, the EthernetEthernet
information appears in the upper right-hand corner, shows pass/fail status
summary. Touching the DetailsDetails button allows you to inspect the individual
pass/fail status. Refer to Summary in BERT section.
66..66..33..22 Event LogEvent Log
Touching the Event LogEvent Log button in the navigation area displays the screen
providing the event log data. Refer to Event Log of SDH/SONET/PDH/DSn
BERT application.
66..66..33..33 StatisticsStatistics
Touching the StatisticsStatistics button in the navigation area displays the screen
providing the statistics data. Refer to Statistics of BERT for the operation.
