55..77..22 Receiver SetupReceiver Setup
55..77..22..11 Physical SetupPhysical Setup
When the receiver is set up with only an E4 interface, selecting the RxRx button in

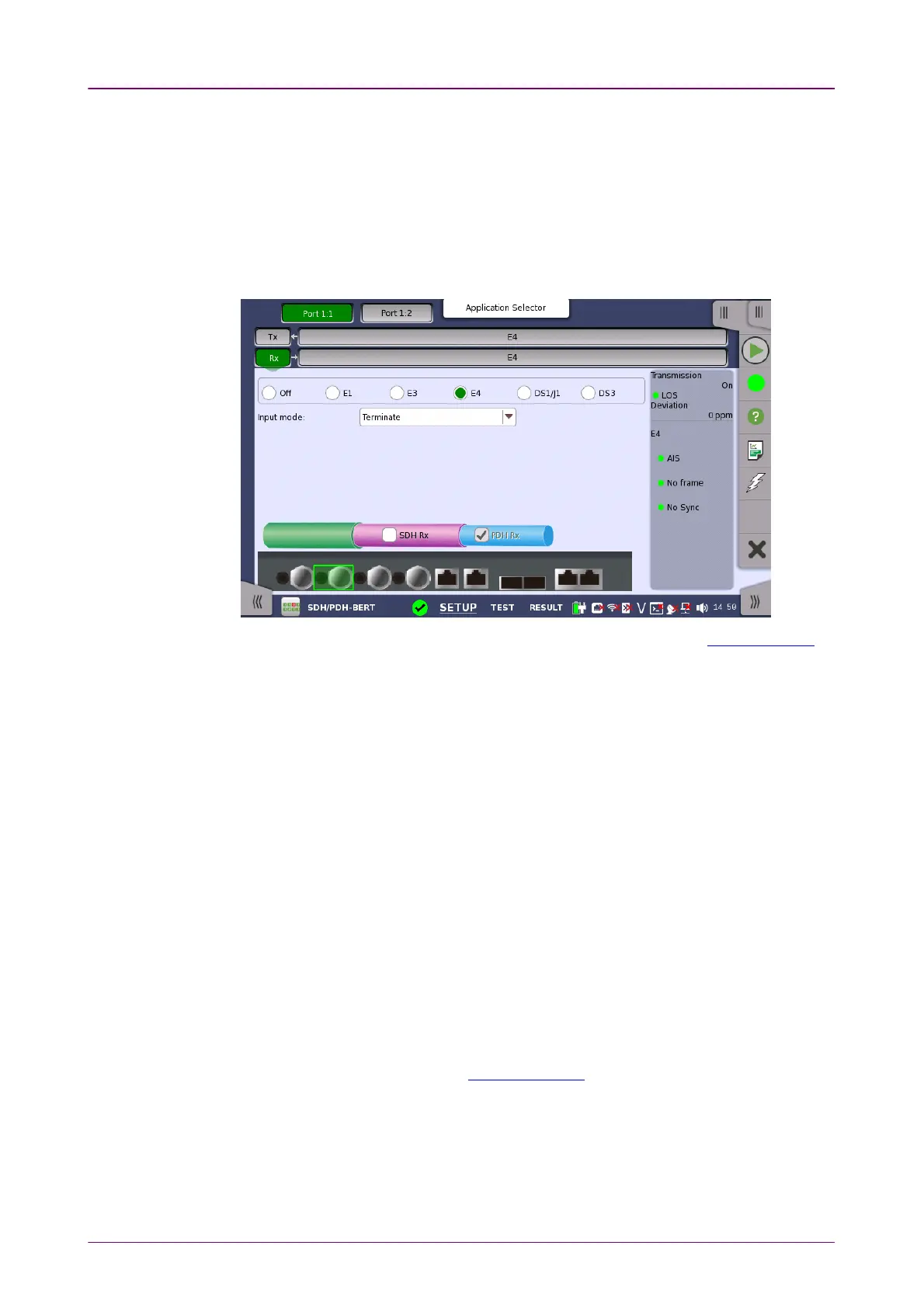

the navigation area will launch the following screen.
For the switching method between PDH Rx and DSn Rx, refer to Physical Setup
in "E1 Setup and Status". Touch E4E4 radio button. Touching OffOff radio button
disables the receiver.
This screen allows you to make the physical setup of the PDH receiver in E4
mode. It can also be used to inspect the current status of the selected port.
The configuration options available in the setup area of the screen are
described below. The status information is described in a separate section.
Select the mode of input.
TerminateTerminate
Used when the instrument is used as a tester and the receiver is the only
device connected to the line. The input impedance is nominal.
MonitorMonitor
Used when connecting to protected monitoring points. The input impedance
is nominal.
55..77..22..22 E4 Signal SetupE4 Signal Setup
Touching the navigation area button which represents the receiver's E4 layer
will display the same screen as E3 Signal Setup.
