22..77..22 Attaching the MU100090A and MU100010AAttaching the MU100090A and MU100010A

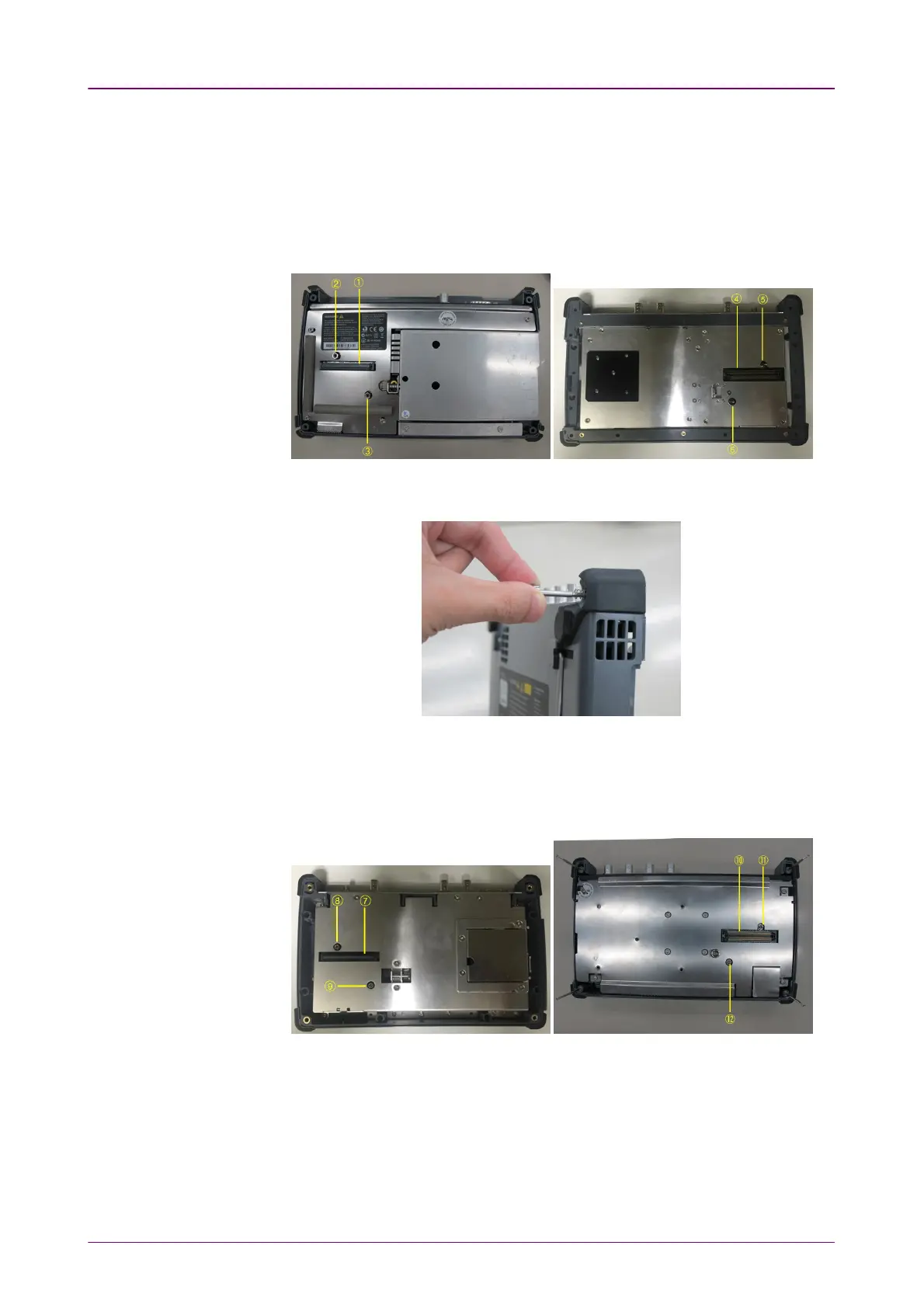

1. Place the instrument on its front on a plain surface.
2. Attach the MU100090A to the MT1000A. Place the MU100090A on the
MT1000A so as to connect the following pairs: 1 - 4, 2 - 5, 3 - 6.
Be careful not to bump the guide pins (2, 3, 5 and 6) to the connectors (1 and
4).
3. Remove four screws of the 10G Multirate module and replace to screws 2U in
B0728A Rear Panel Kit.
4. Attach the 10G Multirate module to the MU100090A. Place the 10G Multirate
module on the MU100090A so as to connect the following pairs: 7 - 10, 8 - 11, 9
- 12.
Be careful not to bump the guide pins (8, 9, 11 and 12) to the connectors (7 and
10).
