Input modeInput mode
55..44..22 Receiver SetupReceiver Setup
55..44..22..11 Physical SetupPhysical Setup

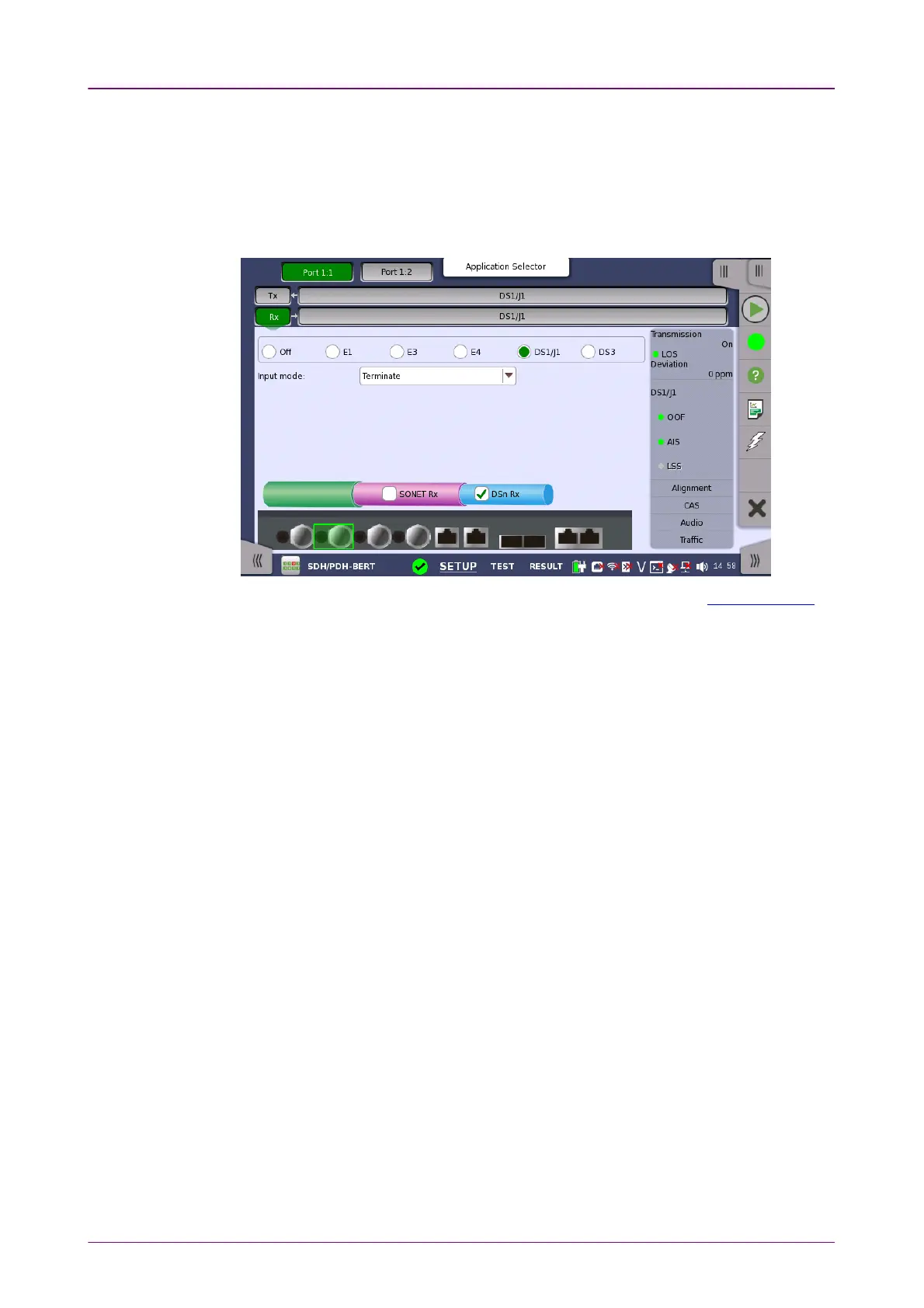

When the receiver is set up with only a DS1/J1 interface, touching the RxRx
button in the navigation area will launch the following screen.
For the switching method between PDH Rx and DSn Rx, refer to Physical Setup
in "E1 Setup and Status". Touch DS1/J1DS1/J1 radio button. Touching OffOff radio
button disables the receiver.
This screen allows you to make the physical setup of the PDH receiver in
DS1/J1 mode. It can also be used to inspect the current status of the selected
port.
The input signal is taken form the corresponding Bantam connector.
Select the mode of input.
TerminateTerminate
Used when the instrument is used as a tester and the receiver is the only
device connected to the line. The input impedance is nominal.
BridgedBridged
Used when the receiver is connected directly in parallel to a line carrying live
traffic. Please observe that this way of connecting may disturb the monitored
line - connection through a protected monitor point, as well as using the input
mode MonitorMonitor, is recommended instead.
MonitorMonitor
Used when connecting to protected monitoring points. The input impedance
is nominal.
55..44..22..22 DS1/J1 Signal SetupDS1/J1 Signal Setup
Touching the navigation area button which represents the receiver's DS1/J1
layer will display the screen.
