PatternPattern
Pattern Error insertionPattern Error insertion
Select the item to evaluate. If selecting other than Any Alarm or ErrorAny Alarm or Error, another
menu appears.
Evaluation typeEvaluation type
Select the relevant type.
Pass & fail thresholdPass & fail threshold
Touch the left-hand number to set the lower limit for "Warning". Touch the
right-hand number to set the lower limit for "Fail". The lower limit of "Fail"
must be equal to or greater than the lower limit of "Warning" (defining a
"Within limits" range in between them).
99..22..33 Test ResultsTest Results
99..22..33..11 SummarySummary

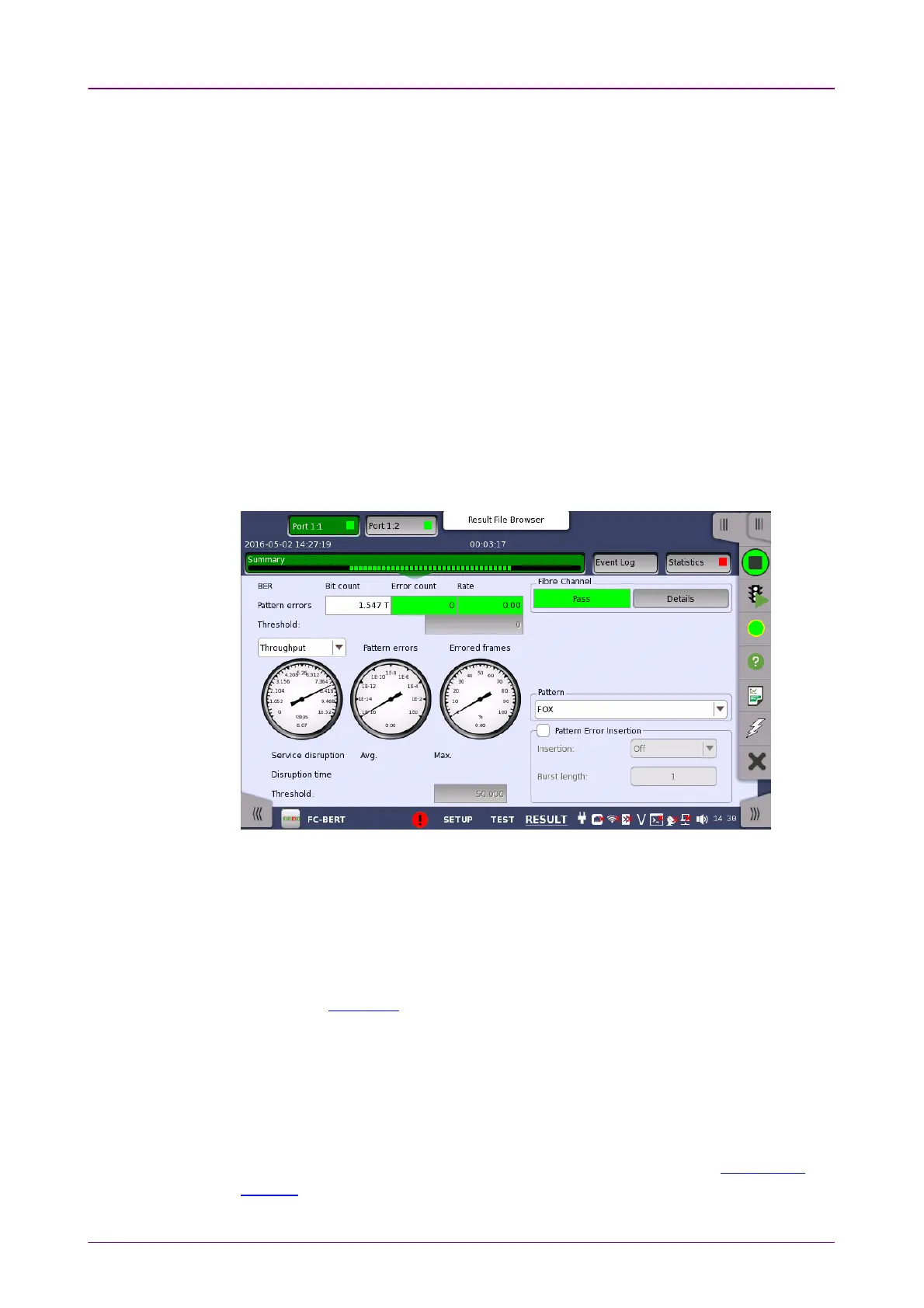

When you go to the test results of the Fibre Channel BERT application, the
following screen is displayed.
This screen contains a summary of the results of the Fibre Channel BERT test.
The information includes such things as number of pattern errors, average and
maximum disruption time, and number of exceeded thresholds.
The three dials showing utilization/throughput results, pattern errors and
errored frames can be enlarged by touching on them. The black needle points
the measured value in the latest period.
Refer to the Summary of BERT in "Ethernet Application".
When Fibre ChannelFibre Channel is selected on 'Threshold' of the Test Setup screen, the
Fibre ChannelFibre Channel information appears in the upper right-hand corner, shows
pass/fail status summary. Touching the DetailsDetails button allows you to inspect the
individual pass/fail status.
Select the pattern.
This provides the same Error insertion as
Stimuli setup options
in Application
Toolbar.
