ToneTone
Touch the Tone FrequencyTone Frequency button and use the launched dialog box to key in
the frequency, using the numeric soft keys.
Touch the LevelLevel button and use the launched dialog box to key in the level.

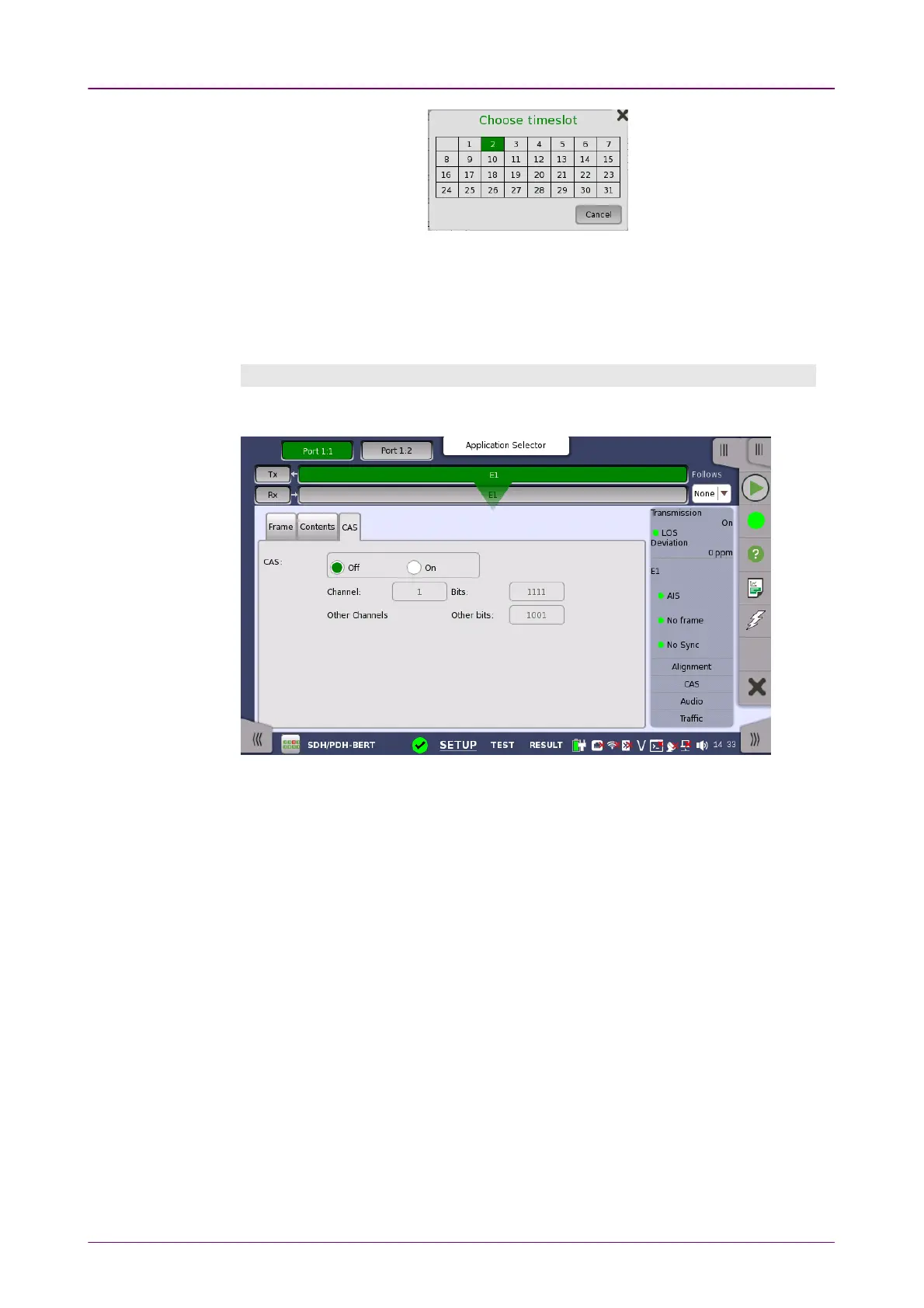

CAS tab pageCAS tab page
The CASCAS tab page contains the following parameters:
CASCAS
Use the CASCAS radio buttons to enable (OnOn) or disable (OffOff) the insertion of a
CAS (Channel Associated Signaling) signaling multiframe into time slot 30 of
the transmitted signal.
Touch the ChannelChannel, BitsBits and Other bitsOther bits fields to define the contents of a
selectable CAS channel as well as the remaining channels.
55..33..22 Receiver SetupReceiver Setup
55..33..22..11 Physical SetupPhysical Setup
When the receiver is set up with only an E1 interface, selecting the RxRx button in
the navigation area will launch the following screen.
