SettingsSettings
FIFO controlFIFO control
Select the check box to set one to the FIFO Reset bit or the FIFO Auto Reset
bit.

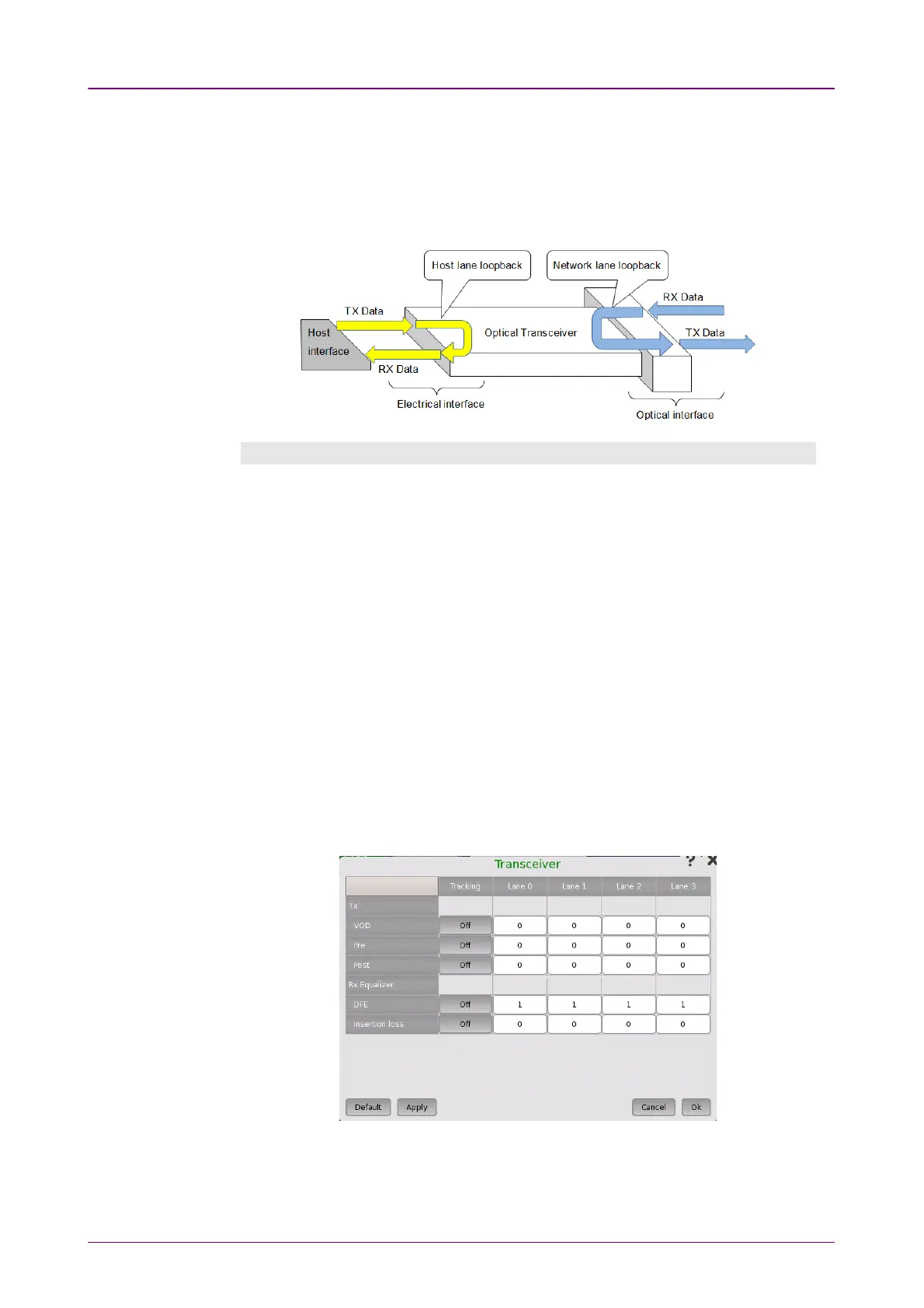

Loopback controlLoopback control
Select the check box for enabling the loopback function of CFP.
MDIO Read/WriteMDIO Read/Write
Single Read/WriteSingle Read/Write
Specifying the address allows users to read or write the data.
Burst ReadBurst Read
Specifying the top address and length allows users to read the data.
Touching the ExportExport opens the dialog box to set the filename.
Touching the SettingsSettings button at right hand bottom displays the dialog box.
This dialog box allows to set Network Master interface to the optical
transceiver.
When setting same value at all lanes, touch the button in TrackingTracking column and
set the button display to [On]. The value set at Lane 0 is applied to all lanes.
When setting a different value at each lane, touch the button in TrackingTracking
column and set the button display to [Off]. Set the value by touching the field
for each lane.
Transmitter InterfaceTransmitter Interface
Allows to set the output waveform of Network Master.
VOD
