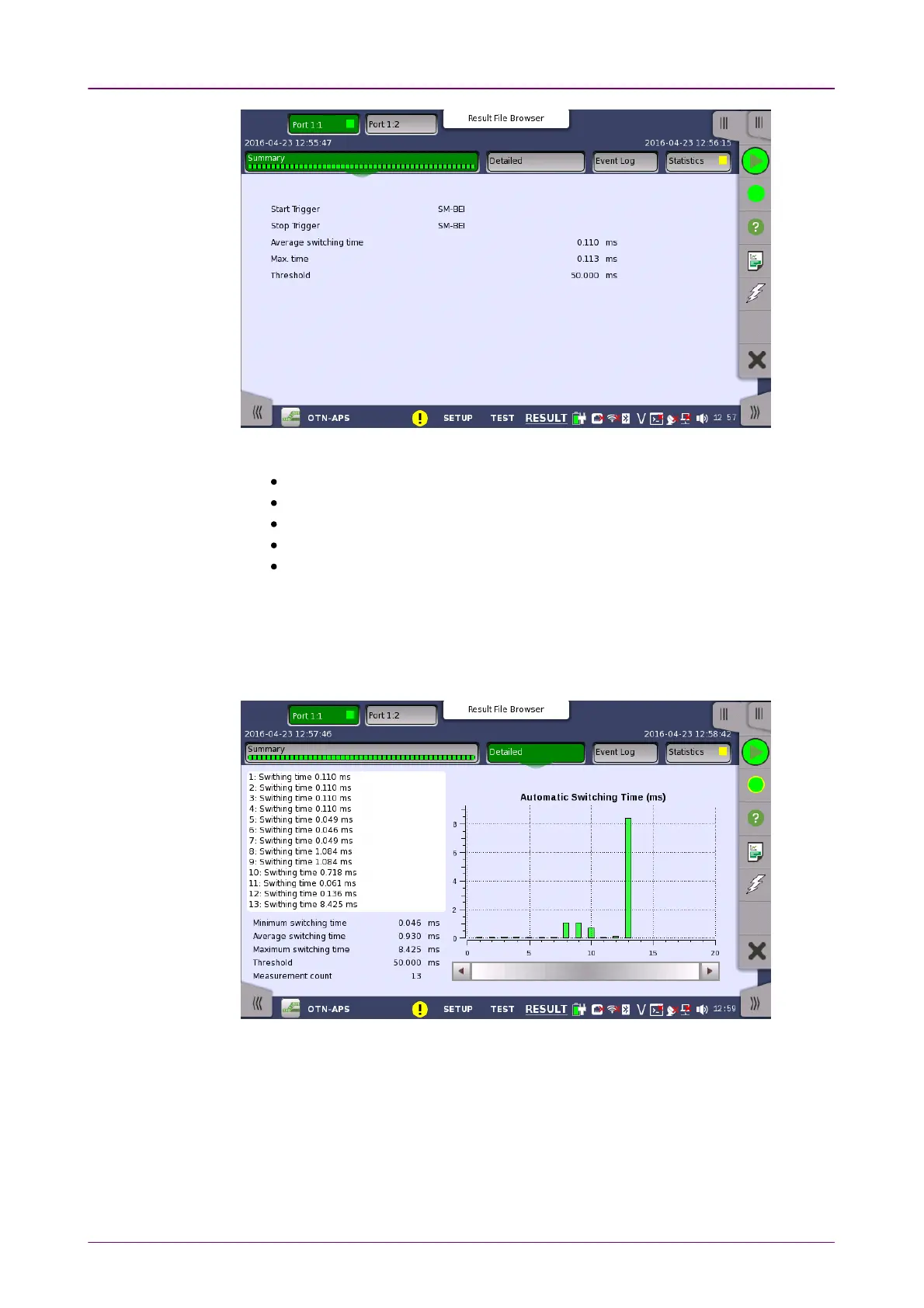

The following information is displayed:
Start Trigger
Stop Trigger
Average switching time : Average time of switching
Max. Time : Maximum time of switching
Threshold : The threshold value used in the test
77..22..33..22 DetailedDetailed
Touching the DetailedDetailed button in the navigation area will display the screen
shown below.
Buttons for selecting the relevant port are displayed at the top of the screen,
with a color indication of the pass/fail status of the test.
This screen presents the detailed results of an OTN APS test. The results relate
to a specific port and consist of the Automatic Switching times of the APS
requests. The data is shown in both list-form and in a graphical presentation.
This screen contains the summary field displayed below the list.
