22..66 Modules ConfigurationModules Configuration
Following modules are available for MT1000A.
Transport Modules
MU100010A 10G Multirate Module
MU100011A 100G Multirate Module
OTDR Modules
MU100020A OTDR Module 1310/1550nm SMF
MU100021A OTDR Module 1310/1550/850/1300nm SMF/MMF
MU100022A OTDR Module 1310/1550/1625nm SMF
CPRI RF Module
MU100040A CPRI RF Module
MU100040B CPRI RF Module with BBU Emulation Support
GPS Module
MU100090A High Performance GPS Disciplined Oscillator

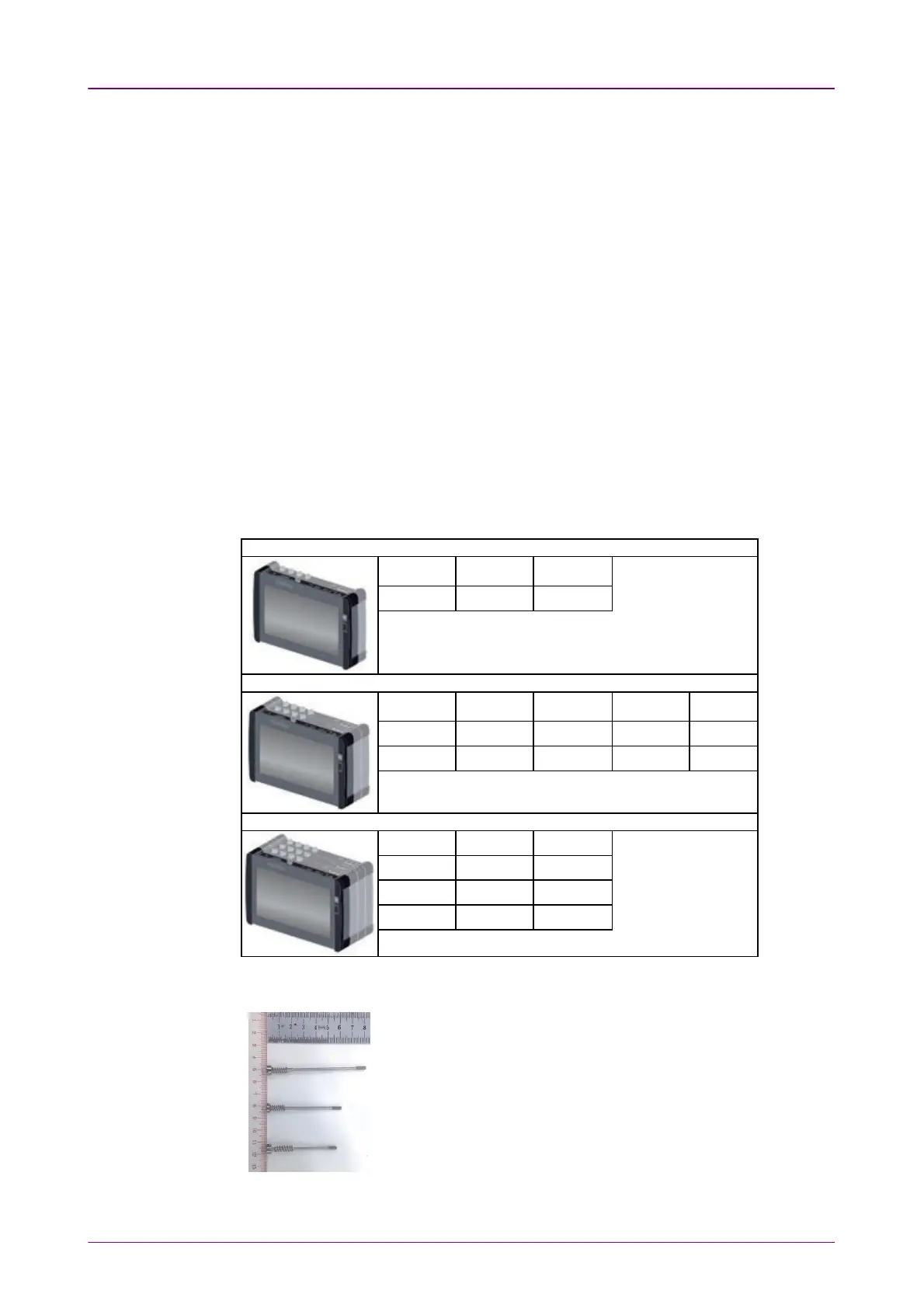

MT1000A is able to mount up to three modules. Available module
combinations are eleven kinds and shown in the table below.
Only one OTDR module can be mounted to the MT1000A.
One module configurationOne module configuration
Transport
OTDR
*
CPRI RF
*
MT1000A MT1000A MT1000A
Two modules configurationTwo modules configuration
Transport Transport Transport
OTDR
*
CPRI RF
*
OTDR GPS CPRI RF CPRI RF OTDR
MT1000A MT1000A MT1000A MT1000A MT1000A
Three modules configurationThree modules configuration
Transport Transport Transport
OTDR OTDR CPRI RF
GPS CPRI RF OTDR
MT1000A MT1000A MT1000A
*: When OTDR module or CPRI RF module is mounted on back, equip with rear
panel. B0728A Rear Panel Kit come with different length screws.
Model Name
B0731A Screw 3U
B0730A Screw 2U
B0729A Screw 1U
