Receiver gainReceiver gain
TransceiverTransceiver
FollowsFollows
TCMTCM
SDH/SONETSDH/SONET
switchingswitching
SFP/SFP+SFP/SFP+: Optical interface
ElectricalElectrical: Electrical interface (BNC connector)
Only relevant for electrical receivers. Select the attenuation and impedance
mode from the drop-down menu.
TerminateTerminate: Up to 12.7 dB cable attenuation, nominal impedance
MonitorMonitor: 20 dB linear attenuation and up to 12 dB cable attenuation, nominal
impedance.
Displays the Transceiver information when Optical transmitter is selected.
55..22..22..22 SONET Frame SetupSONET Frame Setup

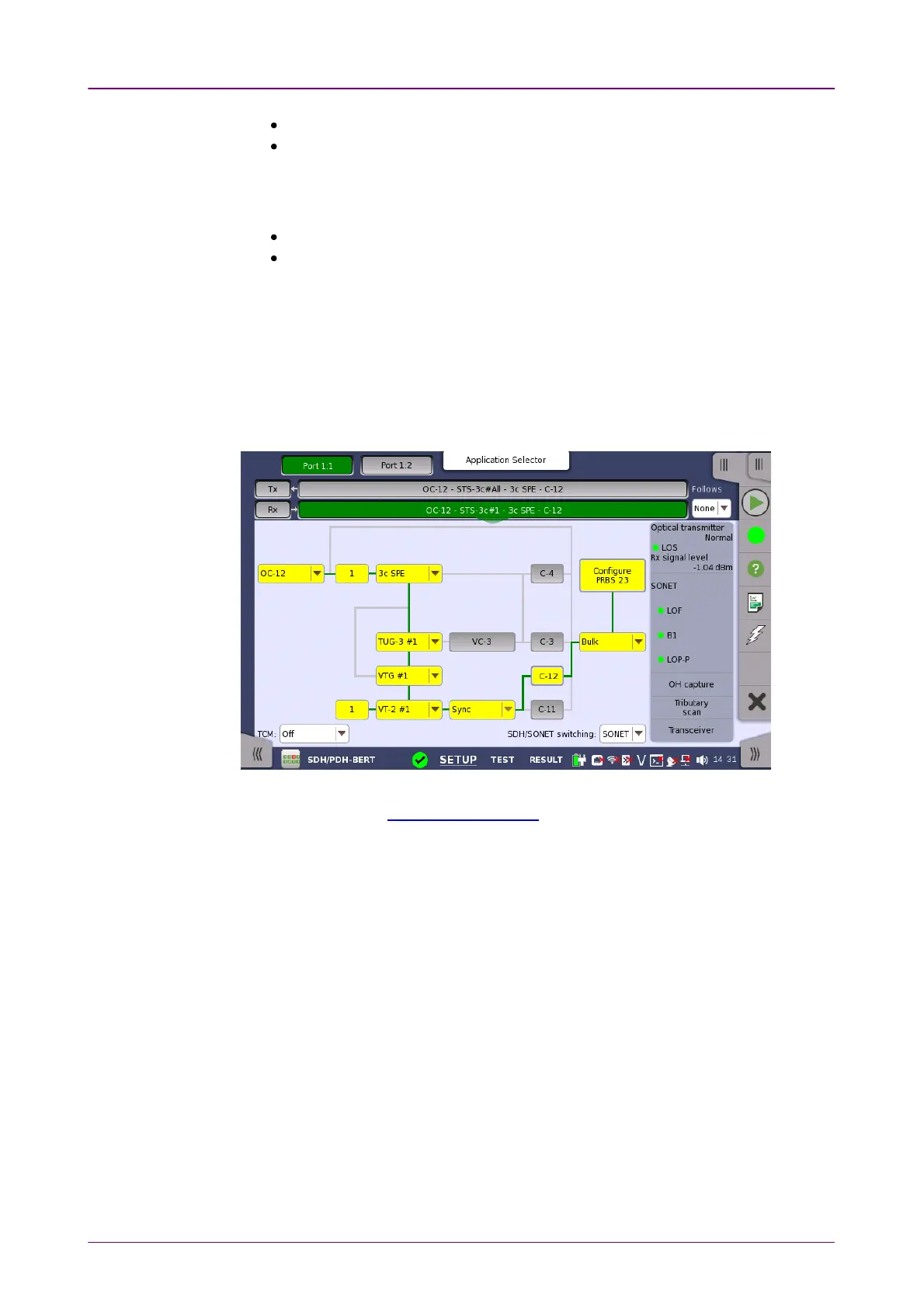

Touching the navigation area button which represents the receiver's SONET
layer will launch the following screen.
The manner of setting up the SONET interface of receiver is the same as that of
transmitter. Refer to
SONET Frame Setup
.
To make the currently selected receiver follow either the transmitter or Port 1
receiver (i.e. copy its settings), touch the right-most button in the navigation
area and select the relevant value in the drop-down menu. The receiver settings
continue to follow the change of either the transmitter or Port 1 receiver. The
default setting is NoneNone. Note that the Port 1 receiver cannot follow the Port 2
receiver.
Select the
TCM
(Tandem Connection Monitoring). The available TCM is
decided by multiplex structure. If you select other TCM, the multiplex structure
on the setup area will be changed.
The possible settings are:
OffOff
Z5 (STS-3c)Z5 (STS-3c)
Z5 (STS-1)Z5 (STS-1)
Z6 (VT-2/1.5)Z6 (VT-2/1.5)
Allows you to switch between SDH and SONET.
