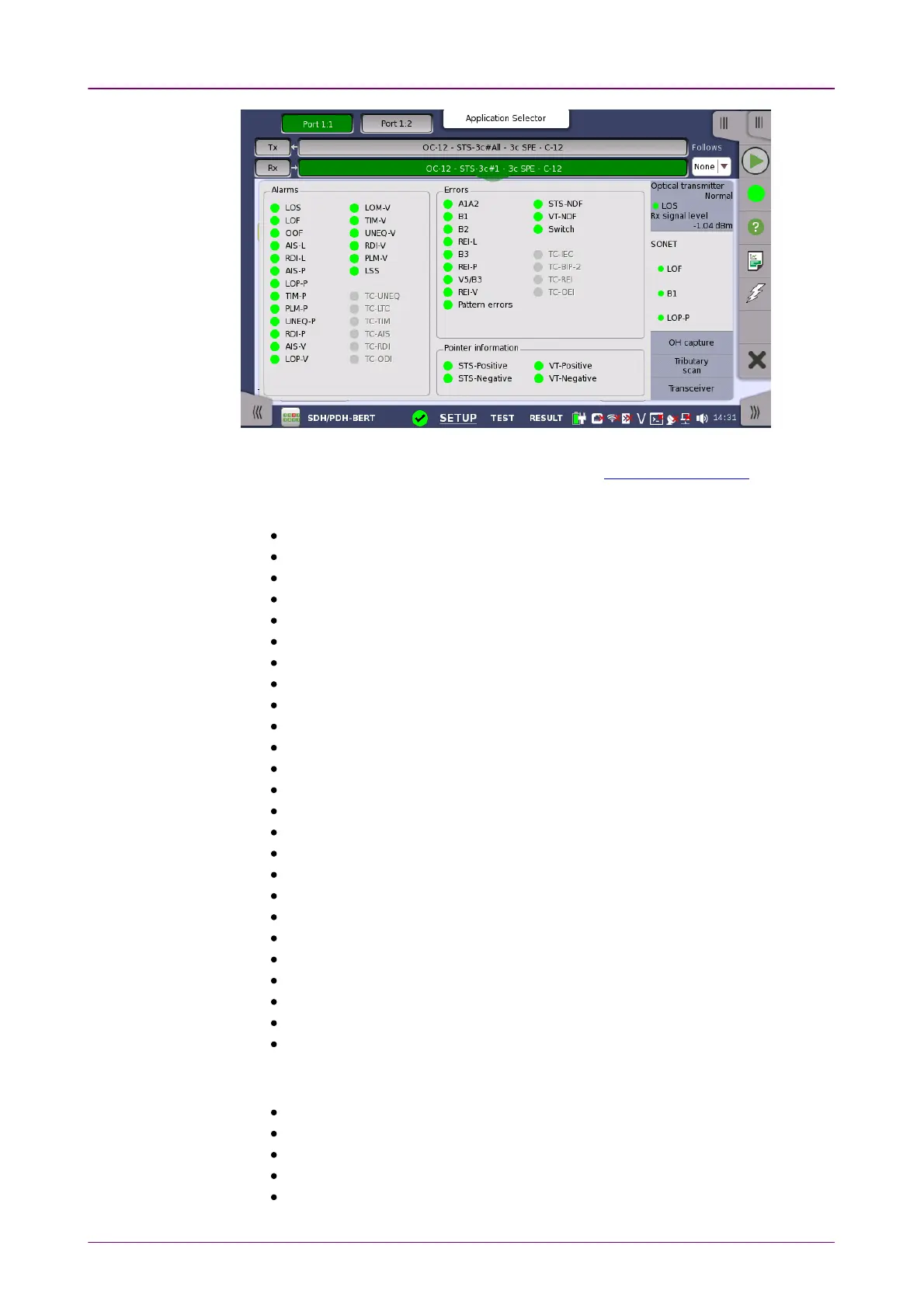

This dialog box contains detailed alarm and error information related to the
SONET interface. Status is indicated by the use of colored Lamp icons.
Alarms
LOSLOS: Loss of Signal
LOFLOF: Loss of Frame
OOFOOF: Out of Frame
AIS-LAIS-L: Line Alarm Indication Signal
RDI-LRDI-L: Line Remote Defect Indication
AIS-PAIS-P: Path Alarm Indication Signal
LOP-PLOP-P: Path Loss of pointer
TIM-PTIM-P: Path Trace Identifier Mismatch
PLM-PPLM-P: Path Payload Mismatch
UNIQ-PUNIQ-P: Path UNEQuipped
RDI-PRDI-P: Path Remote Defect Indication
AIS-VAIS-V: VT-Path Alarm Indication Signal
LOP-VLOP-V: VT-Path Loss of pointer
LOM-VLOM-V: VT-Path Loss of Multiframe
TIM-VTIM-V: VT-Path Trace Identifier Mismatch
UNIQ-VUNIQ-V: VT-Path UNEQuipped
RDI-VRDI-V: VT-Path Remote Defect Indication
PLM-VPLM-V: VT-Path Payload Mismatch
LSSLSS: Loss of Sequence Synchronization
TC-UNEQTC-UNEQ: Tandem Connection UNEQuipped
TC-LTCTC-LTC: Tandem Connection Loss of Tandem Connection
TC-TIMTC-TIM: Tandem Connection Trace Identifier Mismatch
TC-AISTC-AIS: Tandem Connection Alarm Indication Signal
TC-RDITC-RDI: Tandem Connection Remote Defect Indication
TC-ODITC-ODI: Tandem Connection Outgoing Defect Indication
Errors
A1A2A1A2: Bytes used for the frame synchronization
B1B1: The byte of BIP-8 (Bit Interleaved Parity-8)
B2B2: The bytes of 24 parity bits
REI-LREI-L: Line Remote Error Indication
B3B3: The byte of BIP-8 (Bit Interleaved Parity-8)
