The received line content with even bits inverted. With A-law coded speech it is
possible to observe the A-law code words before the even bit inverting.
DS1/J1 inverts all the bits.
Peak (pos. and neg.)Peak (pos. and neg.)
The peak value of the signal. This only applies for A-law speech and it
represents the largest received A-law coded value.
LevelLevel
The level of the audio signal is shown here.
Tone frequencyTone frequency
The frequency of the audio signal is shown here.
Coder offsetCoder offset
The coder offset is presented if the time slot displayed is a normal 64 kbit/s
time slot.
Audio levelAudio level
Two dBm meters show the volume of the currently selected audio channel
(Port1 - Port2).
55..33..33..77 TrafficTraffic

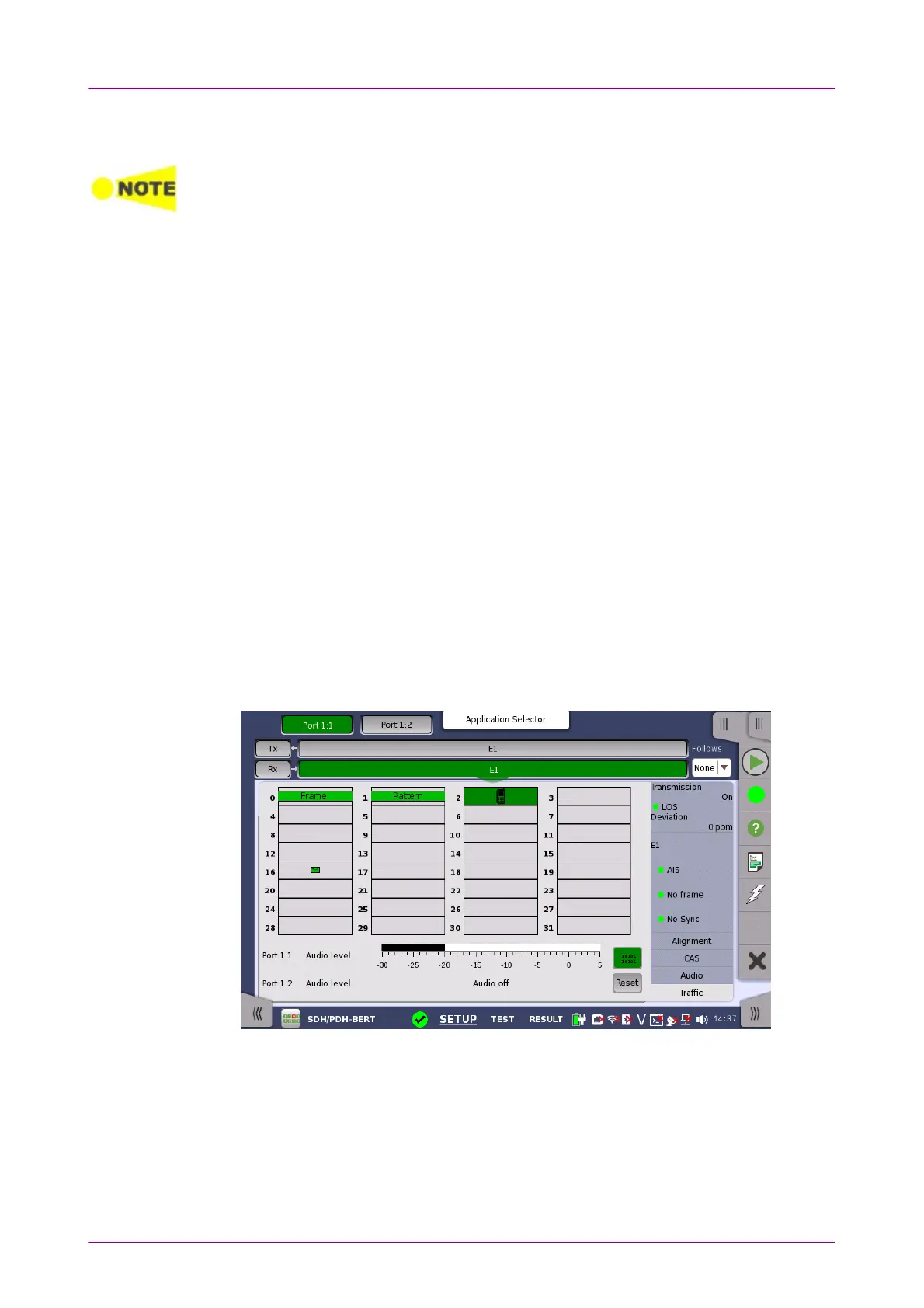

Touching the TrafficTraffic button in the status area of the Ports SetupPorts Setup screen displays
the status shown below.
This screen shows the activity of the speech channels represented on the 2
Mbps line. You can switch between a traffic display and a view of the time slot
content.
