UDPUDP
Shows Payload length in the IPv6 header. This value is calculated
automatically.
Next headerNext header
The
next header
indicates the upper/next layer protocol encapsulated in the IP
datagram. Typical values in hex are:
1 = ICMP
,
6 = TCP
etc.
Hop limitHop limit
The
hop limit
defines the number of 'hops' a datagram can do before it no
longer is forwarded.
Src IPSrc IP
Select setting mode using drop-down menu.
ManualManual: touch the field to enter 32 Hex values.
StatelessStateless: configures the address automatically. The lamp lit in green if the
automatic configuration has succeeded.
This option is available when PBB nor MPLS-TP is not set to Layer 2.

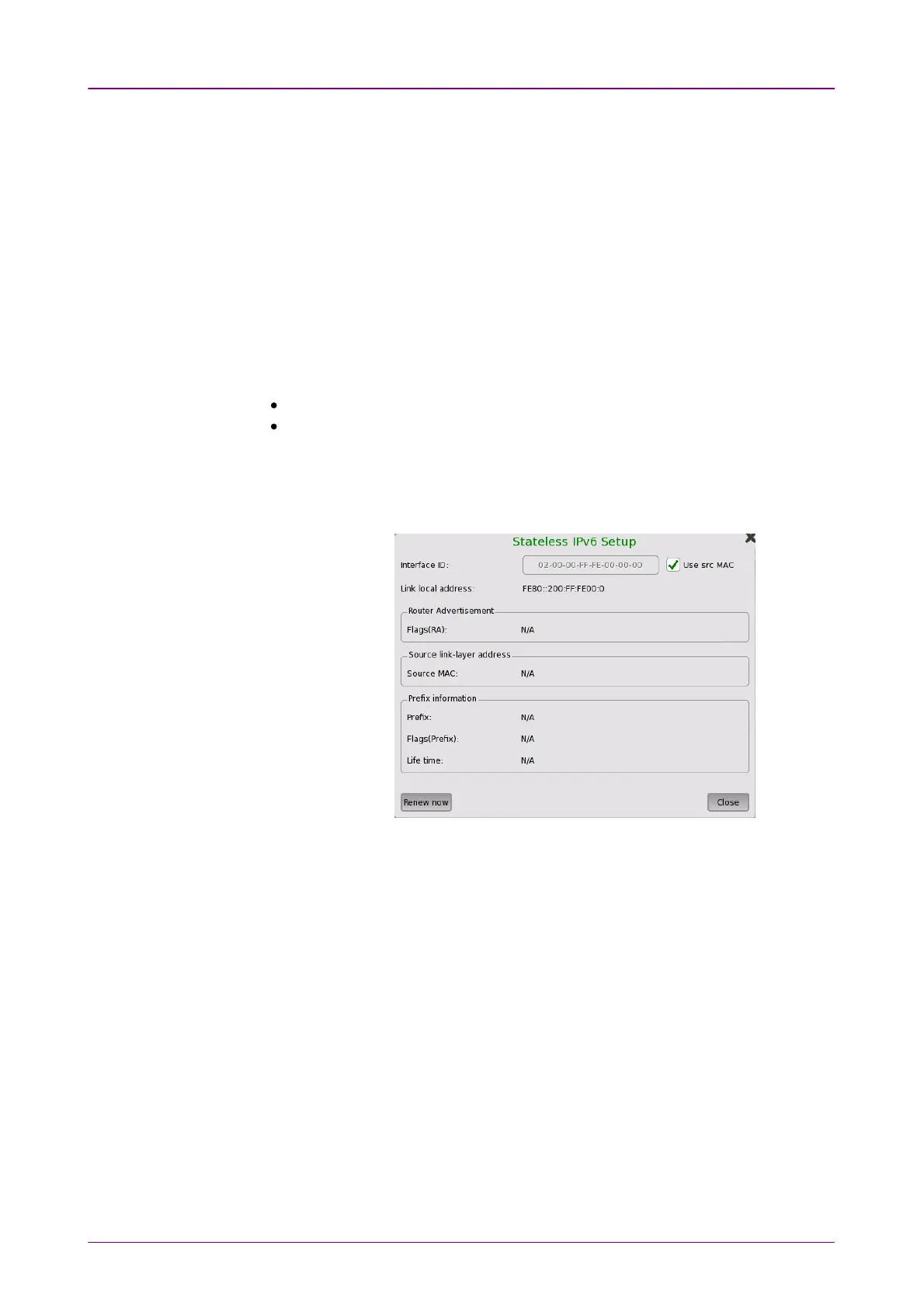

Touching the SetupSetup button next to the virtual Lamp in the Src IPSrc IP line
will open the Stateless IPv6 SetupStateless IPv6 Setup dialog box.
Selecting the Use src MACUse src MAC check box configures the interface ID from
the MAC address.
When the check box is clear, touch the field to set the interface ID.
Touching Renew nowRenew now starts the source IP address configuration.
Dst IPDst IP
Touch the field to enter 32 Hex values.
Touching the UDPUDP layer button displays the parameters available for the
User
Datagram Protocol
layer.
