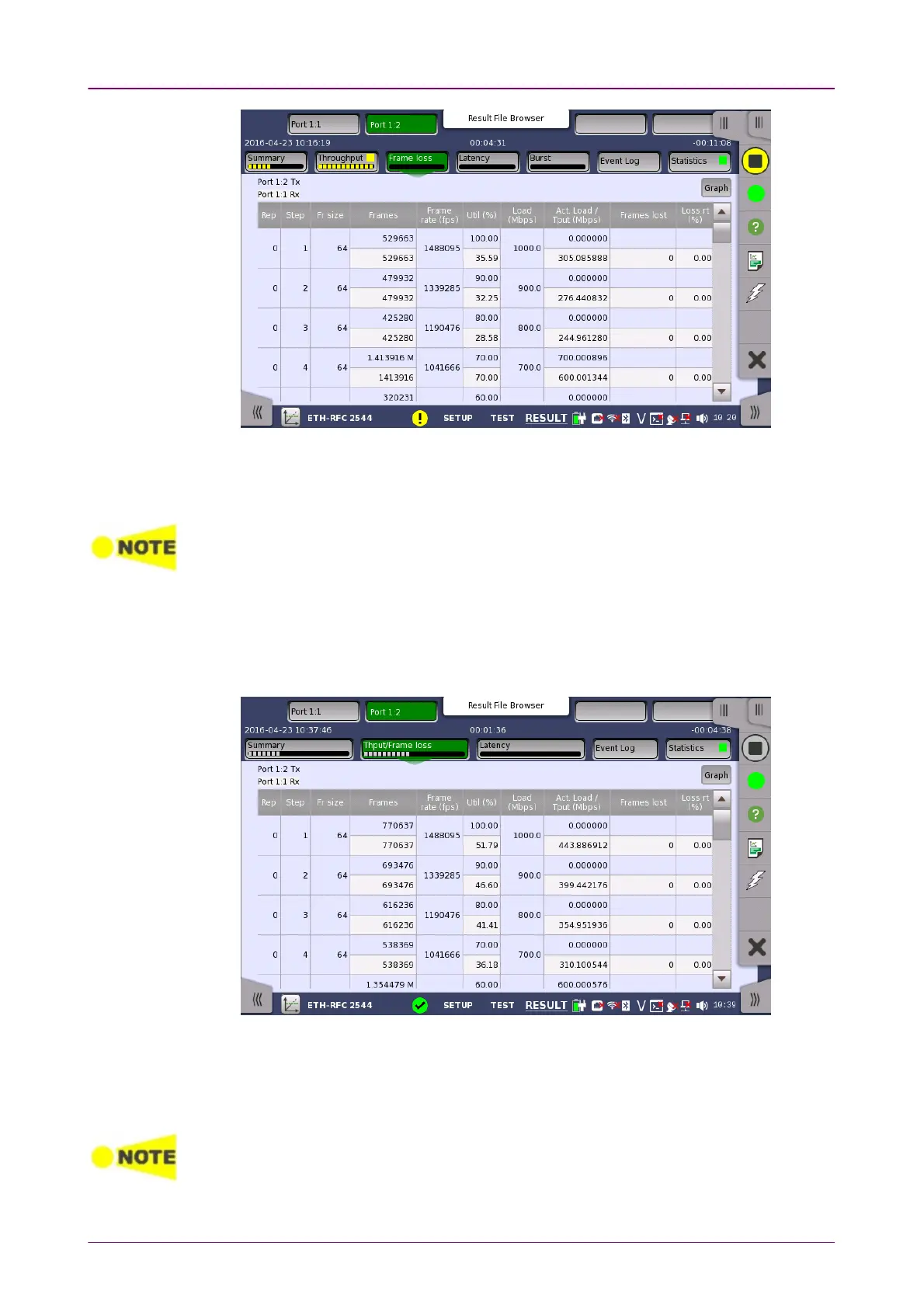

This screen presents the results from the Frame loss test.
The most important columns of the tables are the varied main parameters
Frame size
and
Throughput
and the performance parameter
Loss rate
.
The order of the tables will vary depending on the test mode and the relation of the ports.
Refer to the table in "Throughput" subsection of "Test Results".
66..99..33..44 Throughput and frame lossThroughput and frame loss
Touching the Throughput and frame lossThroughput and frame loss button in the navigation area will
display the screen shown below.
This screen presents the results from the Throughput and frame loss test.
The most important columns of the tables are the varied main parameters
Frame size
and
Throughput
and the performance parameters
Frames lost
and
Loss rate
.
The order of the tables will vary depending on the test mode and the relation of the ports.
Refer to the table in "Throughput" subsection of "Test Results".
