AudioCodes MP-202 User Manual

MP-202 Telephone Adapter 106 Document #: LTRT-50605
User's Manual

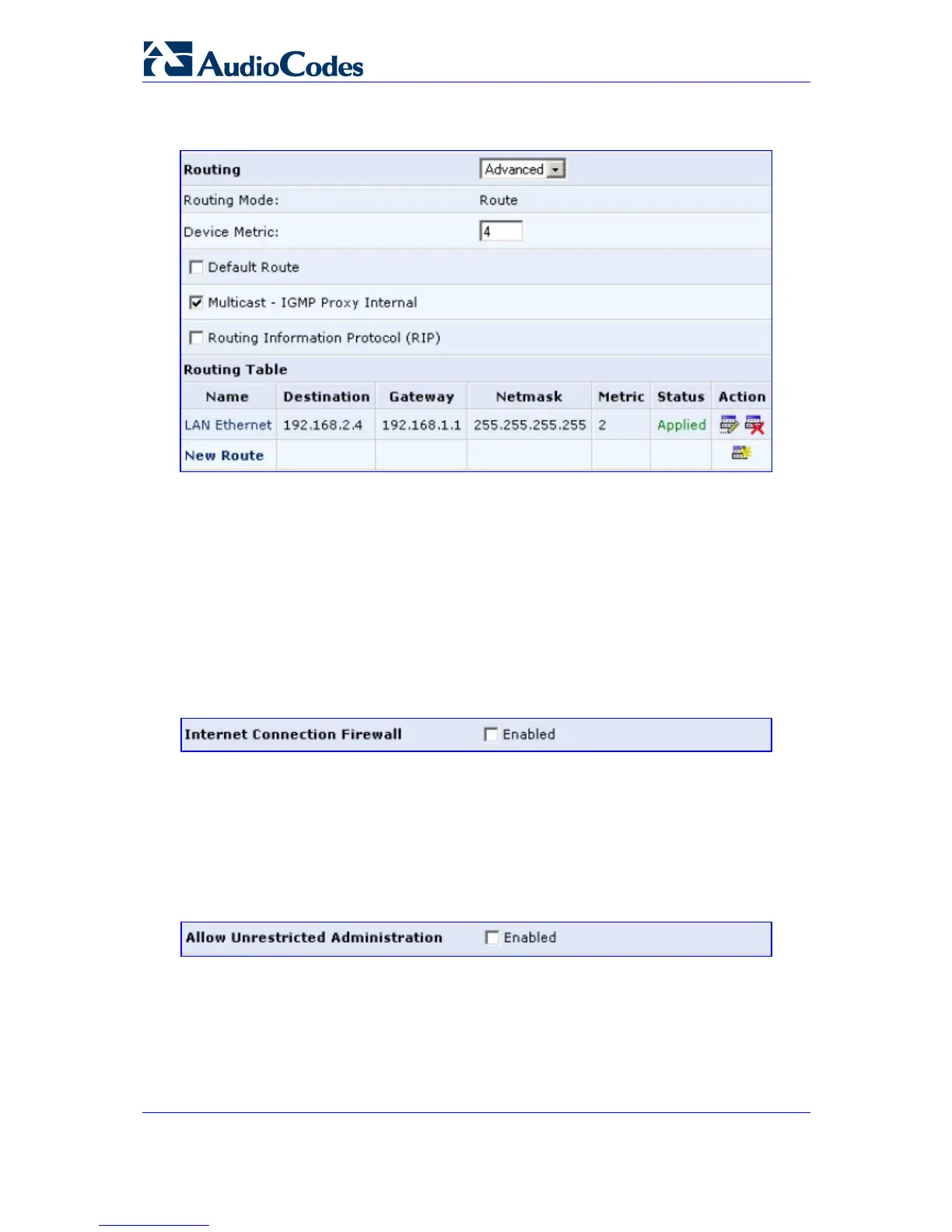

Figure 10-10: Advanced Routing Properties
For detailed information on this feature, refer to Section 10.17.
10.1.5 Internet Connection Firewall
Your Telephone Adapter’s firewall helps protect your computer by preventing unauthorized
users from gaining access to it through a network such as the Internet. The firewall can be
activated per network connection. To enable the firewall on this network connection, select
the 'Enabled' check box. For detailed information on your device's security features, refer to
Section 5.
Figure 10-11: Internet Connection Firewall
10.1.6 Allow Unrestricted Administration
Select this check box to enable users other than those defined as 'Administrator' to change
the device's configuration.
Figure 10-12: Allow Unrestricted Administration

AudioCodes MP-202 Specifications

General

Model	MP-202
Category	Adapter
Ports	2 FXS ports
Protocol Support	SIP, H.323
Weight	0.5 kg
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 70°C
Humidity	10% to 90% non-condensing
Network Interface	10/100Base-T Ethernet
Voice Codecs	G.711, G.729, G.723.1, G.726
Security	HTTPS, TLS, SRTP
Management	Web-based, SNMP
Power Supply	12V DC
