MP-202 Telephone Adapter 10. VLAN and Bridge Settings
2. Connect a PC to the LAN port of MP202 (1 or 2) and send traffic (ICMP). Verify that
the ICMP traffic is tagged (802.1q) and that it is using VLAN 521.

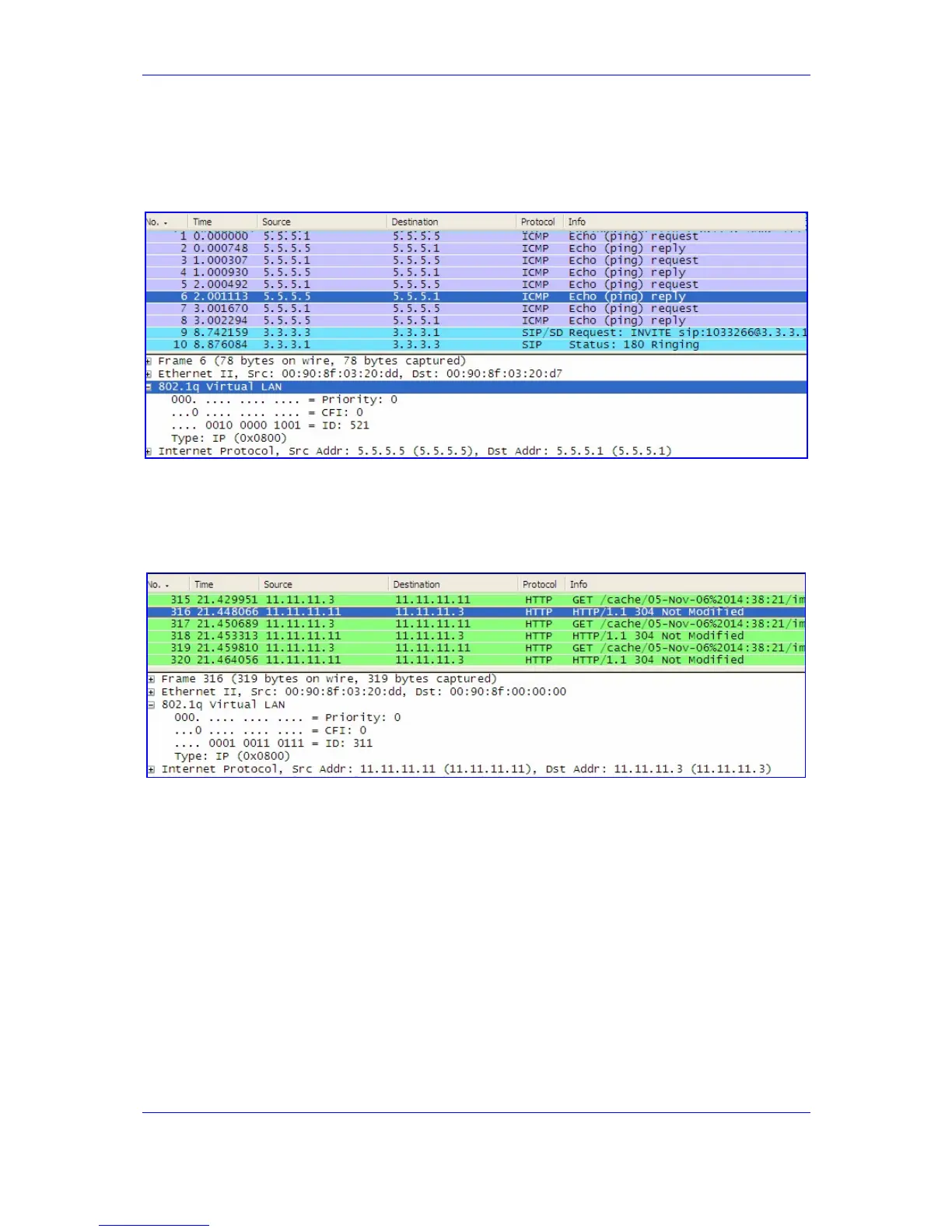

Figure 10-25: Testing the Setup
3. Connect the management PC to VLAN 311 and verify that all management traffic is
carried in this VLAN (refer to the figure below).
Figure 10-26: Testing the Setup
