MP-202 Telephone Adapter 11. TR-069 CPE WAN Management Protocol
11 TR-069 CPE WAN Management Protocol
11.1 Overview
TR-069 is a WAN management protocol intended for communication between Customer
Premise Equipment (CPE) or residential devices (such as the MP-202), and an Auto-
Configuration Server (ACS). It defines a mechanism that encompasses secure auto
configuration of CPE, and also incorporates other CPE management functions into a
common framework.
In simpler terms, TR-069 is a protocol that enables remote server management of the MP-
202. Such a protocol is useful, for example, for remotely and securely controlling the MP-
202 by the CPE provider.

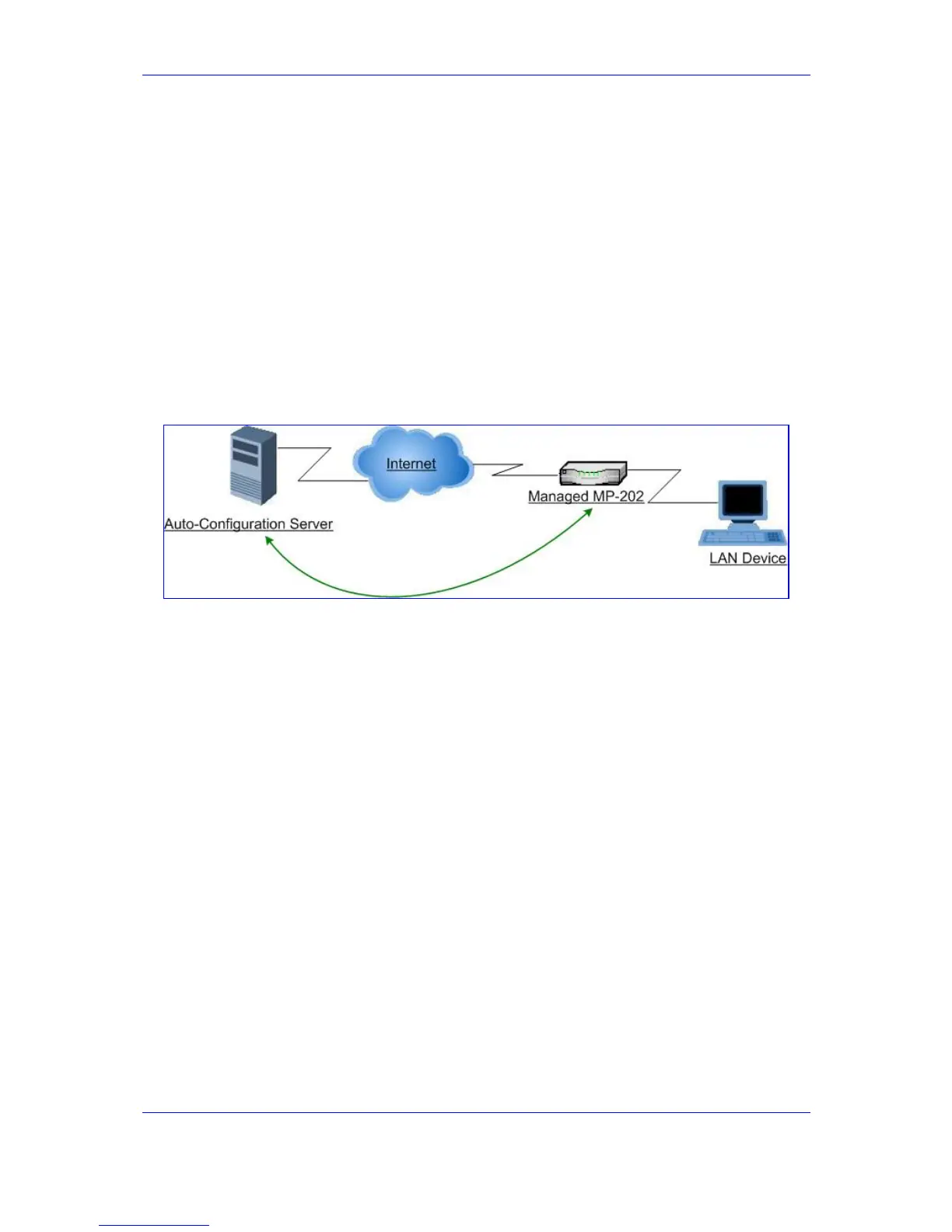

Figure 11-1: TR-069 CPE WAN Management Protocol
The TR-069 protocol allows an ACS to provision a CPE or collection of CPE based on a
variety of criteria. The provisioning mechanism includes specific provisioning parameters
and a general mechanism for adding vendor-specific provisioning capabilities as needed.
The provisioning mechanism allows CPE provisioning at the time of initial connection to the
broadband access network, and the ability to re-provision at any subsequent time. This
includes support for asynchronous ACS-initiated re-provisioning of CPE. TR-069 defines
several Remote Procedure Call (RPC) methods, as well as a large number of parameters,
which may be set or read. Some of these methods and parameters are defined as
mandatory. TR-098 is the DSLHome Internet Gateway Device Version 1.1 Data Model for
TR-069.
11.2 TR-069 Parameter List
The DSL Forum TR-069 Technical Report species the TR-069 full parameter list, including
the parameter type and description. For further information, refer to
http://www.dslforum.org/aboutdsl/Technical_Reports/TR-069.pdf
Following is the list of the TR-069 objects supported by the MP-202. Objects that are partly
supported have a detailed list of their implemented parameters. If not specified, the listed
object is fully implemented.
InternetGatewayDevice.
InternetGatewayDevice.ManagementServer.
• URL
• Username
