Version 2.6 123 May 1
MP-202 Telephone Adapter 10. VLAN and Bridge Settings
4. Add a network bridge: In the screen 'Network Bridging', check LAN Ethernet and WAN
Ethernet (refer to the figure below).

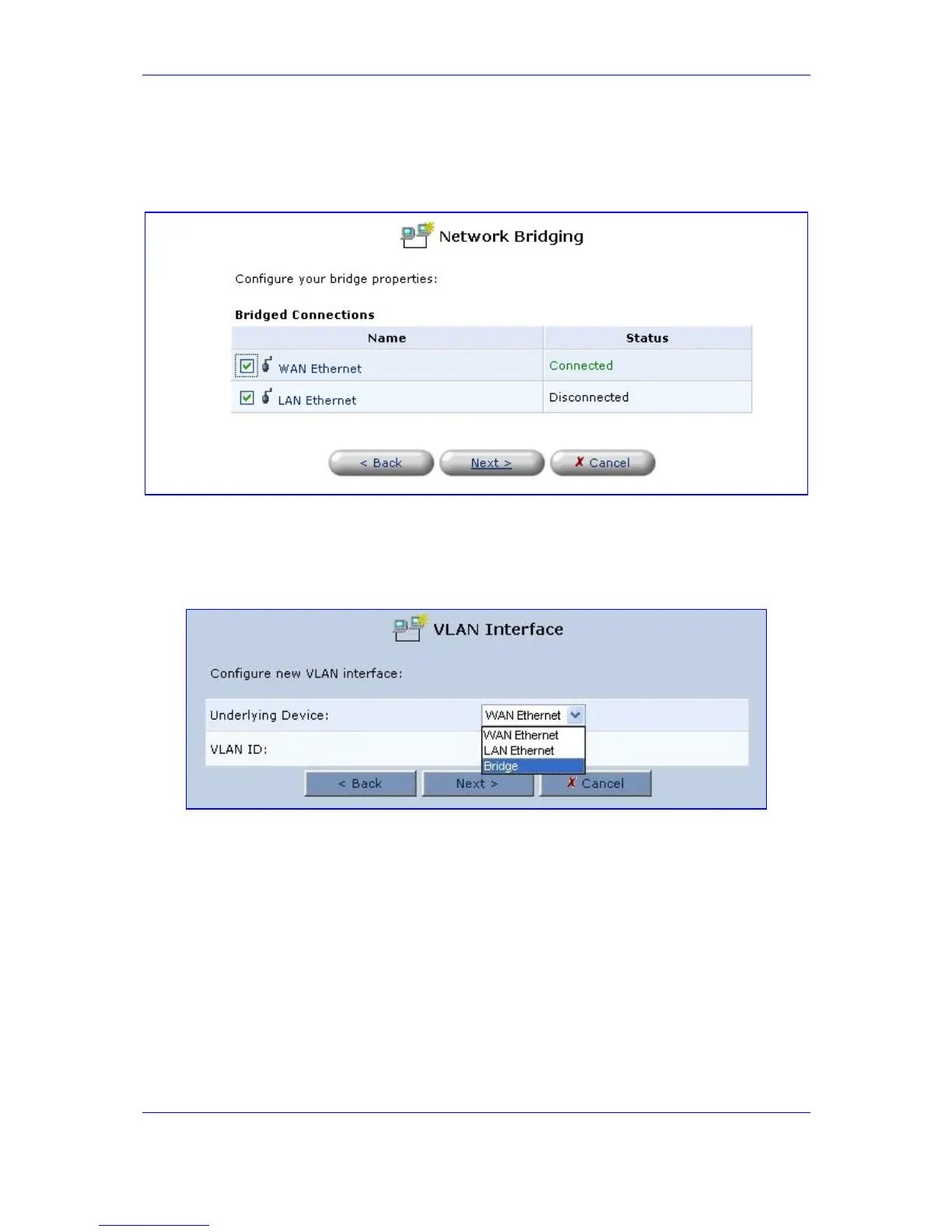

Figure 10-39: WAN/LAN Bridge
5. For VoIP, add VLAN Interface 200 (VID 200) and choose option 'Bridge' in the drop-
down list of parameter 'Underlying Device' (refer to the figure below).
Figure 10-40: VLAN Interface Screen
