AudioCodes MP-202 - Traffic; System Log; Figure 14-2: System Monitoring - Traffic

MP-202 Telephone Adapter 202 Document #: LTRT-50605
User's Manual
14.2 Traffic
The gateway is constantly monitoring traffic within the local network and between the local
network and the Internet. You can view up-to-the-second statistical information about data
received from and transmitted to the Internet (WAN) and about data received from and
transmitted to computers in the local network (LAN).
¾ To view traffic statistics:
 Click tab 'Traffic'; the 'System Monitoring - Traffic' screen opens.

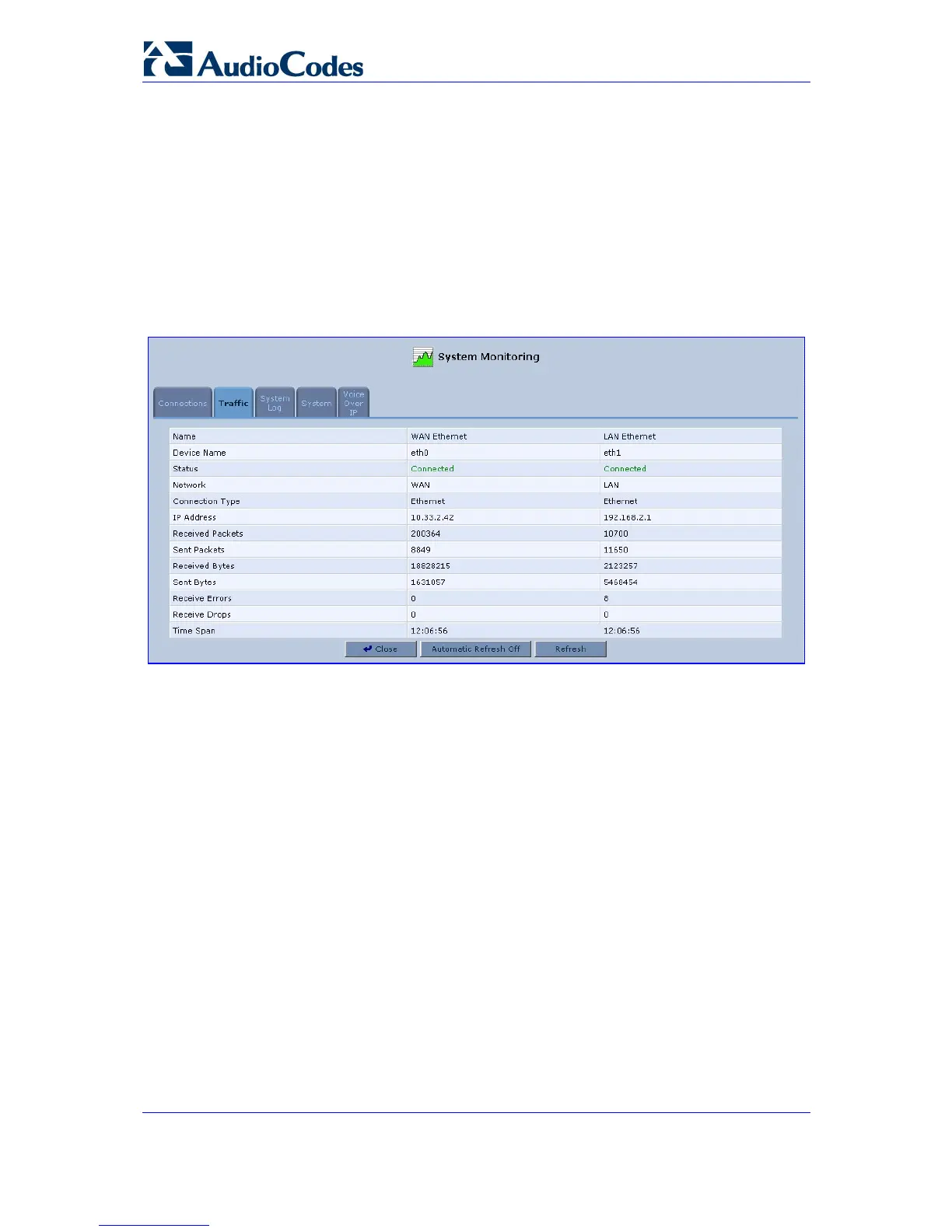

Figure 14-2: System Monitoring - Traffic
14.3 System Log
The System Log displays a list of the most recent activity that has taken place on the
gateway.
