AudioCodes MP-202 User Manual

MP-202 Telephone Adapter 146 Document #: LTRT-50605
User's Manual
¾ To add an entry for the gaming example above:

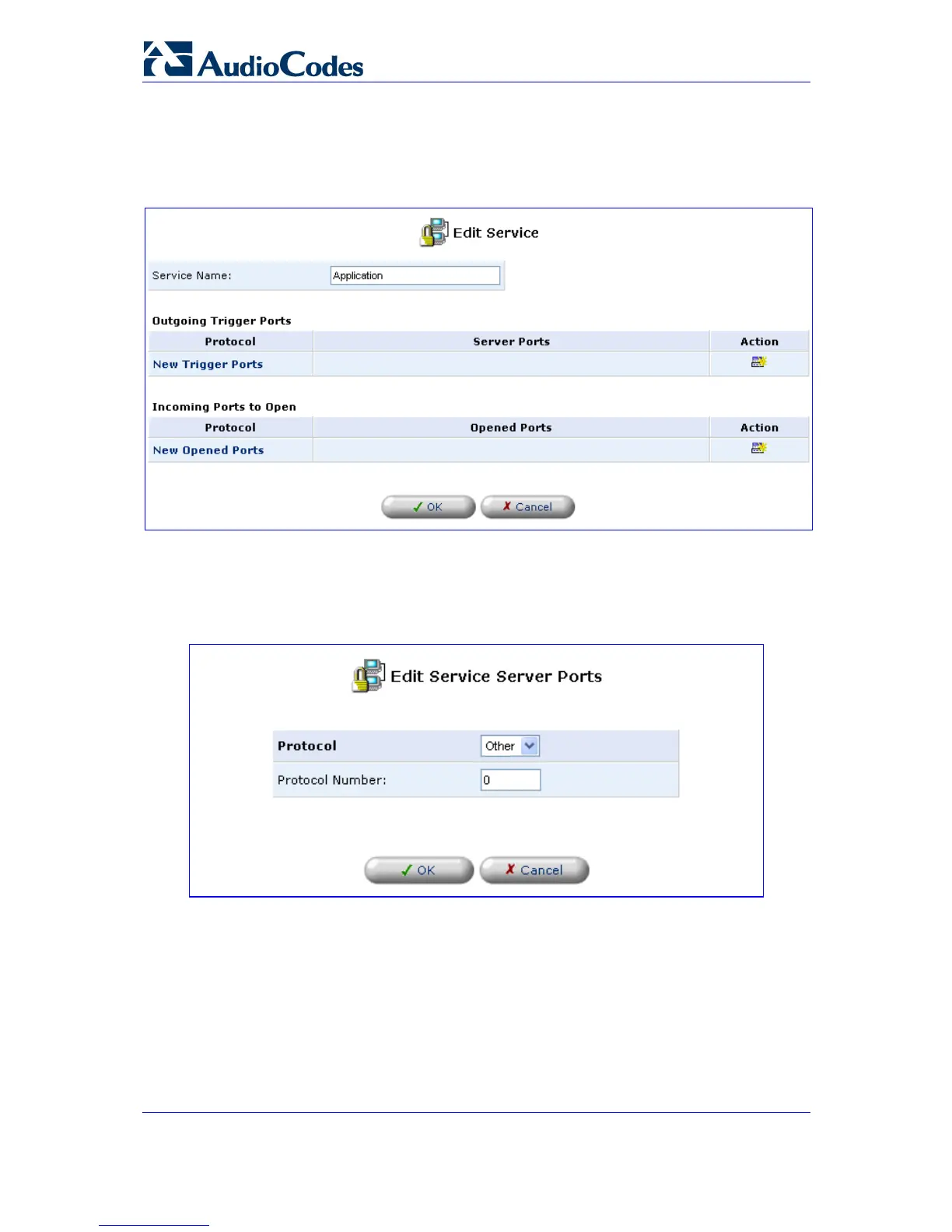

1. Click the link 'Add' to add an entry; the screen 'Edit Service' opens (refer to the figure).
Figure 12-13: Adding Port Triggering Rules
2. Enter a name for the service (e.g., 'game_server') and click the link 'New Trigger
Ports'; the screen 'Edit Service Server Ports' opens (refer to the figure).
Figure 12-14: Edit Service Server Ports
3. In the Protocol combo-box, select UDP; the screen refreshes, providing source and
destination port options (refer to the figure).

AudioCodes MP-202 Specifications

General

Model	MP-202
Category	Adapter
Ports	2 FXS ports
Protocol Support	SIP, H.323
Weight	0.5 kg
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 70°C
Humidity	10% to 90% non-condensing
Network Interface	10/100Base-T Ethernet
Voice Codecs	G.711, G.729, G.723.1, G.726
Security	HTTPS, TLS, SRTP
Management	Web-based, SNMP
Power Supply	12V DC
