MP-202 Telephone Adapter 20 Document #: LTRT-50605
User's Manual

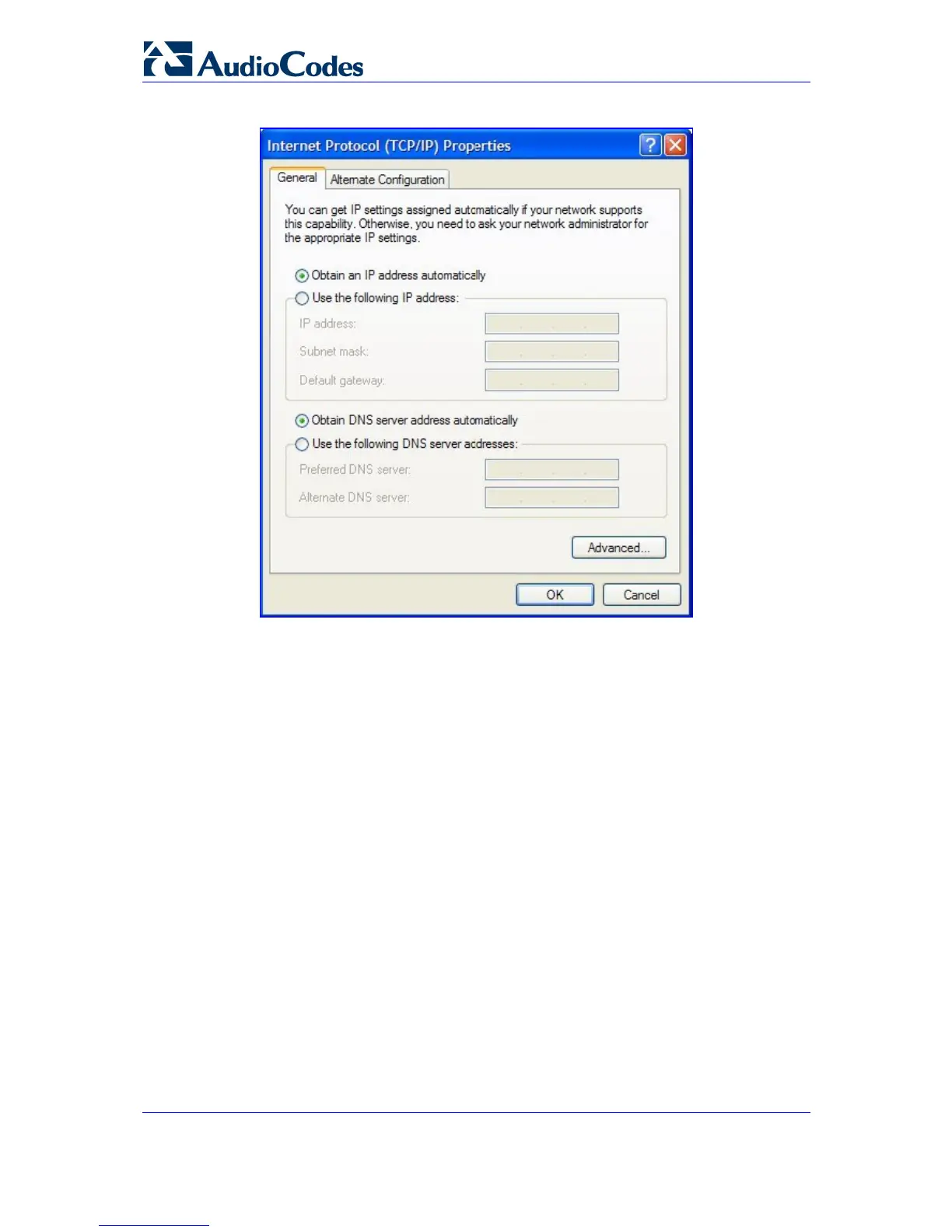

Figure 3-1: IP and DNS Configuration
3.1.1 Windows XP
1. Access 'Network Connections' from the Control Panel.
2. Right-click on the Ethernet connection icon, and select 'Properties'.
3. Under the 'General' tab, select the 'Internet Protocol (TCP/IP)' component, and press
the 'Properties' button.
4. The 'Internet Protocol (TCP/IP)' properties window will be displayed.
5. Select the 'Obtain an IP address automatically' radio button.
6. Select the 'Obtain DNS server address automatically' radio button.
7. Click 'OK' to save the settings.
3.1.2 Linux
1. Login into the system as a super-user, by entering `su' at the prompt.
2. Type 'ifconfig' to display the network devices and allocated IP's.
3. Type 'pump -i <dev>', where <dev> is the network device name.
4. Type 'ifconfig' again to view the new allocated IP address.
5. Make sure no firewall is active on device <dev>.
