Version 2.6 109 May 1
MP-202 Telephone Adapter 10. VLAN and Bridge Settings
2. Define a VLAN ID for each device. Verify that you've got a new interface on the WAN
side (WAN Ethernet 2) (refer to the figure below).

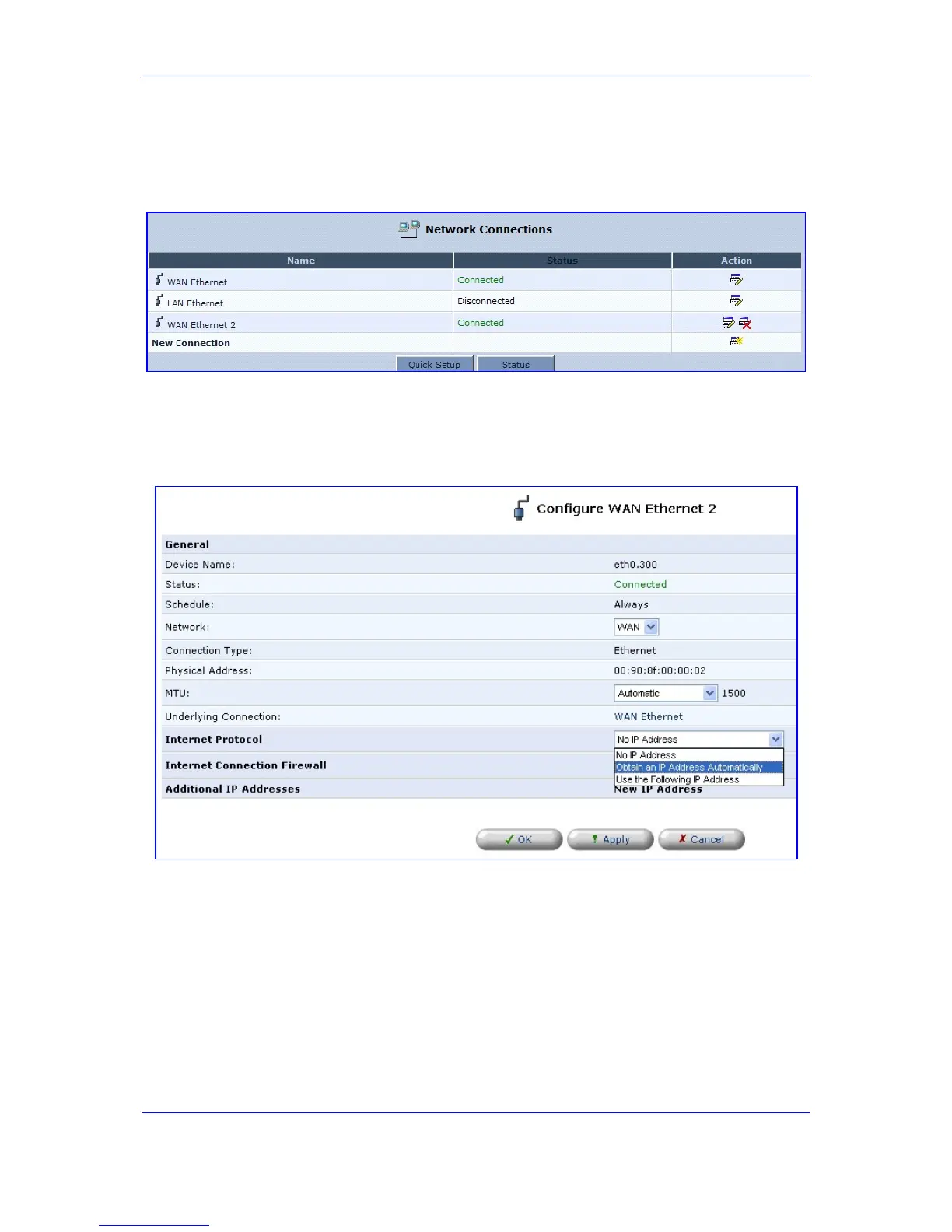

Figure 10-16: Verifying a New Interface on the WAN Side
3. Enter the new interface by clicking the Action icon (shown in the screen above); the
screen shown below opens.
Figure 10-17: Configuring WAN Ethernet
