Version 2.6 115 May 1
MP-202 Telephone Adapter 10. VLAN and Bridge Settings
1. Configure Existing Bridge
Select this option and click 'Next'; the screen 'Network Bridging' opens (refer to
the figure below) allowing you to add new connections or remove existing ones,
by checking or unchecking their respective check boxes.

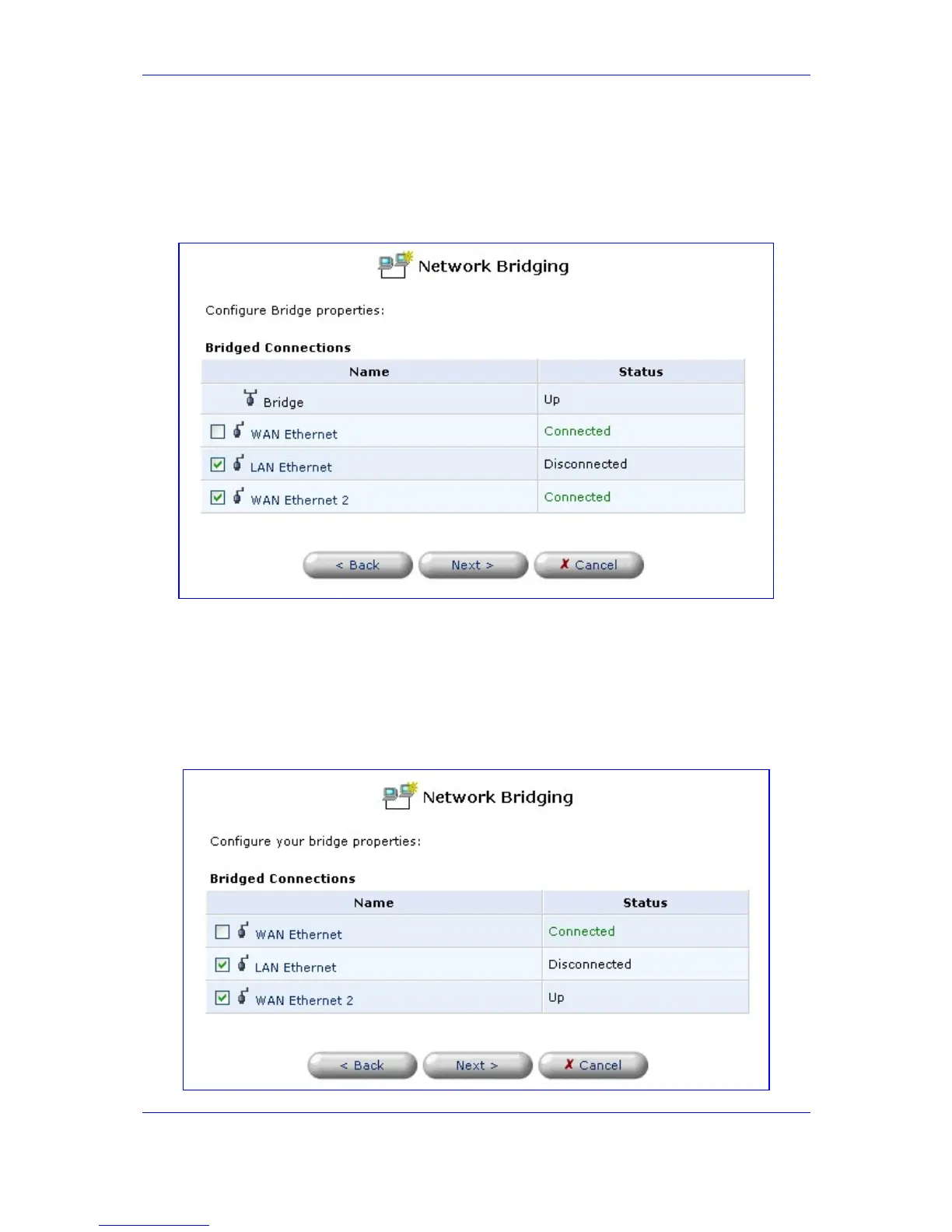

Figure 10-28: Network Bridging
For example, checking the WAN check box will create a LAN-WAN bridge.
2. Add a New Bridge
Select this option and click 'Next'; a different 'Network Bridging' screen opens
(refer to the figure below) allowing you to add a bridge over the unbridged
connections, by checking their respective check boxes.
Figure 10-29: WLAN-LAN - Network Bridging
