AudioCodes MP-202 User Manual

Version 2.6 107 May 1
MP-202 Telephone Adapter 10. VLAN and Bridge Settings
10.1.7 Additional IP Addresses
You can add alias names (additional IP addresses) to the Telephone Adapter by clicking
the 'New IP Address' link. This enables you to access the device using these aliases in
addition to 192.168.1.1 and http://MP-202.home.

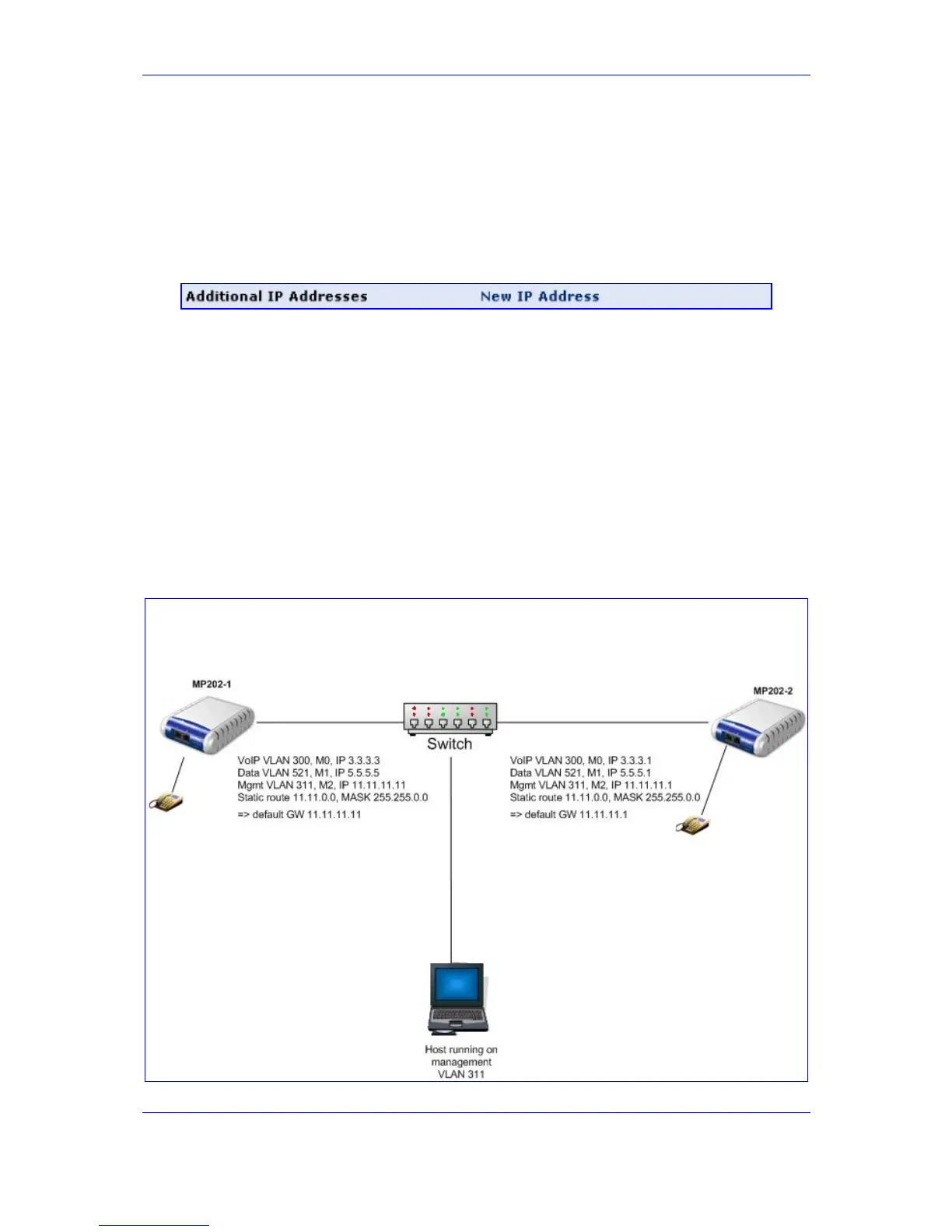

Figure 10-13: Additional IP Addresses
10.1.8 Example of Configuring 3 VLANs: VoIP, Data and Management
This example explains how to configure three separate VLANs: VoIP, data and
management.
Setup
Two MP-202s are connected to the switch. Both are configured to use VLAN 300 for VoIP,
VLAN 521 for Data and VLAN 311 for management. A station is connected to the switch in
VLAN 311 (management).
Figure 10-14: Using VLAN - Setup

AudioCodes MP-202 Specifications

General

Model	MP-202
Category	Adapter
Ports	2 FXS ports
Protocol Support	SIP, H.323
Weight	0.5 kg
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 70°C
Humidity	10% to 90% non-condensing
Network Interface	10/100Base-T Ethernet
Voice Codecs	G.711, G.729, G.723.1, G.726
Security	HTTPS, TLS, SRTP
Management	Web-based, SNMP
Power Supply	12V DC
