MP-202 Telephone Adapter 10. VLAN and Bridge Settings
3. Open menu Advanced > Remote Administration. Check the check boxes 'Using
Primary HTTP Port (80)' and 'Allow Incoming ICMP Echo Requests' (to allow HTTP
and ICMP from the WAN interface)
4. For data, configure VLAN ID 300 and then configure it to 'Obtain IP Address
Automatically' (refer to the figure below) (optionally, you can use a static IP address).

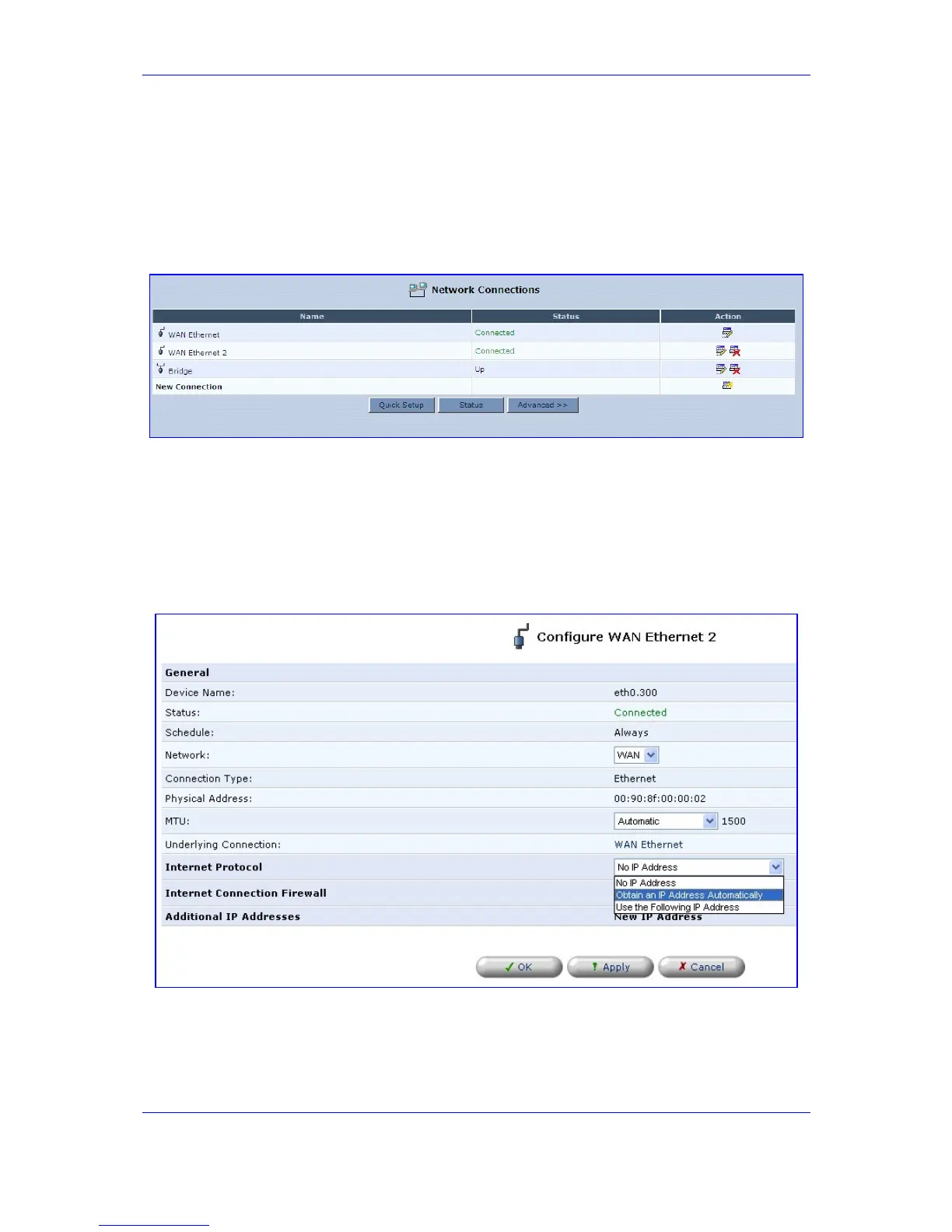

Figure 10-33: Network Connections
5. For VOIP, configure VLAN ID 200 and then configure it to 'Obtain IP Address
Automatically' (optionally, you can use a static IP address).
6. For management, configure VLAN ID 400 and then configure it to 'Obtain IP Address
Automatically' (optionally, you can use a static IP address). The figure below shows
how to obtain DHCP on the interface.
Figure 10-34: Configuring WAN Ethernet

AudioCodes MP-202 Specifications

General

Model	MP-202
Category	Adapter
Ports	2 FXS ports
Protocol Support	SIP, H.323
Weight	0.5 kg
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 70°C
Humidity	10% to 90% non-condensing
Network Interface	10/100Base-T Ethernet
Voice Codecs	G.711, G.729, G.723.1, G.726
Security	HTTPS, TLS, SRTP
Management	Web-based, SNMP
Power Supply	12V DC
