MP-202 Telephone Adapter 2. Cabling the MP-202 Telephone Adapter

2 Cabling the MP-202 Telephone Adapter

¾ To cable the MP-202, take these steps:

1. Connect the MP-202's Ethernet 10/100 Base-T RJ-45 connector labeled 'WAN' to your

cable or DSL modem (or other network connection).

2. Connect the MP-202's Ethernet 10/100 Base-T RJ-45 connector labeled 'LAN/PC' to a

PC.

3. Optionally, you can connect the MP-202's connector labeled 'LAN/PC' to a switch /

hub and connect multiple PCs to the latter.

4. Connect the MP-202's two RJ-11 ports labeled 'PHONE 1' and 'PHONE 2' to two

analog telephones.

5. Connect the power cable to the power supply; the green LEDs illuminate; the power-

up process takes approximately 40 seconds. When the power up process ends,

‘Phone 1’ and ‘Phone 2’ LEDs turn off; off-hook a phone and listen for a dial tone.

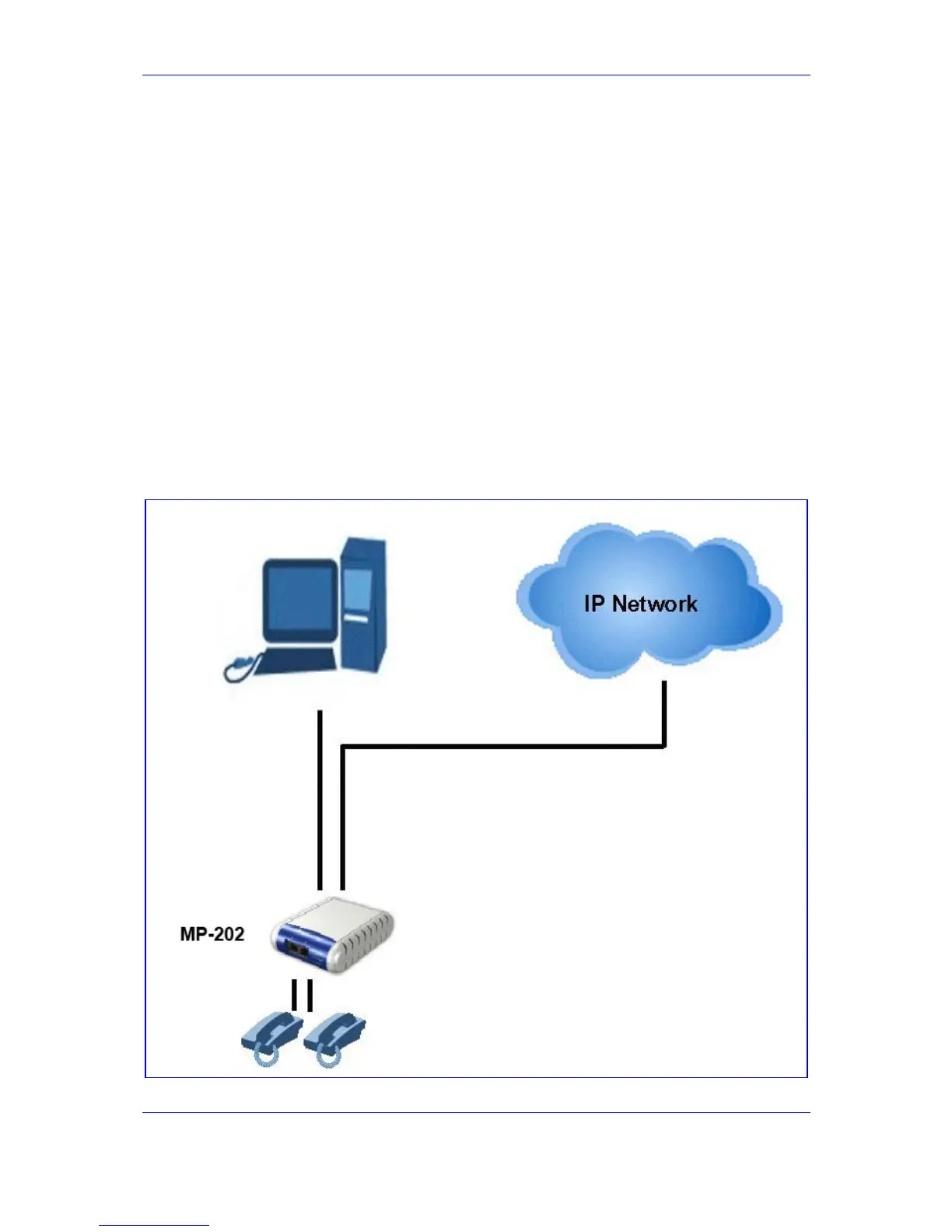

Figure 2-1: Cabling the Device
