AudioCodes MP-202 User Manual

MP-202 Telephone Adapter 44 Document #: LTRT-50605
User's Manual
5.1.3.3 Packetization Time
The Packetization Time is the length of the digital voice segment that each packet holds.
The default is 20 millisecond packets. Selecting 10 millisecond packets reduces the delay
but increases the bandwidth consumption.
5.1.4 Configuring Voice and Fax Parameters
¾ To configure Voice and Fax parameters:
 Click the tab 'Voice and Fax'; the basic 'Voice and Fax' parameters screen opens.
 Click the button 'Advanced'; the extended 'Voice and Fax' parameters screen opens.

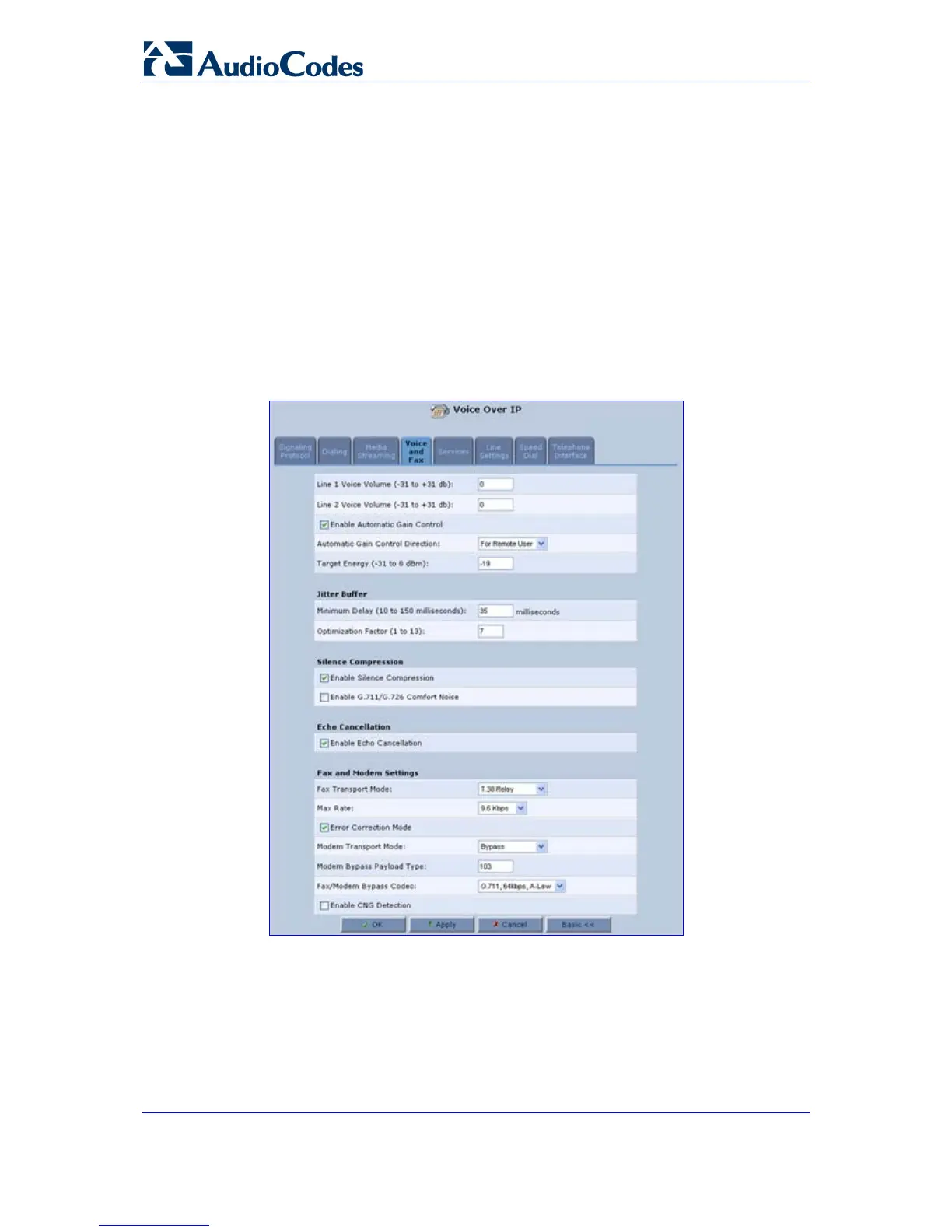

Figure 5-9: VoIP - Voice and Fax

AudioCodes MP-202 Specifications

General

Model	MP-202
Category	Adapter
Ports	2 FXS ports
Protocol Support	SIP, H.323
Weight	0.5 kg
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 70°C
Humidity	10% to 90% non-condensing
Network Interface	10/100Base-T Ethernet
Voice Codecs	G.711, G.729, G.723.1, G.726
Security	HTTPS, TLS, SRTP
Management	Web-based, SNMP
Power Supply	12V DC
