2. Add a new entry for the interface; choose what the filter will be determined by (Source
IP, Destination IP or Protocol). In the example shown in the figure below, Port 80
(HTTP) is rejected.

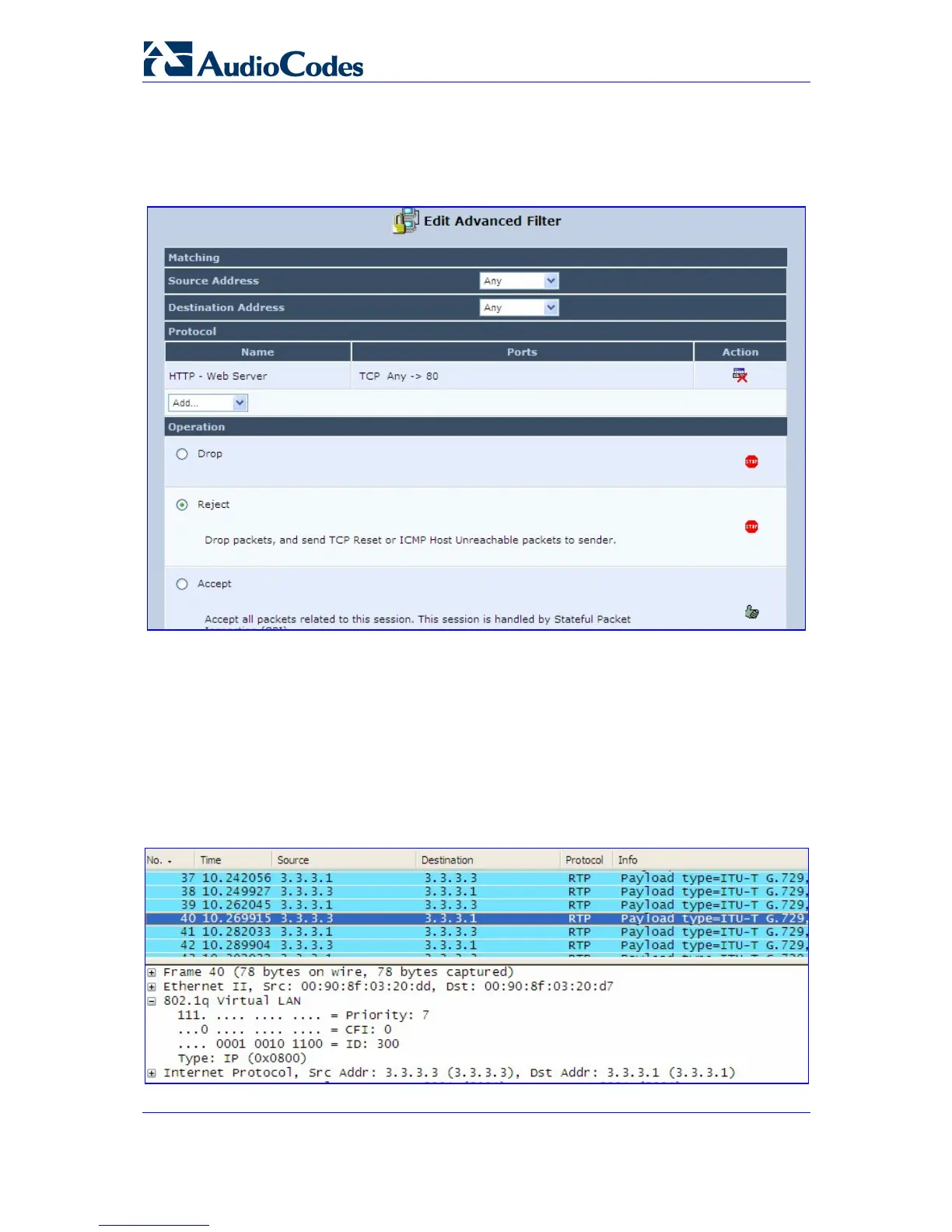

Figure 10-23: Edit Advanced Filter
Testing the 3-VLAN Setup
¾ To test the 3-VLAN setup:
1. Place a VOIP call. Verify that the VOIP is using 802.1q/p, that the VLAN ID is 300 and
that the IP is 3.3.x.x (refer to the screen shown below).
Figure 10-24: Testing the Setup
