MP-202 Telephone Adapter 4. Using the MP-202's Web Interface
4 Using the MP-202's Web Interface
4.1 Your Home Network Map
When you log into the Web-based management, you'll view the Network Map.

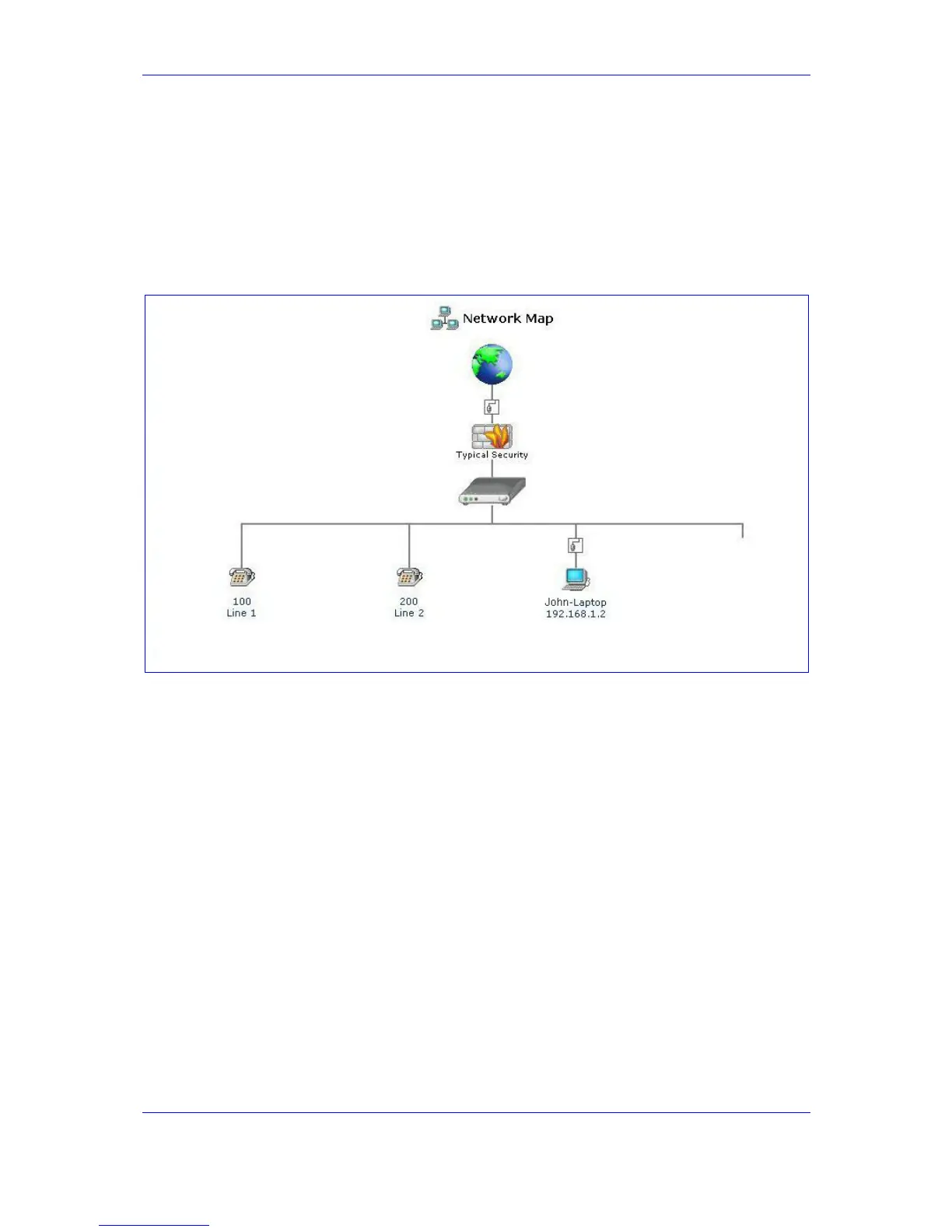

Figure 4-1: Network Map
The network map depicts the various network elements from top going down:
1. External network interface (Internet connection)
2. Firewall
3. MP-202
4. Telephones connected to the MP-202
5. Local network computers and peripherals (the figure above shows a network element
that obtained its IP address automatically via the MP-202's DHCP server).
