AudioCodes MP-202 User Manual

MP-202 Telephone Adapter 26 Document #: LTRT-50605
User's Manual
3.2.2.1.5 Layer 2 Tunneling Protocol (L2TP)
 Select 'Layer 2 Tunneling Protocol (L2TP)' from the 'Connection Type' drop-down list
(refer to the figure).

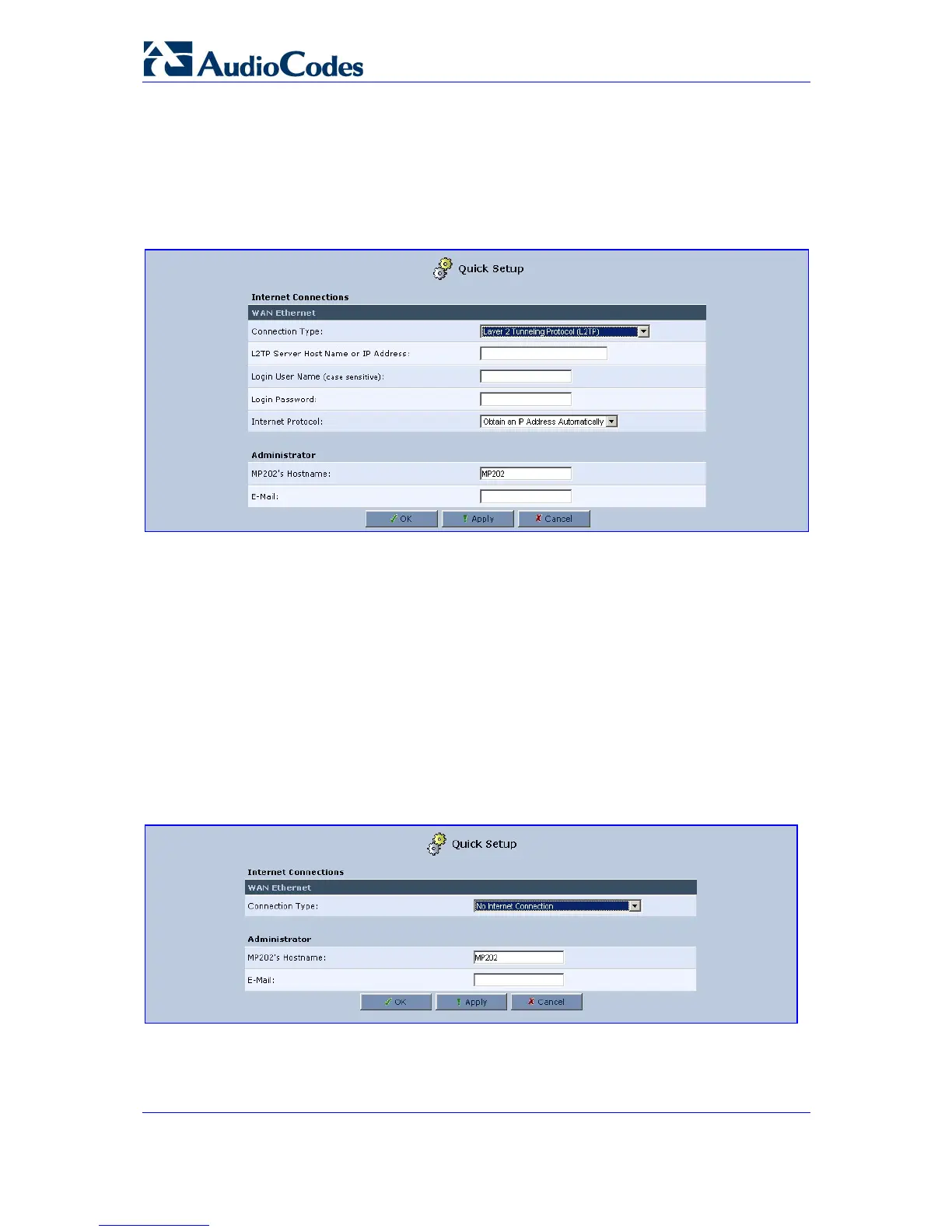

Figure 3-9: Layer 2 Tunneling Protocol
Your ISP should provide you with the following information:
 L2TP Server Host Name or IP Address
 Login user name
 Login password
3.2.2.1.6 No Internet Connection
 Select 'No Internet Connection' from the 'Connection Type' combo-box (refer to the
figure). Choose this connection type if you do not have an Internet connection, or if
you want to disable all existing connections.
Figure 3-10: Internet Connection - No Internet Connection

AudioCodes MP-202 Specifications

General

Model	MP-202
Category	Adapter
Ports	2 FXS ports
Protocol Support	SIP, H.323
Weight	0.5 kg
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 70°C
Humidity	10% to 90% non-condensing
Network Interface	10/100Base-T Ethernet
Voice Codecs	G.711, G.729, G.723.1, G.726
Security	HTTPS, TLS, SRTP
Management	Web-based, SNMP
Power Supply	12V DC
