¾ To set traffic priority rules:
1. Press the QoS button on the sidebar; the Traffic Priority screen (the first tab) appears.
This screen is divided into two identical sections, one for ’QoS Input Rules’ and the
other for ’QoS Output Rules’, which are for prioritizing inbound and outbound traffic
respectively. Each section lists all the devices on which rules can be set. You can set
rules on all devices at once by clicking the link 'New Entry' adjacent to 'All Devices'.

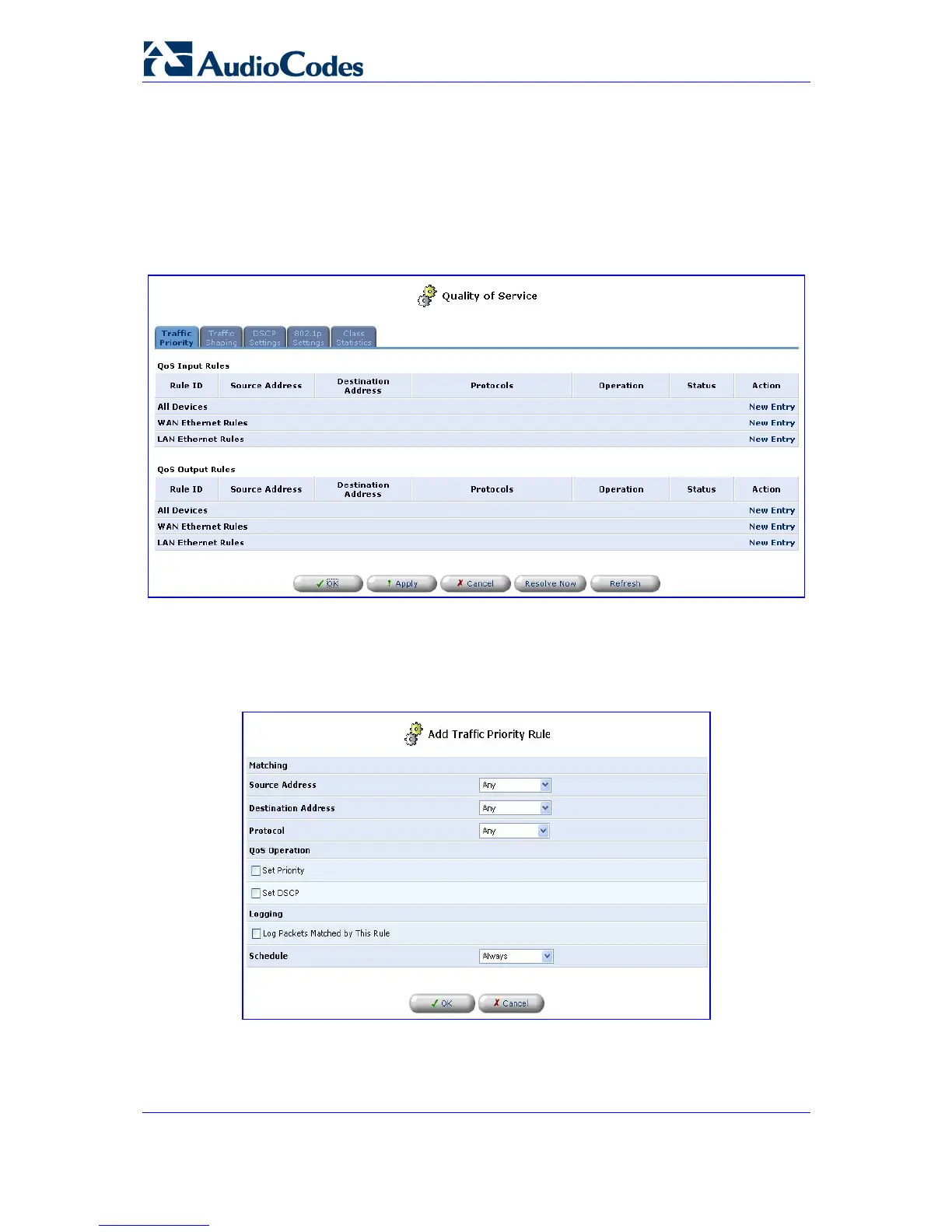

Figure 8-6: QoS - Traffic Shaping
2. After clicking the appropriate 'New Entry' link, the screen 'Add Traffic Priority Rule'
opens (refer to the figure).
Figure 8-7: QoS - Add Traffic Priority Rule
