MP-202 Telephone Adapter 13. Advanced Settings
2. Click the link 'New Scheduler Entry'; the 'Scheduler Rule Edit' screen appears (refer to
the figure).

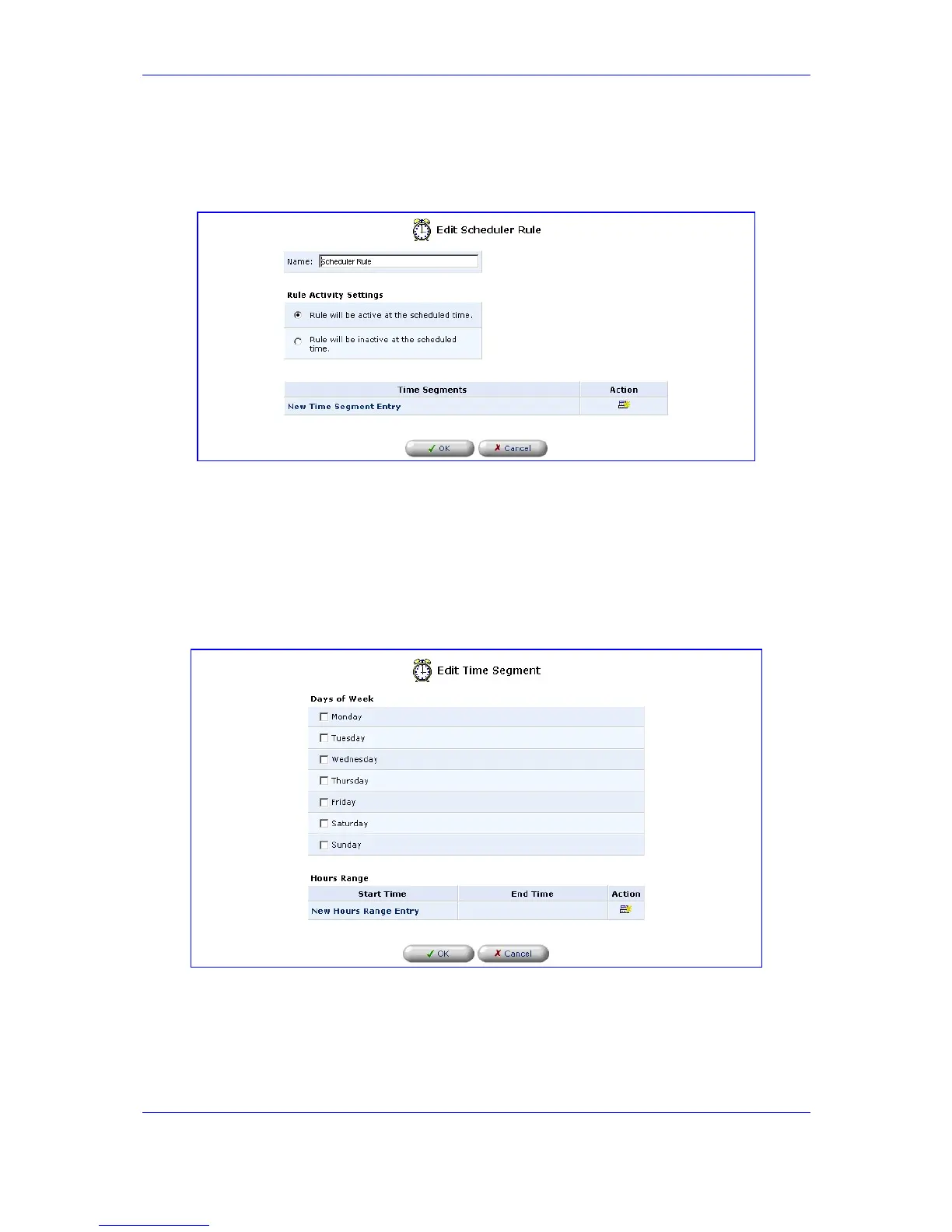

Figure 13-23: Advanced - Scheduler Rules - Edit Scheduler Rule
3. Specify a name for the rule in the 'Name' field.
4. Specify if the rule will be active/inactive during the designated time period, by selecting
the appropriate 'Rule Activity Settings' check-box.
5. Click the link 'New Time Segment Entry' to define the time segment to which the rule
will apply; the 'Time Segment Edit' screen appears (refer to the figure).
Figure 13-24: Advanced - Scheduler Rules - Time Segment Edit
a. Select active/inactive days of the week.
b. Click the 'New Time Segment Entry' to define an active/inactive hourly range.
6. Click 'OK' to save the settings.
