MP-202 Telephone Adapter 10. VLAN and Bridge Settings
12. To access the web from the LAN, set your PC to a static IP address 192.168.2.2-254;

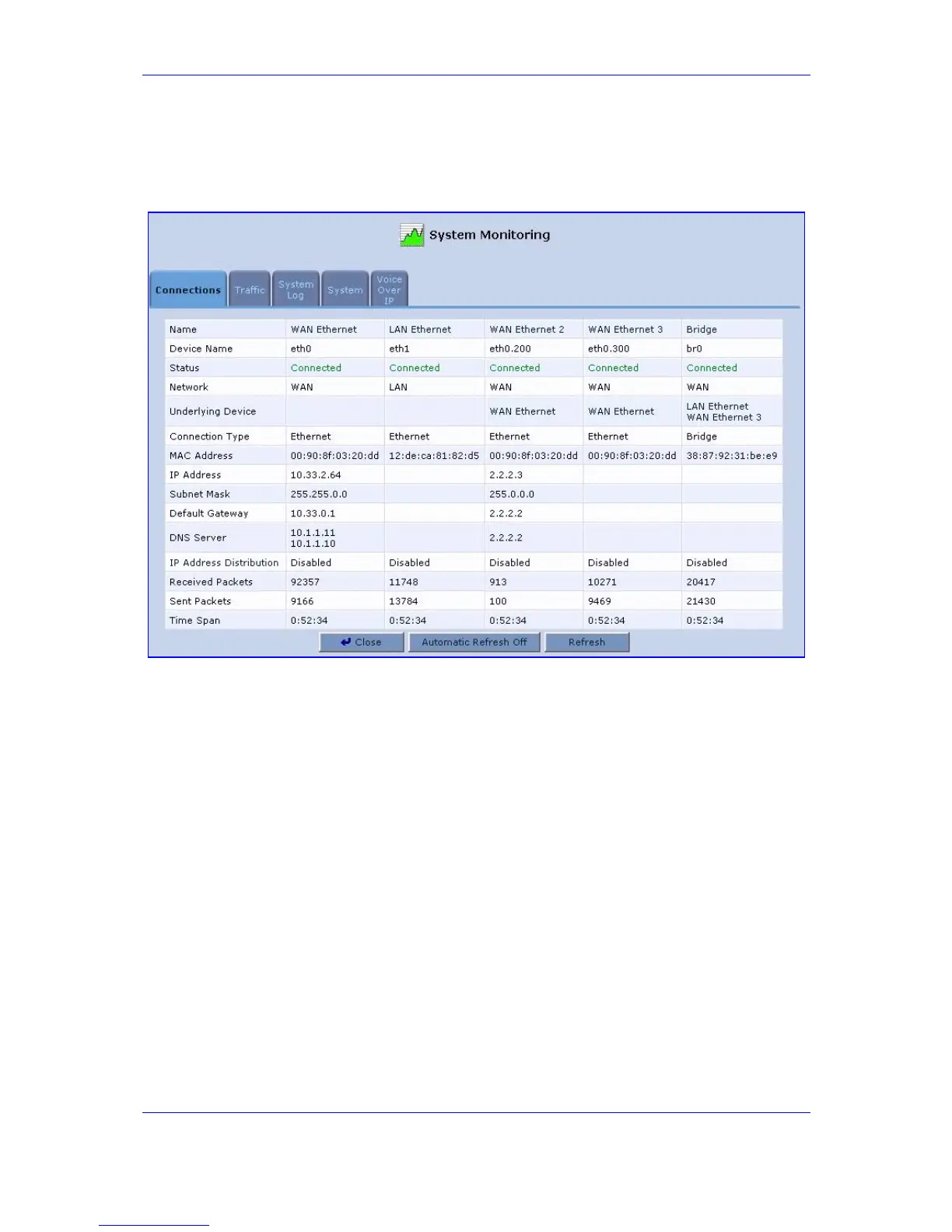

the figure below shows the System Monitoring screen.
Figure 10-37: System Monitoring
Testing the Setup
13. Place a VOIP call and see that the VOIP is using 802.1q/p and that the VID is 200.
14. Ping from the PC (behind MP202-1) to the network; you'll see that the data traffic is
using 802.1q and that the VID is 300.
15. Connect a PC to the network in VLAN 400; verify that you can access VLAN 400 from
the WAN interface.
