MP-202 Telephone Adapter 126 Document #: LTRT-50605
User's Manual

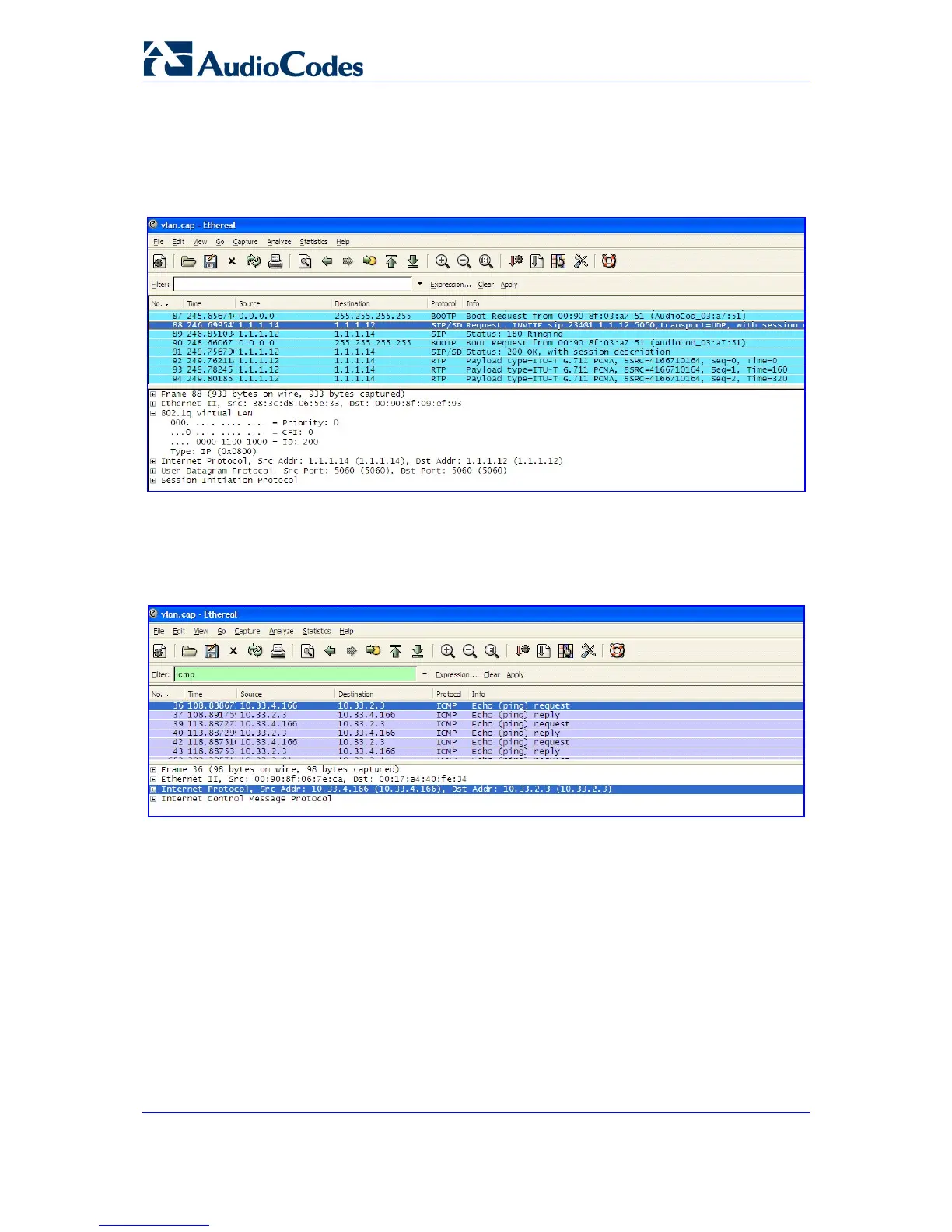

Testing the Setup
1. Place a VoIP call and verify that VOIP is using 802.1q/p and that the VID is 200.
Figure 10-46: Testing the Setup
2. Ping from the PC (connected to the LAN port of the MP-202) and verify that the data
traffic (ICMP) is untagged (refer to the screen below).
Figure 10-47: Testing the Setup
