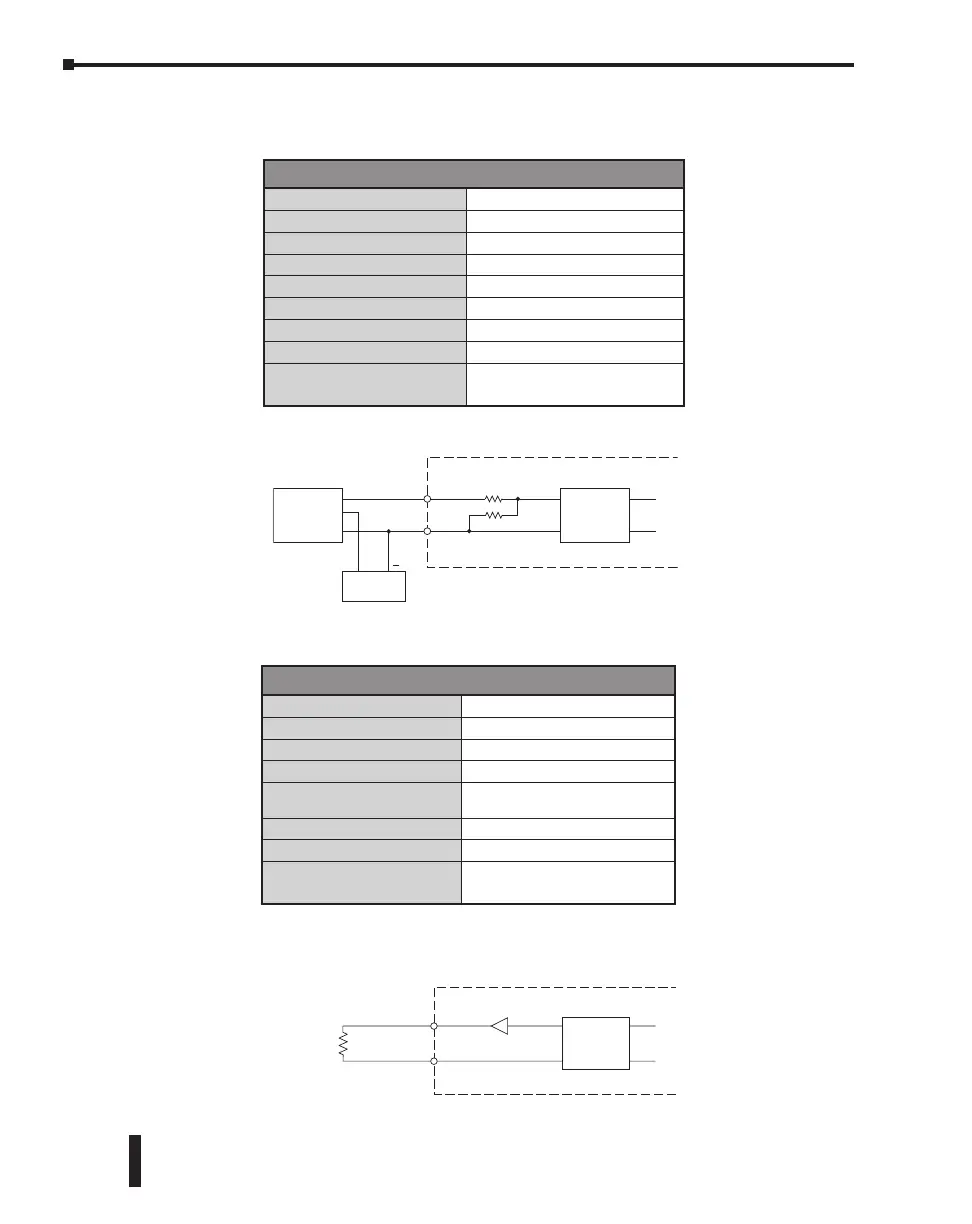

AutomationDirect CLICK Series User Manual

Analog Specifications - Voltage Input
Inputs per Module
4 (voltage)
Input Range
0–10 VDC
Resolution
12-bit
Conversion Time
50ms
Input Impedance
40kq
Input Stability
±2 LSB maximum
Full-Scale Calibration Error
±2% maximum
Offset Calibration Error
±25mV maximum
Accuracy vs. Temperature
Error
±100ppm / °C maximum
Analog Specifications - Voltage Output
Outputs per Module
2 (voltage)
Output Range
0–10 VDC
Resolution
12-bit
Conversion Time
1ms
Load Impedance
4kq minimum
(output current 2.5 mA maximum)
Full-Scale Calibration Error
±2% maximum
Offset Calibration Error
±25mV maximum
Accuracy vs. Temperature
Error
±100ppm / °C maximum
C0-12DD1E-2-D (continued)
ADxV
ACOM
10kΩ
30kΩ
Internal Module Circuitry
+
A/D
Converter
Transmitter
P/S
Voltage
Transmitter
Analog Voltage Input Circuit
DA1V - DA2V
AD1V - AD4V
DAxV
0V
ACOM
Load
4kΩ minimum
Internal Module Circuitry
D/A
Converter
Analog Voltage Output Circuit
CLICK PLC Hardware User Manual, 6th Edition, Rev. G – C0-USER-M
2–102
