AutomationDirect CLICK Series User Manual

Input Specifications
Inputs per Module
8 (Source/Sink)
Operating Voltage Range
CE: 24VDC (-10%/+10%)
UL: 24VDC (-10%/+10%)
Input Voltage Range
21.6–26.4 VDC
Input Current
Typ 4.0 mA @ 24VDC
Maximum Input Current
5.0 mA @ 26.4 VDC
Input Impedance
6.8 kq @ 24VDC
ON Voltage Level
>19.0 VDC
OFF Voltage Level
<7.0 VDC
Minimum ON Current
3.5 mA
Maximum OFF Current
0.5 mA
OFF to ON Response
Max. 10ms Typ 2ms
ON to OFF Response
Max. 10ms Typ 3ms
Status Indicators
Logic Side (8 points, green LED)
Power Indicator (green LED)
Commons
1 (8 points/common)
General Specifications
Bus Power Required (24VDC)
Max. 80mA (all points on)
Terminal Block Replacement
AutomationDirect p/n C0-16TB
Weight
3.2 oz (90g)

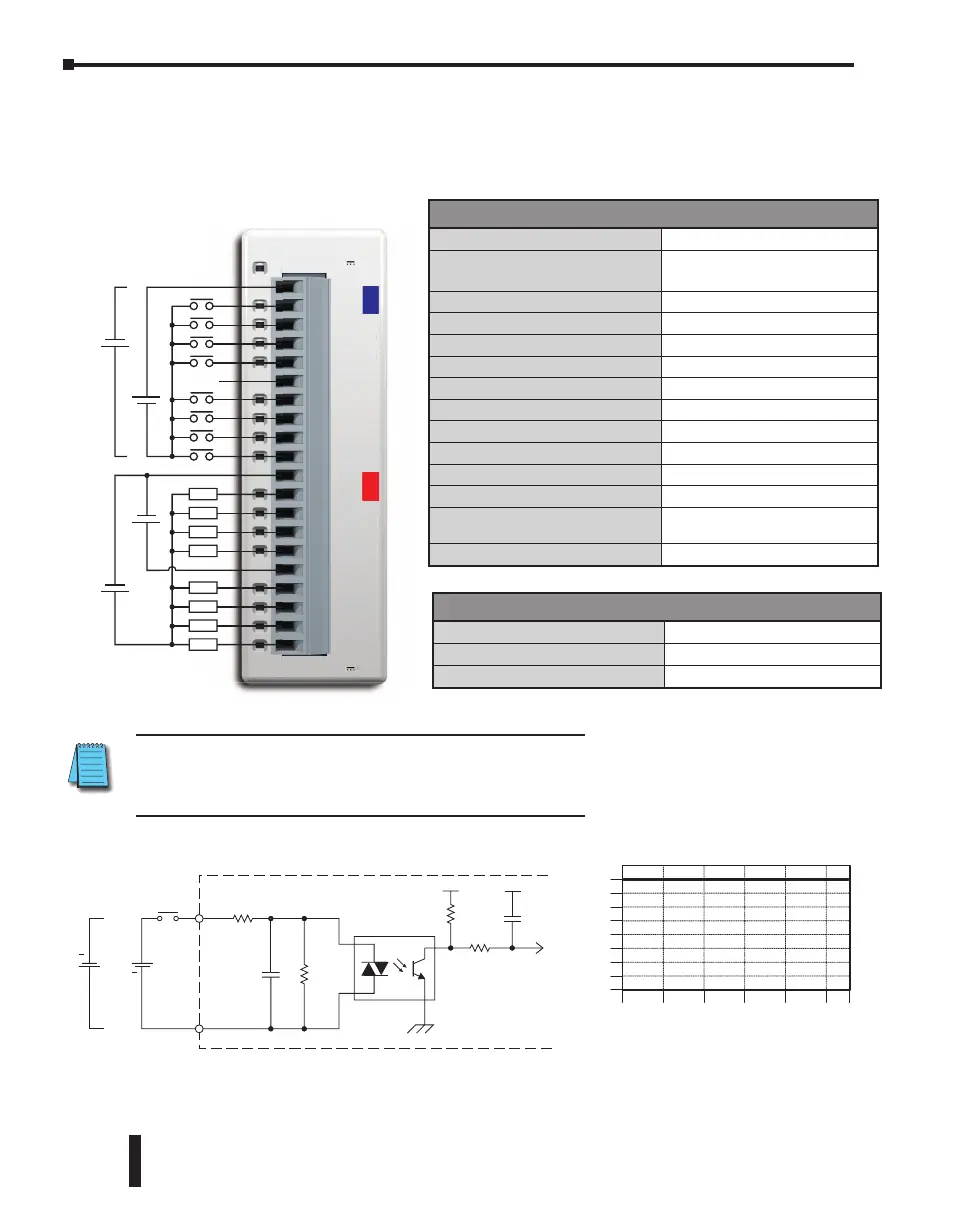

C0-16CDD1 – 8-Point DC Input and 8-Point DC Sinking Output Module
8-point 24VDC current sinking/sourcing input, 1 common, 8-point 5–27 VDC sinking
output, 0.1A/pt., 1 common, non-fused, removable terminal block included.
C0-16CDD1
PWR
24V4mA
OUTPUT
INPUT
5-27V 0.1A
C
0-16CDD1
P
WR
24V
4mA
OU
TP
UT
INPUT
5
-27
V
0
.1A
N.C. = Not Connected
24
VDC
N.C.
+
–
+
–
+
–
+
–
L
L
L
L
L
L
L
L
24
VDC
5-27
VDC
C1
1
2
3
4
5
6
7
8
C2
1
2
3
4
+V
5
6
7
8
Wiring Diagram
0
Surrounding Temperature (°C/°F)
32
10
50
20
68
30
85
40
104
50
122
55 °C
131 °F
2
4
6
8
Points
Input Module Temperature Derating Chart
0
INPUT
COM
Internal Module Circuitry
Optical Isolator
24 VDC
+
+
Equivalent Input Circuit
NOTE: When using this module you must also use CLICK
programming software and PLC firmware version V1.40 or
later.
CLICK PLC Hardware User Manual, 6th Edition, Rev. G – C0-USER-M
2–130
Chapter 2: Specifications
