AutomationDirect CLICK Series User Manual

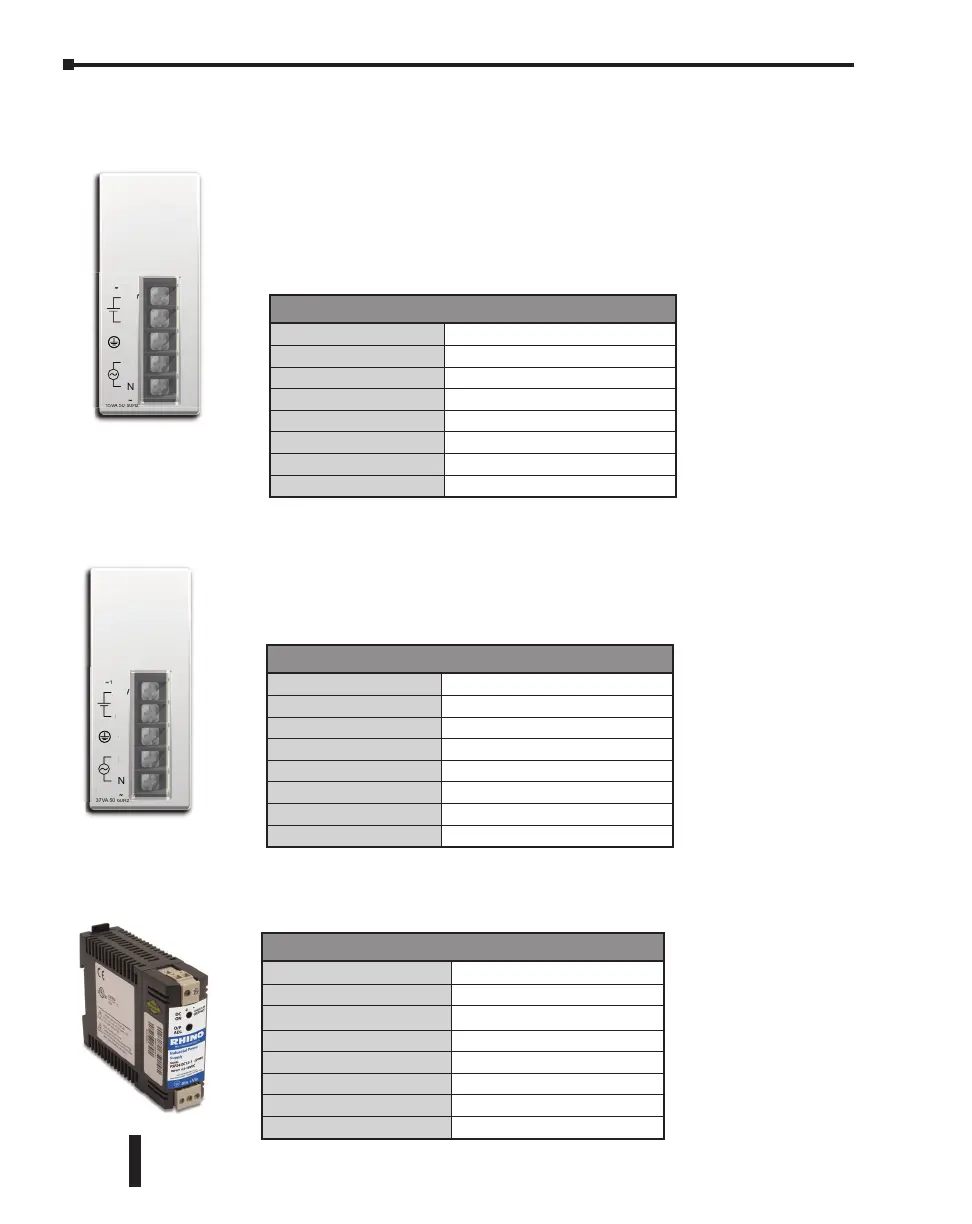

Power Supply Specifications
C0-00AC Power Supply
Limited auxiliary AC power supply allows you to power the CLICK PLC
with 100-240 VAC supply power. The 0.5 A DC power supply is capable of
controlling the PLC plus a limited configuration based on the power budget of
each I/O module. The C0-00AC is a low-cost solution for applications requiring
only minimal I/O and power consumption. This power supply will not support a
fully-populated CLICK PLC system with all possible I/O module combinations.
C0-01AC Power Supply
No-limit auxiliary AC power supply allows you to power the CLICK PLC
with 100-240 VAC supply power. The 1.3 A DC power supply is capable of
supporting a fully-populated CLICK PLC system with all possible I/O module
combinations with no concerns of exceeding the power budget.
24V
0V
L
N
G
15VA 50-60Hz
100-240V
INPUT
OUTPUT
24V 0.5A
C0-00AC
2
4
V
V
V
V
V
V
V
V
V
V
V
V
V
0V
L
N
G
15VA50
-
60Hz
100-240
V
INPUT
O
UTPU
T
24V 0.5A
24V
0V
L
N
G
37VA 50-60Hz
100-240V
INPUT
OUTPUT
24V 1.3A
C0-01AC
2
4
V
V
V
V
V
V
V
V
V
V
V
V
V
0V
L
N
G
37VA50
-
60Hz
100-240
V
INPUT
O
UTPU
T
24V
1
.3
A
C0-00AC Power Supply Specification
Input Voltage Range
85–264 VAC
Input Frequency
47–63 Hz.
Input Current (typical)
0.3 A @ 100 VAC, 0.2 A @ 200VAC
Inrush Current
30A
Output Voltage Range
23–25 VDC
Output Current
0.5 A
Over Current Protection
@ 0.65 A (automatic recovery)
Weight
5.3 oz (150g)
C0-01AC Power Supply Specification
Input Voltage Range
85–264 VAC
Input Frequency
47–63 Hz.
Input Current (typical)
0.9 A @ 100VAC, 0.6 A @ 200VAC
Inrush Current
30A
Output Voltage Range
23–25 VDC
Output Current
1.3 A
Over Current Protection
@ 1.6 A (automatic recovery)
Weight
6.0 oz (170g)
PSP24-DC12-1 DC-DC Converter
With this DC-DC converter you can operate the CLICK PLC with 12VDC
input power.
PSP24-DC12-1 DC-DC Converter Specifications
Input Voltage Range
9.5–18 VDC
Input Power (no load)
1.0 W max.
Startup Voltage
8.4 VDC
Undervoltage Shutdown
7.6 VDC
Output Voltage Range
24–28 VDC (adjustable)
Output Current
1.0 A
Short Circuit Protection
Current limited at 110% typical
Weight
7.5 oz (213g)
CLICK PLC Hardware User Manual, 6th Edition, Rev. G – C0-USER-M
2–148
Chapter 2: Specifications
