AutomationDirect CLICK Series User Manual

Current Consumption (mA)
Part Number
Power Budget
24VDC
(logic side)
External
24VDC
(field side)
C0-00DD1-D
120 60
C0-16ND3
40 0
C0-16TD1
80 100
C-more Micro
90 0
Total:
330 160 *
* Plus calculated load of connected I/O devices.

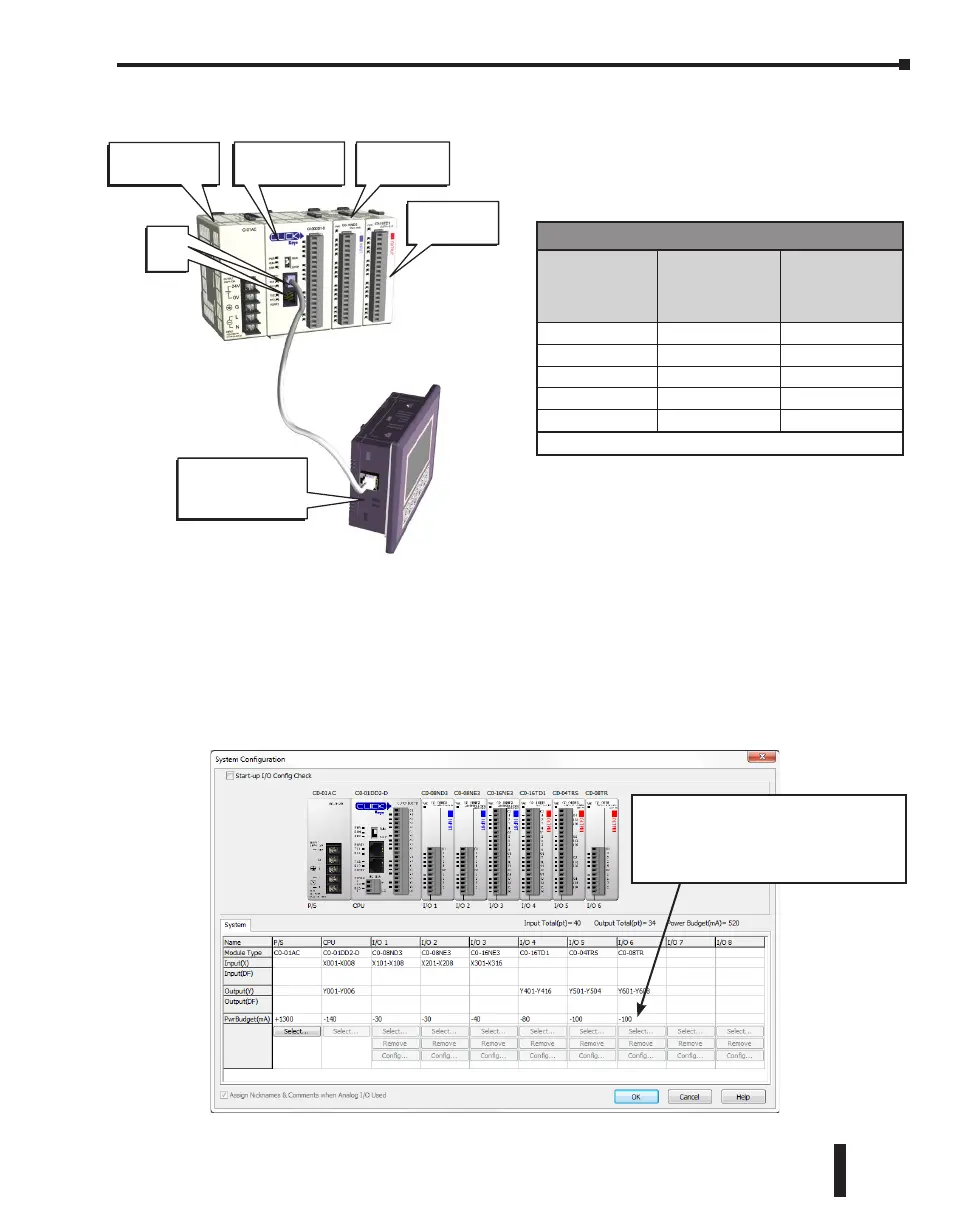

Power Budgeting using the CLICK Programming Software
The following example shows the logic side current consumption as calculated in the System
Configuration Setup section of the CLICK Programming Software. Based on the amperage
rating of the power supply selected in the first column, your power budget is calculated by
subtracting each consecutive module’s power consumption from the total available power
budget. If you exceed the maximum allowable power consumption, the power budget row
fills in red.
Power Budget Example
PLC Unit
(C0-00DD1-D)
I/O Module
(C0-16ND3)
I/O Module
(C0-16TD1)
Power Supply
(C0-01AC)
C-more
Micro-Graphic
Panel
Port 1
or
Port 2
Only monochrome models
can be powered from port 1 or 2.
Add the current consumption for each
module in the system as shown in this
example.
Power budget row turns red if maximum
allowable power consumption is
exceeded for the power supply selected.
CLICK PLC Hardware User Manual, 6th Edition, Rev. G – C0-USER-M
2–25
Chapter 2: Specifications
