AutomationDirect CLICK Series User Manual

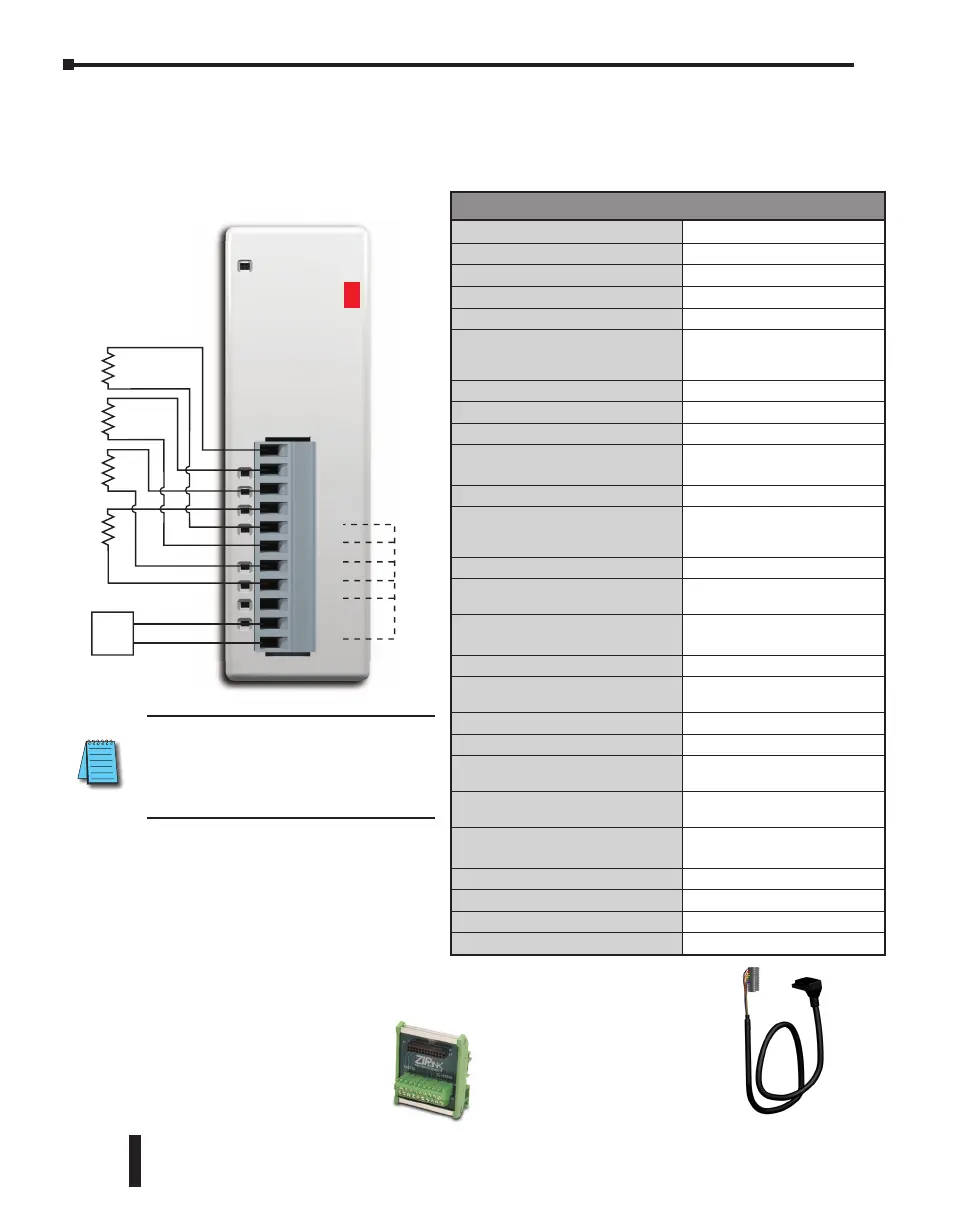

C0-04DA-1 – 4-Channel Analog Current Output Module
4-channel analog current sourcing output module, 12-bit resolution, range: 4–20 mA. External
24VDC power required, removable terminal block included.
CH1
CH2
CH3
CH4
0V
0V
0V
0V
0V
24V
0V
C0-04DA-1
4-20mA
OUTPUT
+
–
24VDC
Power
Supply
Ch1
Load
Ch2
Load
Ch4
Load
Ch3
Load
All ‘0V’
terminals are
connected
internally.
Wiring Diagram
Output Specifications
Outputs per Module
4
Output Range
4–20 mA (source)
Resolution
12-bit, 3.9 uA per count
Output Type
Current sourcing at 20mA max.
Output Value in Fault Mode
Less than 4mA
Load Impedance
0-600q at 24VDC; minimum
load: 0q 32° to 131°F
(0° to 55°C) ambient temp.
Maximum Inductive Load
1mH
Allowed Load Type
Grounded
Maximum Inaccuracy
±1% of range
Max. Full Scale Calibration
Error (Including Offset)
±0.2% of range maximum
Max. Offset Calibration Error
±0.2% of range maximum
Accuracy vs. Temperature
±75 PPM/°C maximum full scale
calibration change
(±0.005% of range/°C)
Max. Crosstalk at DC, 50/60 Hz
-72 dB, 1 LSB
Linearity Error (End to End)
±4 LSB max.,
(±0.1% of full scale)
Output Stability and
Repeatability
±2% LSB after 10 minute
warmup period typical
Output Ripple
±0.1% of full scale
Output Settling Time
0.3 ms maximum, 5μs min.
(full scale range)
All Channel Update Rate
10ms
Max. Continuous Overload
Outputs open circuit protected
Field to Logic Side Isolation
1800VAC applied for 1 second
(100% tested)
Type of Output Protection
Electronically limited to 20mA
or less
Output Signal at Power Up and
Power Down
4mA
External VDC Power Required
145mA
Base Power Required (24VDC)
20mA
Terminal Block Replacement
AutomationDirect p/n C0-8TB
Weight
2.9 oz (82g)
ZIPLink Pre-Wired PLC Connection
Cables and Modules for CLICK PLC
11-pin connector cable
ZL-C0-CBL11 (0.5 m length)
ZL-C0-CBL11-1 (1.0 m length)
ZL-C0-CBL11-2 (2.0 m length)
ZL-RTB20 20-pin feed-
through connector module
NOTE: When using this module you
must also use CLICK programming
software and PLC firmware version
V1.40 or later.
CLICK PLC Hardware User Manual, 6th Edition, Rev. G – C0-USER-M
2–142
