Mounting Guidelines
Environmental Specifications
The CLICK family of PLC products should be stored, installed, and used within their range
of environmental specifications, such as storage temperature, operating temperature, humidity,
environmental air, vibration, shock, and noise immunity. Certain output module circuit types
may have derating curves depending on the ambient temperature and the number of outputs
ON. Refer to the I/O module specifications in Chapter 2: Specifications for CLICK PLC
environmental specifications and I/O module derating curves.
Agency Approvals
In addition to the panel layout guidelines, other specifications can affect the definition and
installation of a PLC system. Always consider the following:
• Environmental Specifications
• Power Requirements
• Agency Approvals
• Enclosure Selection and Component Dimensions
CLICK Unit Dimensions
The following diagrams illustrate the dimensions of the CLICK power supply, CLICK PLC,
and I/O modules. The CLICK PLC system is designed to be mounted on standard 35mm
DIN rail, or it can be surface mounted. See the following pages for installations and mounting
information, including page 3-17 for DIN rail and surface-mounting instructions.
NOTE: The dimensions for the C0-00AC and C0-01AC power supplies are the same.

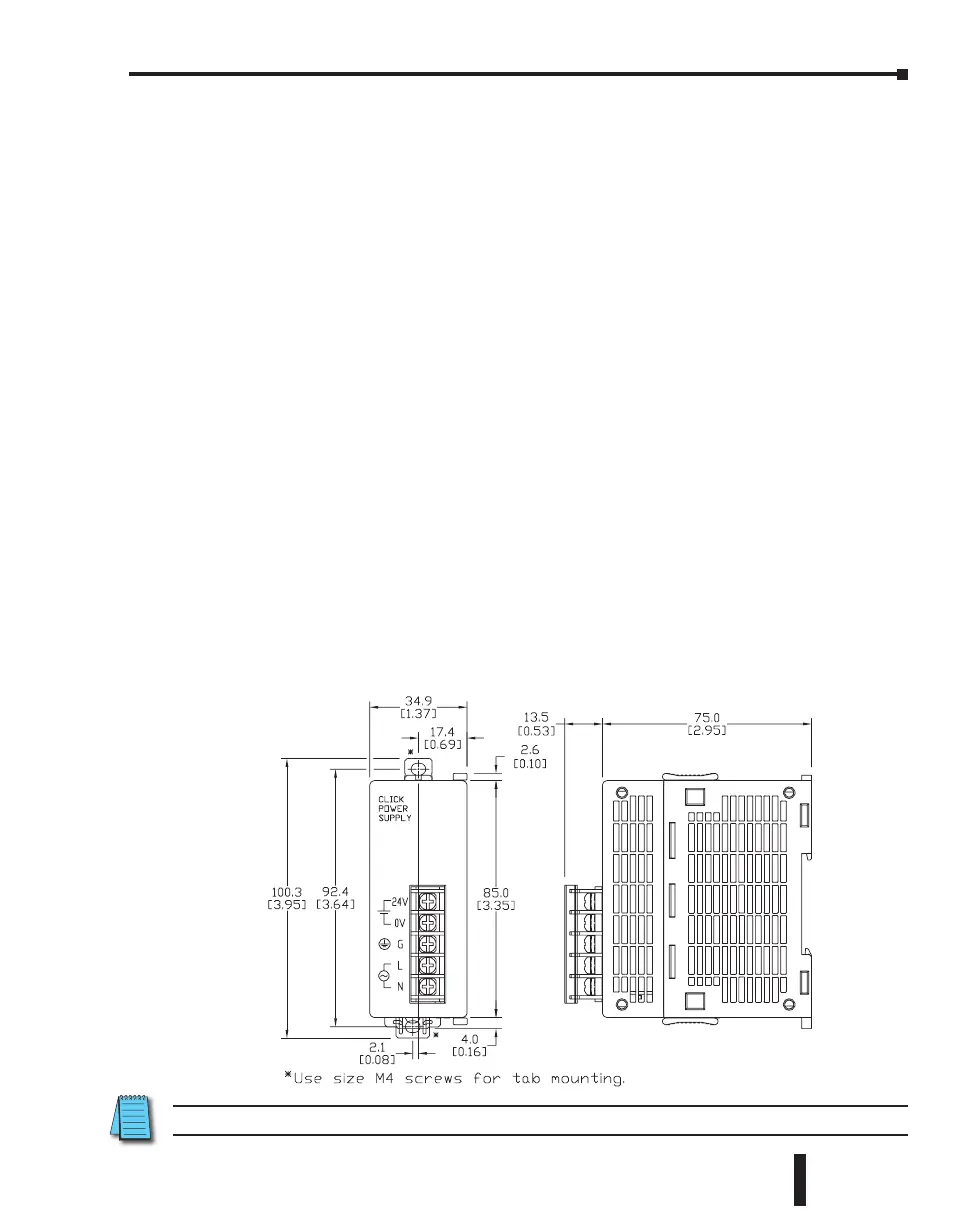

Power Supply
Unit Dimensions
mm [inches]
CLICK PLC Hardware User Manual, 5th Edition, Rev. F – C0-USER-M
3–11
Chapter 3: Installation and Wiring
