AutomationDirect CLICK Series User Manual

Output Specifications
Outputs per Module
16 (Source)
Operating Voltage Range
12–24VDC
Output Voltage Range
9.6–30.0 VDC
Maximum Output Current
0.1 A/point , 0.8 A/common
Minimum Output Current
0.2 mA
Maximum Leakage Current
0.1 mA @ 30.0 VDC
On Voltage Drop
0.6 VDC @ 0.1 A
Maximum Inrush Current
150mA for 10ms
OFF to ON Response
< 0.5 ms
ON to OFF Response
< 0.5 ms
Status Indicators
Logic Side (16 points, red LED)
Power Indicator (green LED)
Commons
2 (8 points/common) Isolated
Bus Power Required (24VDC)
Max. 80mA (All Outputs On)
Terminal Block Replacement
AutomationDirect p/n C0-16TB
Weight
3.2 oz (90g)

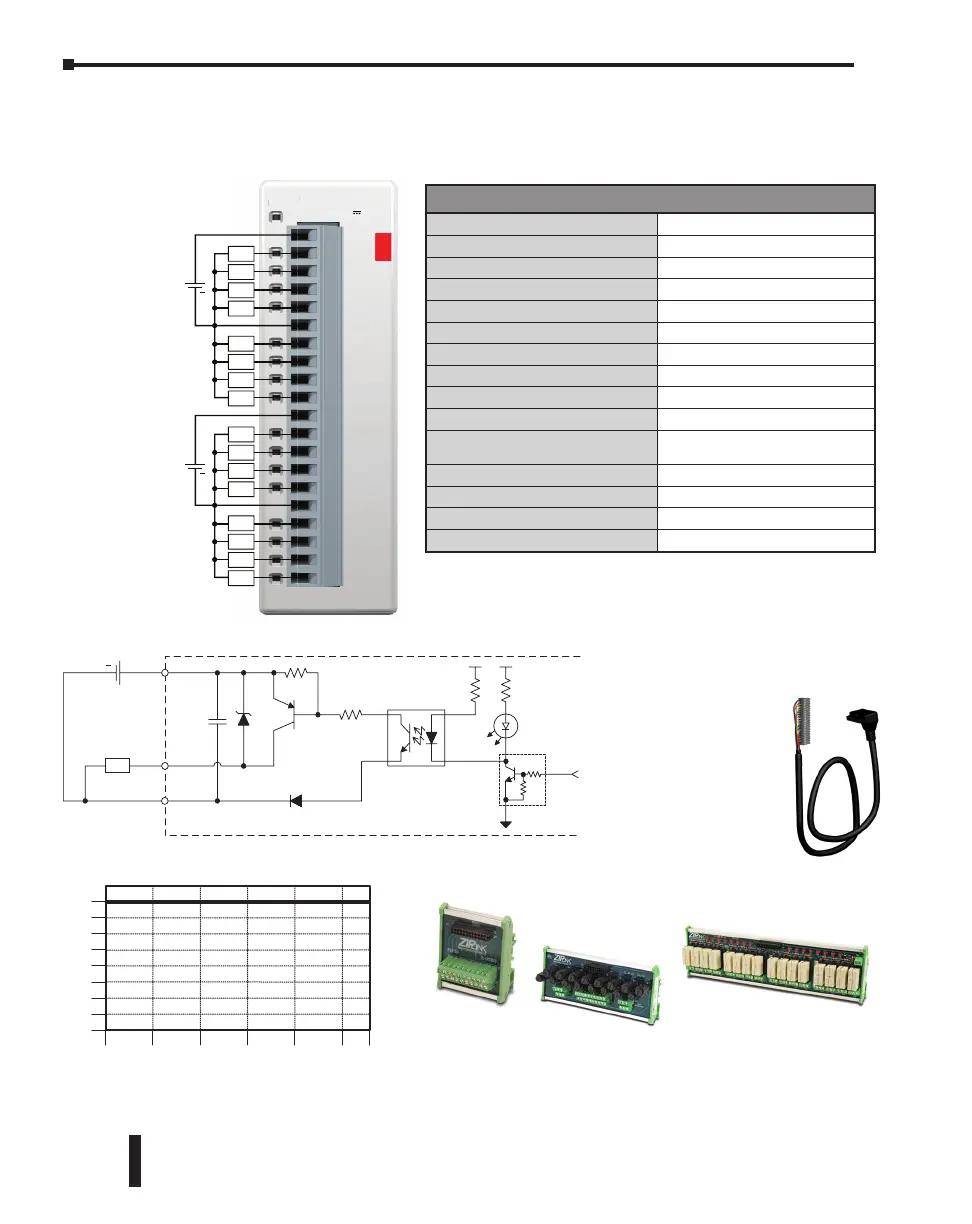

C0-16TD2 – 16-Point Sourcing Output Module
16-point 12–24 VDC current sourcing output module, 2 commons, isolated, 0.1 A/pt,
removable terminal block included.
12-24 VDC
L
Internal Module Circuitry
Optical Isolator
+
Equivalent Output Circuit
OUTPUT
COM
+V
* Zener Diode Power Dissipation: 200 mW
*
0
Surrounding Temperature (°C/°F)
32
10
50
20
68
30
85
40
104
50
122
55 °C
131
°F
4
8
12
16
Points
Output Module Temperature Derating Chart
0
C0-16TD2
12-24V 0.1A
PWR
OUTPUT
C0
-1
6
TD2
12-24V 0.
1A
PWR
OU
TP
U
T
12 - 24VDC
L
L
L
L
L
L
L
L
+
12 - 24VDC
L
L
L
L
L
L
L
L
+
12
C2
14
10
9
11
15
16
13
V2
C1
7
3
2
5
4
8
6
1
V1
ZIPLink Pre-Wired PLC Connection
Cables and Modules for CLICK PLC
20-pin connector cable
ZL-C0-CBL20 (0.5 m length)
ZL-C0-CBL20-1 (1.0 m length)
ZL-C0-CBL20-2 (2.0 m length)
Wiring Diagram
ZL-RTB20 20-pin
feed-through
connector module
ZL-RFU20
fuse module
ZL-RRL16-24-2 relay module
Note: 10A/Point (DC)
8A/Point (AC)
(Replaceable relays)
CLICK PLC Hardware User Manual, 6th Edition, Rev. G – C0-USER-M
2–124
Chapter 2: Specifications
