AutomationDirect CLICK Series User Manual

Output Specifications
Outputs per Module
8 (Sink)
Operating Voltage Range
3.3–27 VDC
Output Voltage Range
2.8–30 VDC
Maximum Output Current
0.3 A/point , 1.2 A/common
Minimum Output Current
0.5 mA
Maximum Leakage Current
0.1 mA @ 30.0 VDC
On Voltage Drop
1.5 VDC @ 0.3 A
Maximum Inrush Current
1A for 10ms
OFF to ON Response
< 0.5 ms
ON to OFF Response
< 0.5 ms
Status Indicators
Logic Side (8 points, red LED)
Power Indicator (green LED)
Commons
2 (4 points/common)
External DC Power Required
21.6–26.4 VDC Max 15mA
(All Outputs On)
Bus Power Required (24VDC)
Max. 50mA (All Outputs On)
Terminal Block Replacement
AutomationDirect p/n C0-8TB
Weight
2.8 oz (80g)

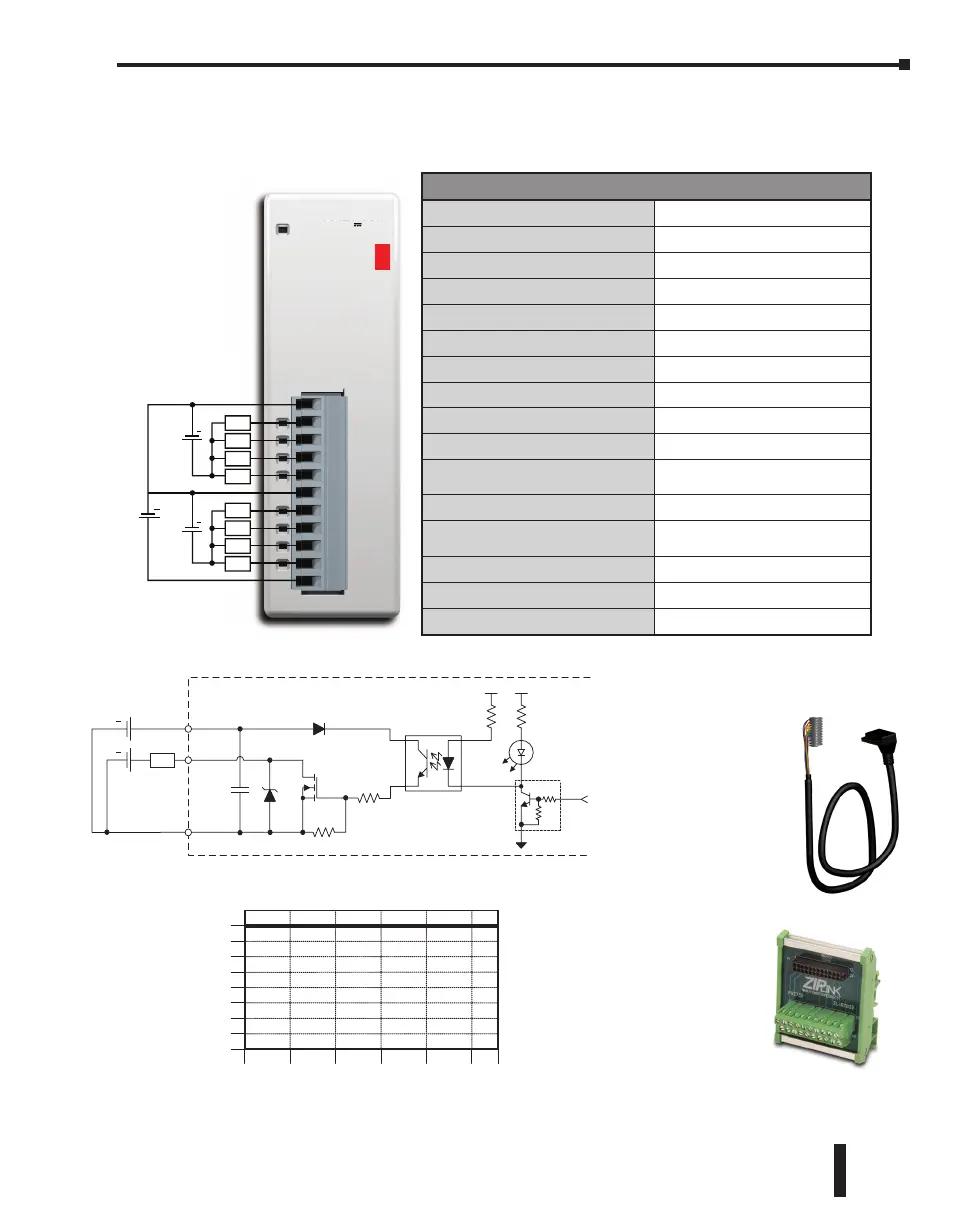

C0-08TD1 – 8-Point Sinking DC Output Module
8-point 3.3–27 VDC current sinking output module, 2 commons, 0.3 A/pt, removable
terminal block included.
C0-08TD1
3.3-27V 0.3A
PWR
OUTPUT
C0 08TD1
3.3-
27V
0.
3A
PWR
O
UTPU
T
3.3 - 27VDC
L
L
L
L
+
24VDC
+ +
3.3 - 27VDC
L
L
L
L
C2
7
3
2
5
4
8
+V
6
1
C1
OUTPUT
COM
24 VDC
L
3.3 - 27 VDC
+V
Internal Module Circuitry
Optical Isolator
+
Equivalent Output Circuit
+
* Zener Diode Power Dissipation: 200 mW
*
0
Surrounding Temperature (°C/°F)
32
10
50
20
68
30
85
40
104
50
122
55 °C
131
°F
2
4
6
8
Points
Output Module Temperature Derating Chart
0
ZIPLink Pre-Wired PLC Connection
Cables and Modules for CLICK PLC
11-pin connector cable
ZL-C0-CBL11 (0.5 m length)
ZL-C0-CBL11-1 (1.0 m length)
ZL-C0-CBL11-2 (2.0 m length)
Wiring Diagram
ZL-RTB20
20-pin feed-through
connector module
CLICK PLC Hardware User Manual, 6th Edition, Rev. G – C0-USER-M
2–121
Chapter 2: Specifications
