AutomationDirect CLICK Series User Manual

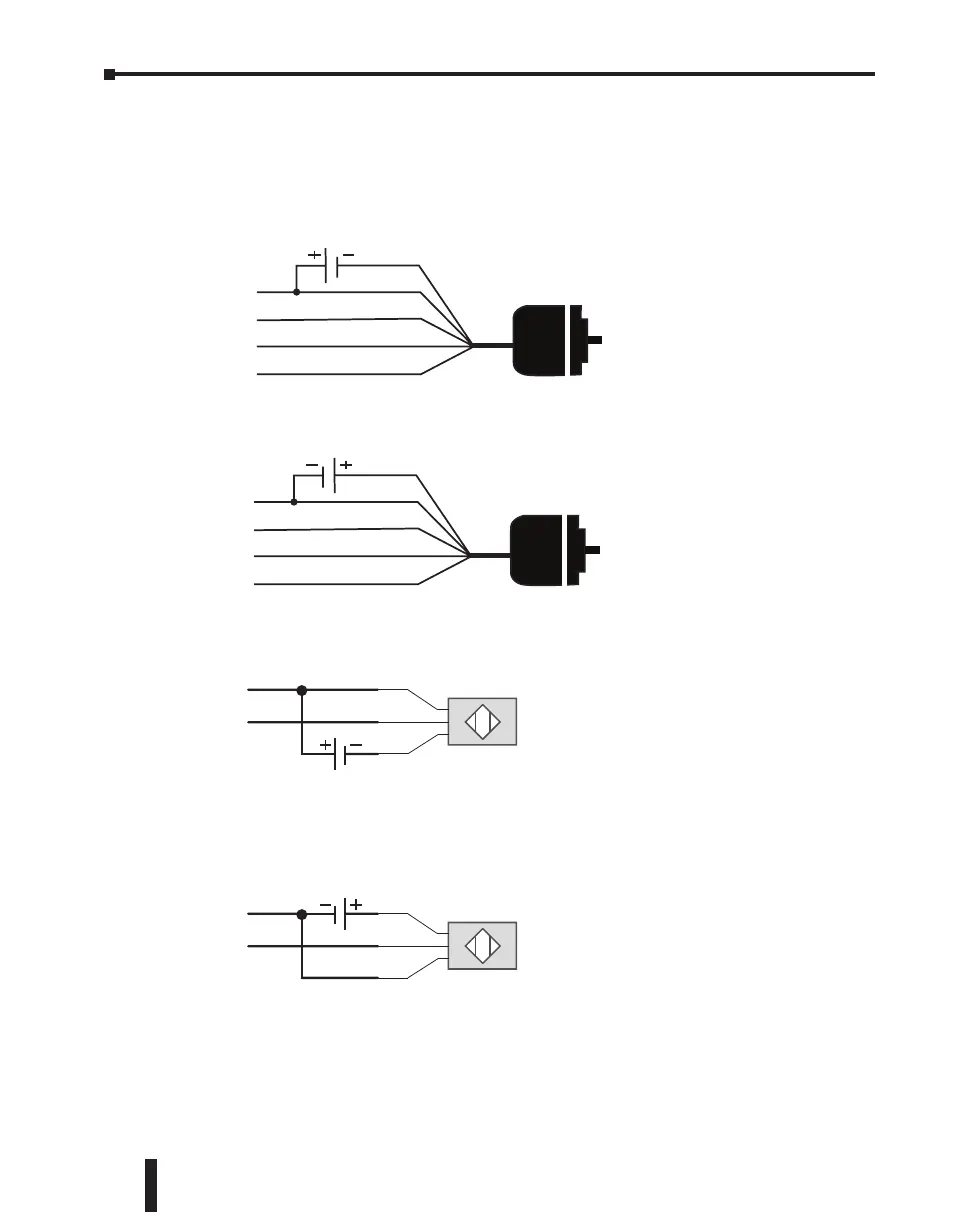

Wiring Examples High Speed Inputs
Quadrature with Reset (Z-Pulse):
Sourcing Encoder
0V
C1
X1
X2
X3
Power
OUT A
OUT B
OUT Z
Sinking Encoder (Open Collector)
0V
C1
X1
X2
X3
Power
OUT A
OUT B
OUT Z
NPN Sensor (Sinking)
C1
X1
PNP Sensor (Sourcing)
C1
X1
3-Wire Sensors
CLICK PLC Hardware User Manual, 5th Edition, Rev. F – C0-USER-M
3–46
Chapter 3: Installation and Wiring
