C-4: Com Port 2 Setup (ASCII)
Before you set up the communication ports you must connect the PC with the CLICK
programming software to the CLICK PLC Port 1 using a D2-DSCBL or EA-MG-PGM-CBL
programming cable. Refer to Chapter 1: Getting Started for step-by-step instructions for this

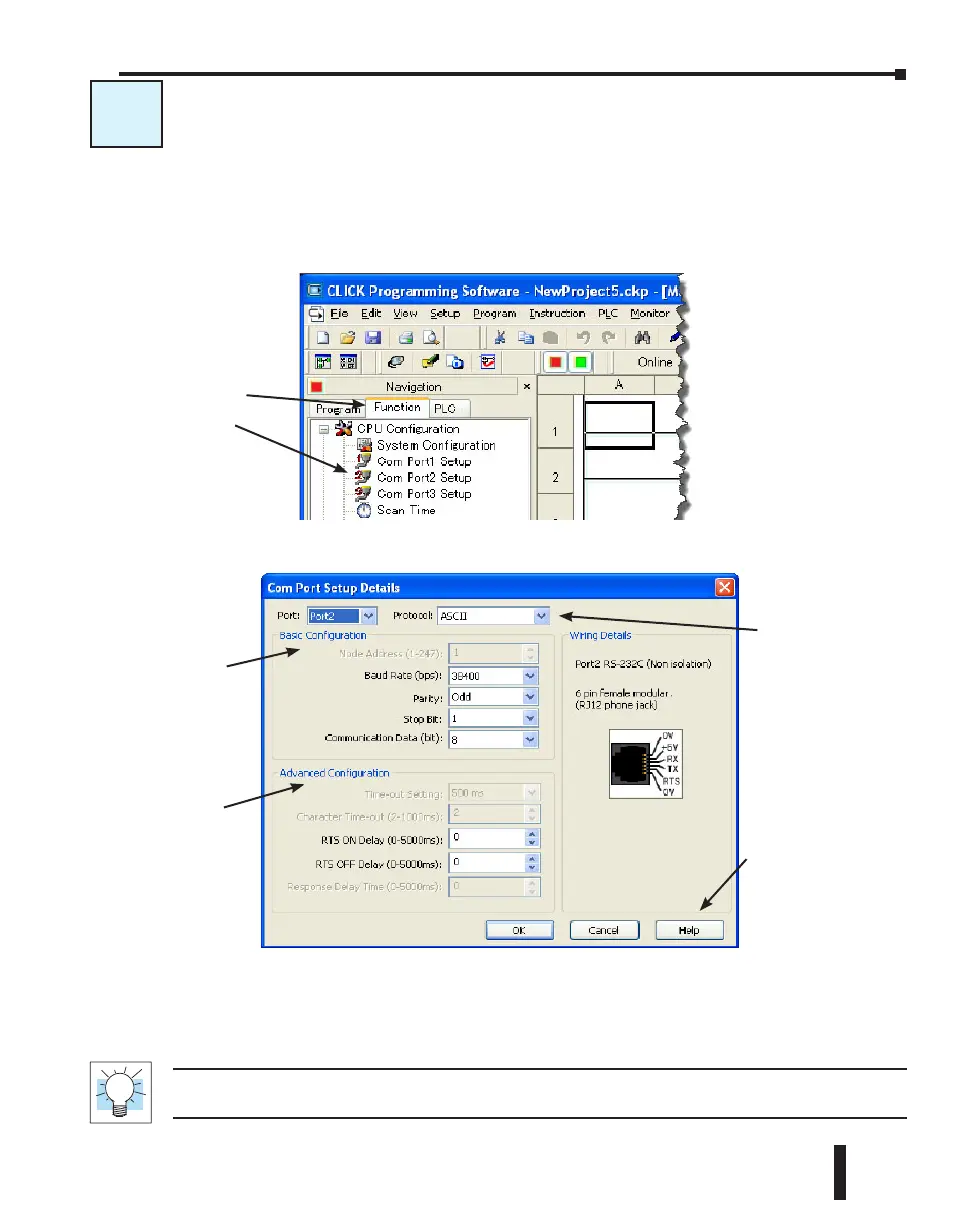

connection. Once the PC and programming software are online with the CLICK PLC, click
the Function tab located in the Navigation window and double click Com Port2 Setup as
shown below.
The Com Port Setup Details dialog box will come into view as shown below.
Find the Basic Configuration section in the dialog box and set up the parameters to match the
device connected to Port 2. The dialog box also has a section named Advanced Configuration.
You may need to make adjustments to these parameters to overcome communication errors
which may occur.
TIP: The communication port settings are saved in the project file. The project must be transferred to the
CLICK PLC in order for any port setting changes to take effect.
C-4
Select the Function
tab, then double click
Com Port2 Setup.
Set up the
parameters to match
the device connected
to Port 2.
Make any
adjustments here
to eliminate com
errors.
Select ASCII.
Click the Help button
for Com Port Setup
Details online help.
CLICK PLC Hardware User Manual, 6th Edition, Rev. F – C0-USER-M
4–23
Chapter 4: PLC Communications
