Power Supply

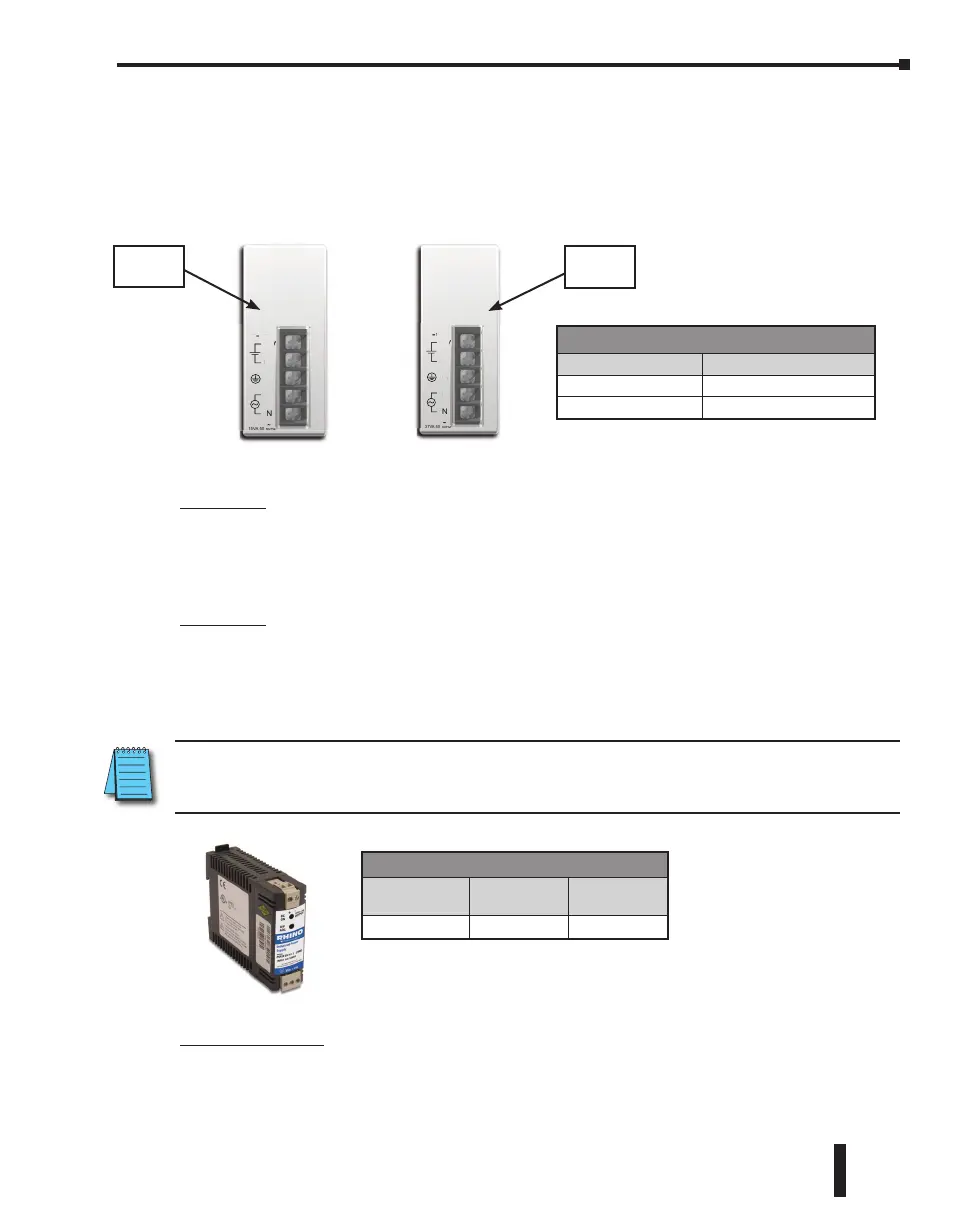

Two types of 24VDC power supplies are available for the CLICK PLC family. They are
designed to attach to the left side of the CLICK PLC, creating a compact footprint. They
are identical except for the output current rating. The 24VDC power is wired from the DC
output terminals of the power supply to a removable power terminal block located on the
bottom of the CLICK PLC unit.
C0-00AC
The C0-00AC is a low-cost solution for applications requiring only minimal I/O and power
consumption. This power supply will not support a fully-populated CLICK PLC system
with all possible I/O module combinations.
C0-01AC
The C0-01AC is designed to support a fully-populated CLICK PLC system with all possible
I/O module combinations with no concerns of exceeding the power budget.
Please refer to the Power Supply Specifications section later in this chapter for specification
details.
NOTE: It is not mandatory to use one of the above CLICK power supplies for the CLICK PLC system. A properly-sized
and rated 24VDC power supply, such as some of those offered by Automationdirect.com, can also be used to power a
CLICK PLC system.
PSP24-DC12-1
With this DC-DC converter you can operate the CLICK PLC with 12VDC input power.
To select a power supply to use with your CLICK PLC system, you need to consider the
total PLC system’s power budget. Please refer to the Power Budget section of this chapter for
details.
24V
0V
L
N
G
15VA 50-60Hz
100-240V
INPUT
OUTPUT
24V 0.5A
C0-00AC
2
4
V
V
V
V
V
V
V
V
V
V
V
V
V
0V
L
N
G
15VA50
-
60Hz
100-240
V
INPUT
O
UTPU
T
24V 0.5A
24V
0V
L
N
G
37VA 50-60Hz
100-240V
INPUT
OUTPUT
24V 1.3A
C0-01AC
2
4
V
V
V
V
V
V
V
V
V
V
V
V
V
0V
L
N
G
37VA50
-
60Hz
100-240
V
INPUT
O
UTPU
T
24V
1
.3
A
C0-00AC
0.5 A
C0-01AC
1.3 A
12 VDC-to-24VDC Converter
Part Number
Input
Voltage
Output
Current
PSP24-DC12-1
9.5–18 VDC 1.0 A @ 24VDC
CLICK 24VDC Power Supply Ratings
Part Number Output Current
C0-00AC
0.5 A
C0-01AC
1.3 A
CLICK PLC Hardware User Manual, 6th Edition, Rev. G – C0-USER-M
2–13
